Here you will find all available parts and drawings of the 'Bosch 3600HB6000 ( FONTUS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

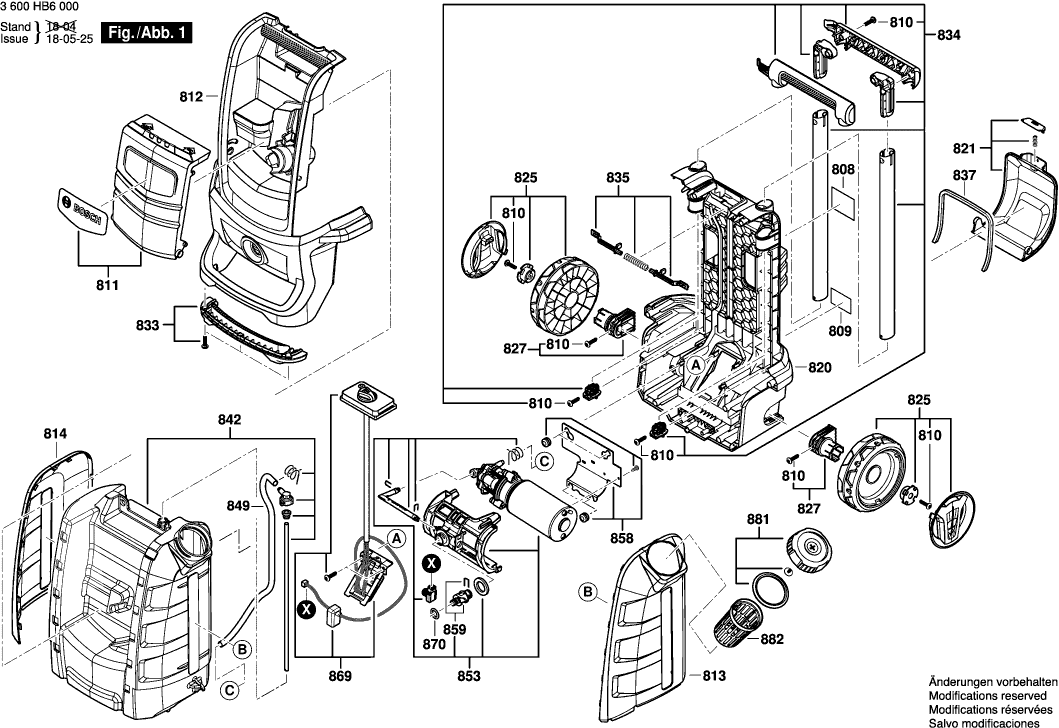

Technical drawing of model Bosch 3600HB6000 ( FONTUS )
Spare parts list of model Bosch 3600HB6000 ( FONTUS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Battery Pack PBA 18V 2,5Ah W-B 45Wh | ||||
| 91 | 1607A350RU | 73.72 | 89.20 | |
| Charger GB AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225967 | 67.25 | 81.37 | |
| Charger EU AL 18V-20 230V 2A | ||||
| 653 | 2607226517 | 26.84 | 32.48 | |
| Nameplate | ||||
| 808 | F016F05313 | 1.94 | 2.35 | |
| Warning Label | ||||
| 809 | F016F05312 | 1.94 | 2.35 | |
| Torx SH cap screw | ||||
| 810 | F016F04810 | 0.83 | 1.00 | |
| front cover | ||||
| 811 | F016F05288 | 5.33 | 6.45 | |
| front cover | ||||
| 812 | F016F05305 | 18.19 | 22.01 | |
| Side Panel | ||||
| 813 | F016F05299 | 3.31 | 4.01 | |
| Side Panel | ||||
| 814 | F016F05300 | 3.31 | 4.01 | |
| Housing part | ||||
| 820 | F016F05307 | 23.75 | 28.74 | |
| Battery Cover | ||||
| 821 | F016F05293 | 1.94 | 2.35 | |
| Wheel Set | ||||
| 825 | F016F05294 | 11.88 | 14.37 | |
| Axle | ||||
| 827 | F016F05295 | 2.24 | 2.71 | |
| Auxiliary Handle | ||||
| 833 | F016F05306 | 2.24 | 2.71 | |
| Handle | ||||
| 834 | F016F05290 | 23.75 | 28.74 | |
| Catch Slide | ||||
| 835 | F016F05291 | 1.94 | 2.35 | |
| Seal Strip | ||||
| 837 | F016F05292 | 2.71 | 3.28 | |
| Tank | ||||
| 842 | F016F05303 | 36.85 | 44.59 | |
| Pressure Hose | ||||
| 849 | F016F05304 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 853 | F016F05296 | |||
| Motor Plate | ||||
| 858 | F016F05298 | 7.58 | 9.17 | |
| Male Hose Coupling | ||||
| 859 | F016F05297 | 1.18 | 1.43 | |
| Electronic Assembly | ||||
| 869 | F016F05289 | 91.56 | 110.79 | |
| O-Ring | ||||
| 870 | F016F05311 | 0.83 | 1.00 | |
| Trigger | ||||
| 871 | F016F05310 | 13.93 | 16.86 | |
| Nozzle | ||||
| 880 | F016F05638 | 10.73 | 12.98 | |
| Sealing cap | ||||
| 881 | F016F05301 | 3.31 | 4.01 | |
| Water filter | ||||
| 882 | F016F05302 | 2.24 | 2.71 | |
| High-Pressure Hose | ||||
| 883 | F016F05308 | 18.19 | 22.01 | |
| Cleaning Brush | ||||
| 887 | F016F05309 | 9.53 | 11.53 | |
