Here you will find all available parts and drawings of the 'Bosch 3602D94408 (EXACTION12-700WK)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

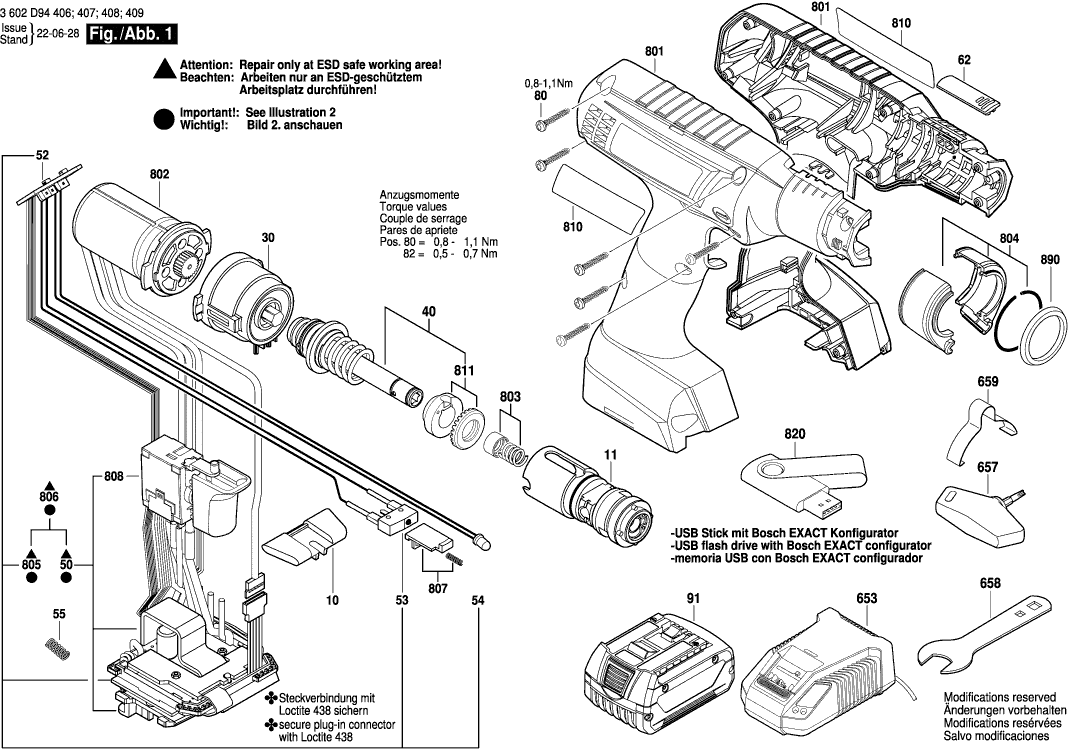

Technical drawing of model Bosch 3602D94408 (EXACTION12-700WK)
Spare parts list of model Bosch 3602D94408 (EXACTION12-700WK)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch Slide | ||||
| 10 | 3601099004 | 2.86 | 3.46 | |
| Angle Flange | ||||
| 11 | 3609202B07 | 136.48 | 165.14 | |
| Planetary Gear Train | ||||
| 30 | 3607030492 | 146.07 | 176.74 | |
| Assembly kit | ||||
| 40 | 3607031567 | 244.89 | 296.32 | |
| Electronic Module | ||||
| 50 | 1600A036XZ | 173.95 | 210.48 | |
| Indicator Plate | ||||
| 52 | 1607233516 | 13.13 | 15.89 | |
| Microswitch | ||||
| 53 | 1607502627 | 43.12 | 52.18 | |
| Light-Emitting-Diode | ||||
| 54 | 1607502626 | 16.79 | 20.32 | |
| Compression Spring | ||||
| 55 | 1609280477 | 1.49 | 1.80 | |
| Pusher | ||||
| 62 | 3601923030 | 2.86 | 3.46 | |
| Torx Oval-Head Screw | ||||
| 80 | 2603490018 | 1.00 | 1.21 | |
| Battery Pack BBS MR 18V, 4,0Ah, 47 S | ||||
| 91 | 2607336815 | 110.30 | 133.46 | |
| Battery Pack | ||||
| 91 | 1607A350M0 | 110.30 | 133.46 | |
| Battery Pack | ||||
| 91 | 1607A350MA | 82.63 | 99.98 | |
| ACCUPAKKET | ||||
| 91 | 1607A350BG | 82.63 | 99.98 | |
| Battery Pack | ||||
| 91 | 1617S020T1 | 80.26 | 97.11 | |
| Charger | ||||
| 653 | 2607225923 | 136.48 | 165.14 | |
| Charger | ||||
| 653 | 2607225321 | 64.67 | 78.25 | |
| Screwdriver | ||||
| 657 | 3607950027 | 14.94 | 18.08 | |
| Single-Head Eng. Wrench | ||||
| 658 | 3601376007 | 9.67 | 11.70 | |
| Suspension Loop | ||||
| 659 | 3601923024 | 10.90 | 13.19 | |
| Housing Assembly | ||||
| 801 | 3607031811 | 98.18 | 118.80 | |
| Motor assembly | ||||
| 802 | 3607031794 | 396.32 | 479.55 | |
| Sleeve assembly | ||||
| 803 | 3607031758 | 39.14 | 47.36 | |
| Led-Holder | ||||
| 804 | 3607031759 | 52.45 | 63.46 | |
| Electronics Module | ||||
| 805 | 3607031902 | 173.95 | 210.48 | |
| drive electronics | ||||
| 806 | 3607031903 | 352.50 | 426.52 | |
| Switching Element | ||||
| 807 | 3607031762 | 14.94 | 18.08 | |
| Switch | ||||
| 808 | 3607031884 | 23.90 | 28.92 | |
| Set Of Plates | ||||
| 810 | 16070312CF | 23.90 | 28.92 | |
| Setting Ring | ||||
| 811 | 1600A007U6 | 27.81 | 33.65 | |
| usb stick | ||||
| 820 | 3607031931 | 47.53 | 57.51 | |
| Adapter Line | ||||
| 881 | 1607000CM1 | 39.14 | 47.36 | |
| Adapter Line | ||||
| 882 | 1607000CM0 | 41.30 | 49.97 | |
| Parts Set 5 PCE., ORANGE | ||||
| 890 | 3600106031 | 23.90 | 28.92 | |
| Parts Set 5 PCE,. GREY | ||||
| 890 | 3600106032 | 21.30 | 25.77 | |
| Parts Set 5 PCE,. LIGHT BLUE | ||||
| 890 | 3600106029 | 21.30 | 25.77 | |
| Parts Set 5 PCE,. LIGHT GREEN | ||||
| 890 | 3600106030 | 21.30 | 25.77 | |
| Parts Set 5 PCE., BLACK | ||||
| 890 | 3600106027 | 21.30 | 25.77 | |
| Parts Set 5 PCE., RED | ||||
| 890 | 3600106028 | 18.94 | 22.92 | |
| Parts Set 5 PCE,. WHITE | ||||
| 890 | 3600106033 | 18.94 | 22.92 | |
