Here you will find all available parts and drawings of the 'Bosch 3602D96401 ( EXACT12V-3-1100 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

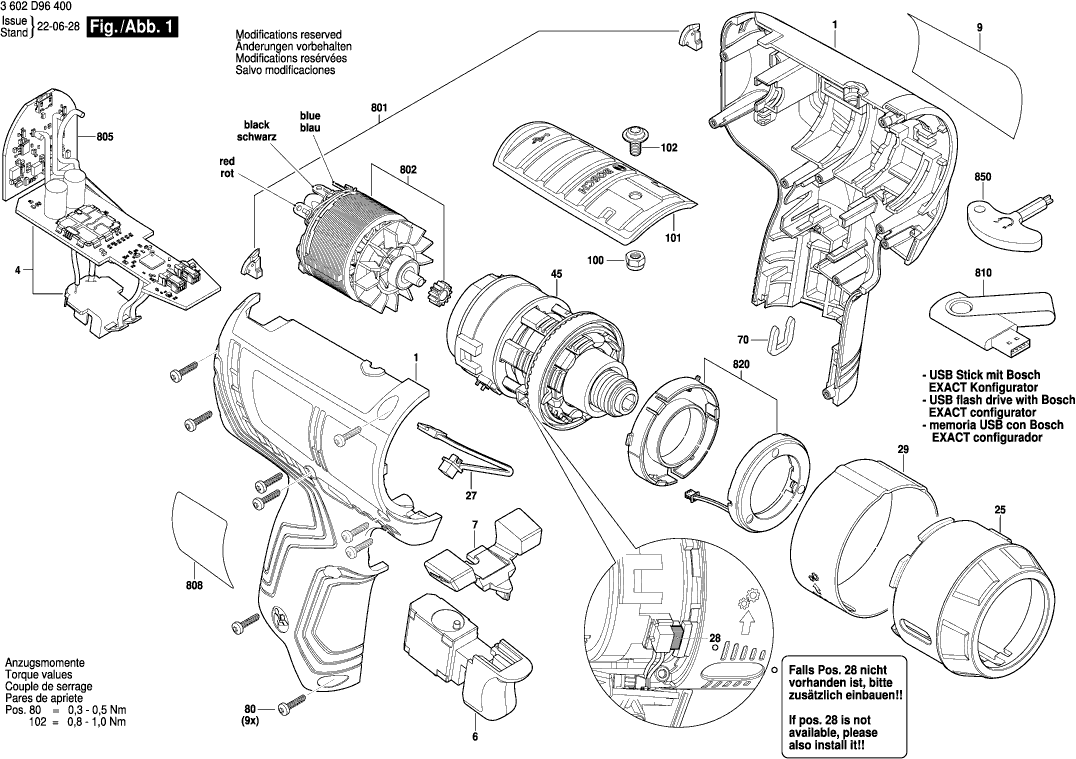

Technical drawing of model Bosch 3602D96401 ( EXACT12V-3-1100 )
Spare parts list of model Bosch 3602D96401 ( EXACT12V-3-1100 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 3605105053 | 11.88 | 14.37 | |
| Electronic Module | ||||
| 4 | 1607503925 | 60.65 | 73.39 | |
| Switch | ||||
| 6 | 2607202388 | 8.45 | 10.22 | |
| Switch Slide | ||||
| 7 | 3601099006 | 1.70 | 2.06 | |
| Manufacturer's nameplate EXACT 12V-3-1100 | ||||
| 9 | 160111C3JD | 1.94 | 2.35 | |
| Gear cover | ||||
| 25 | 3605105056 | 4.10 | 4.96 | |
| Photoelec. Light Barrier | ||||
| 27 | 1607503928 | 5.33 | 6.45 | |
| Foam Rubber | ||||
| 28 | 1607503944 | 0.83 | 1.00 | |
| Identification Ring rot | ||||
| 29 | 3601106062 | 2.71 | 3.28 | |
| Planetary Gear Train | ||||
| 45 | 3607030495 | 33.45 | 40.47 | |
| Clip | ||||
| 70 | 2609110537 | 1.18 | 1.43 | |
| Screw | ||||
| 80 | 2609110883 | 1.70 | 2.06 | |
| Nut | ||||
| 100 | 2609110835 | 1.18 | 1.43 | |
| Housing Cover | ||||
| 101 | 3605105055 | 2.24 | 2.71 | |
| Screw | ||||
| 102 | 1600A023EF | 2.71 | 3.28 | |
| Light Conductor | ||||
| 801 | 1600A027SP | 11.88 | 14.37 | |
| Motor assembly | ||||
| 802 | 3607031924 | 67.25 | 81.37 | |
| Electronics Module | ||||
| 805 | 3607031926 | 91.56 | 110.79 | |
| Nameplate EXACT12V-3-1100 | ||||
| 808 | 1600A020G1 | 5.83 | 7.05 | |
| usb stick | ||||
| 810 | 3607031931 | 40.61 | 49.14 | |
| LED lighting | ||||
| 820 | 3607031929 | 20.42 | 24.71 | |
| Screwdriver | ||||
| 850 | 3607950027 | 11.88 | 14.37 | |
