Here you will find all available parts and drawings of the 'Bosch 3603J76901 (EasySander12)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

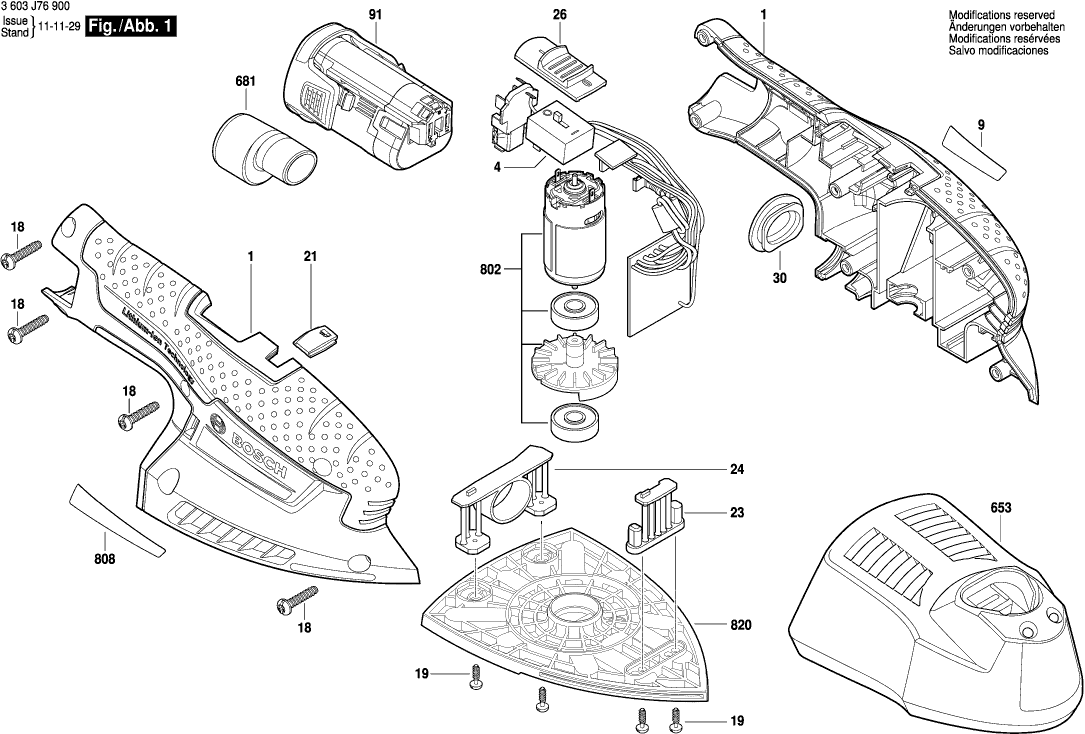

Technical drawing of model Bosch 3603J76901 (EasySander12)
Spare parts list of model Bosch 3603J76901 (EasySander12)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609005280 | 16.79 | 20.32 | |
| Electronic Assembly | ||||
| 4 | 2609005281 | 58.03 | 70.22 | |
| Manufacturer's nameplate EasySander 12 | ||||
| 9 | 160111C1ST | 2.40 | 2.90 | |
| Screw | ||||
| 18 | 2603490022 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 19 | 2603490017 | 2.08 | 2.52 | |
| Lens | ||||
| 21 | 2609005282 | 1.49 | 1.80 | |
| Oscillation Insert | ||||
| 23 | 2609001421 | 5.81 | 7.03 | |
| Vibration Foot | ||||
| 24 | 2609005283 | 6.73 | 8.14 | |
| Slider | ||||
| 26 | 2609005284 | 1.49 | 1.80 | |
| Rubber Plug | ||||
| 30 | 2609005286 | 2.08 | 2.52 | |
| Battery Pack PBA 12V, 2,0Ah O-A | ||||
| 91 | 1607A3507N | 67.98 | 82.26 | |
| Battery Pack | ||||
| 91 | 1607A3515X | 21.30 | 25.77 | |
| Fast Charger | ||||
| 653 | 2607225515 | 52.45 | 63.46 | |
| Fast Charger | ||||
| 653 | 2607226187 | 31.42 | 38.02 | |
| Fitting | ||||
| 681 | 2609005888 | 3.44 | 4.16 | |
| DC motor 10,8V | ||||
| 802 | 2609005287 | 27.81 | 33.65 | |
| Nameplate | ||||
| 808 | 160111A2E7 | 2.40 | 2.90 | |
| Sander Plate | ||||
| 820 | 2609001937 | 12.82 | 15.51 | |
