Here you will find all available parts and drawings of the 'Bosch 3603JD8104 (EasyImpact18V-40)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

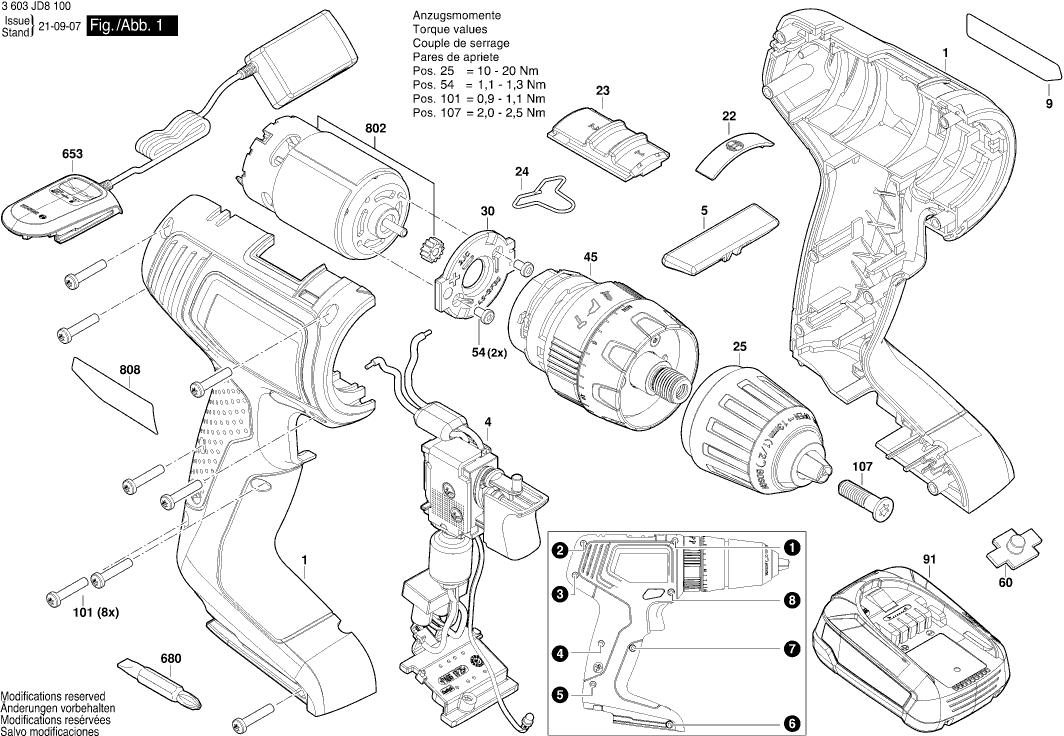

Technical drawing of model Bosch 3603JD8104 (EasyImpact18V-40)
Spare parts list of model Bosch 3603JD8104 (EasyImpact18V-40)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 16058066HM | 12.82 | 15.51 | |
| Switch Assembly | ||||
| 4 | 2607202525 | 27.81 | 33.65 | |
| Lever | ||||
| 5 | 2609004264 | 2.08 | 2.52 | |
| Manufacturer's nameplate EasyImpact 18V-40 | ||||
| 9 | 160111C4D6 | 2.40 | 2.90 | |
| Symbol plate | ||||
| 22 | 1600A01AS2 | 2.40 | 2.90 | |
| Switch Slide | ||||
| 23 | 1600A021Z3 | 1.00 | 1.21 | |
| Spring | ||||
| 24 | 2609004496 | 1.49 | 1.80 | |
| Keyless Chuck | ||||
| 25 | 2609112190 | 17.60 | 21.30 | |
| Flange | ||||
| 30 | 1600A022JC | 2.08 | 2.52 | |
| Planetary Gear Train | ||||
| 45 | 1600A025MC | 27.81 | 33.65 | |
| Torx SH cap screw | ||||
| 54 | 2603414048 | 1.00 | 1.21 | |
| Lens | ||||
| 60 | 1600A022JD | 1.00 | 1.21 | |
| Battery Pack | ||||
| 91 | 1607A350RU | 88.83 | 107.48 | |
| Battery Pack | ||||
| 91 | 2607337211 | 88.83 | 107.48 | |
| Battery Pack | ||||
| 91 | 1607A350RP | 80.26 | 97.11 | |
| Battery Pack PBA 18V/1,5 Ah W-A | ||||
| 91 | 1607A350JM | 64.67 | 78.25 | |
| Battery Pack | ||||
| 91 | 1607A351C3 | 52.45 | 63.46 | |
| Torx Flat-Head Screw | ||||
| 101 | 2609110201 | 2.08 | 2.52 | |
| Countersunk-Head Screw | ||||
| 107 | 2603421229 | 1.49 | 1.80 | |
| Carrying Case | ||||
| 650 | 1600A013NM | 34.82 | 42.13 | |
| Charger | ||||
| 653 | 1617S021T5 | 34.82 | 42.13 | |
| Charger | ||||
| 653 | 2607226517 | 31.42 | 38.02 | |
| Charger UK AL 18V-20 230V 2A | ||||
| 653 | 2607226519 | 31.42 | 38.02 | |
| Fast Charger JP AL1810CV | ||||
| 653 | 2607226395 | 29.75 | 36.00 | |
| Screwdriver Bit | ||||
| 680 | 2609160063 | 3.44 | 4.16 | |
| DC motor | ||||
| 802 | 1607000EU1 | 23.90 | 28.92 | |
| Nameplate | ||||
| 808 | 160111AA8E | 2.40 | 2.90 | |
