Here you will find all available parts and drawings of the 'Bosch 3600H47D01 (EasyHedgeCut60)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

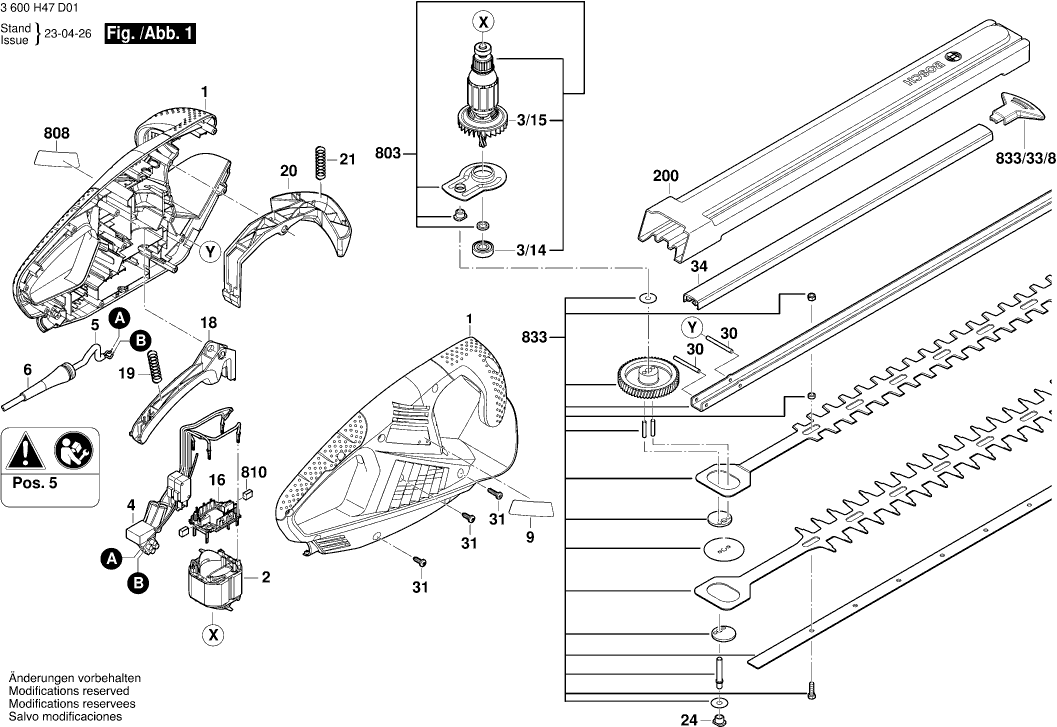

Technical drawing of model Bosch 3600H47D01 (EasyHedgeCut60)
Spare parts list of model Bosch 3600H47D01 (EasyHedgeCut60)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 160580667J | 16.79 | 20.32 | |
| Field 220-240V | ||||
| 2 | 2609004030 | 14.94 | 18.08 | |
| groove ball bearing | ||||
| 3/14 | 2600905072 | 6.73 | 8.14 | |
| Fan | ||||
| 3/15 | 2609001188 | 2.08 | 2.52 | |
| Cable Wiring Set | ||||
| 4 | 1600A02U2W | 13.13 | 15.89 | |
| Power supply cord EU 0,46m 2 x 1,0mm H05 VV-F | ||||
| 5 | 2604460182 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C4YK | 2.40 | 2.90 | |
| Brush Holder | ||||
| 16 | 2609004214 | 10.90 | 13.19 | |
| Switch Segment | ||||
| 18 | 2609004011 | 3.44 | 4.16 | |
| Compression Spring | ||||
| 19 | 2604610028 | 1.49 | 1.80 | |
| Switch Segment | ||||
| 20 | 2609005919 | 2.86 | 3.46 | |
| Compression Spring | ||||
| 21 | 2604610028 | 1.49 | 1.80 | |
| Bushing | ||||
| 24 | 2609004018 | 1.49 | 1.80 | |
| Straight Pin | ||||
| 30 | 2609002714 | 1.49 | 1.80 | |
| Screw | ||||
| 31 | 2603490022 | 1.00 | 1.21 | |
| Cover | ||||
| 34 | 16055002A6 | 6.73 | 8.14 | |
| Knife Guard | ||||
| 200 | 1600A02FD6 | 9.67 | 11.70 | |
| Armature 220-240V | ||||
| 803 | 2609004699 | 43.12 | 52.18 | |
| Nameplate | ||||
| 808 | 160111A9L7 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 2609005200 | 6.73 | 8.14 | |
| Blade | ||||
| 833 | 1607000F2X | 58.03 | 70.22 | |
| Protector | ||||
| 833/33/8 | 1600A023E4 | 2.40 | 2.90 | |
