Here you will find all available parts and drawings of the 'Bosch 3600H49M00 ( EASYHEDGECUT18V-52-13 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

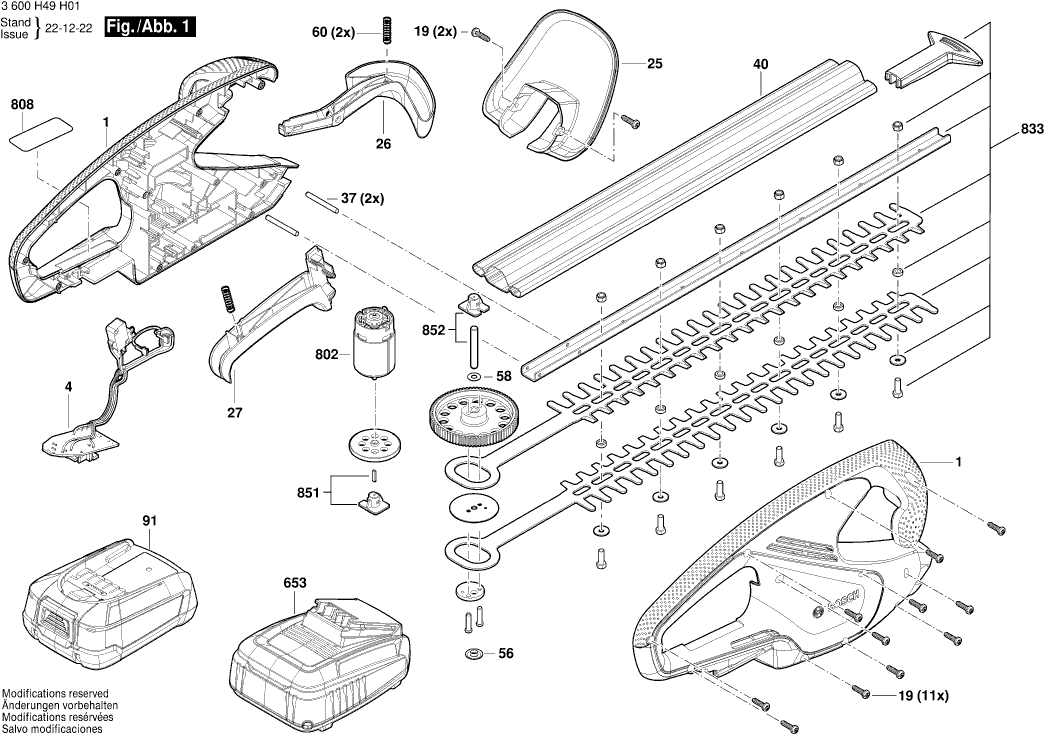

Technical drawing of model Bosch 3600H49M00 ( EASYHEDGECUT18V-52-13 )
Spare parts list of model Bosch 3600H49M00 ( EASYHEDGECUT18V-52-13 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 160580667U | 13.93 | 16.86 | |
| Electronic Module | ||||
| 4 | 1600A01BW9 | 40.61 | 49.14 | |
| Screw 4x16 | ||||
| 19 | 2603490022 | 0.83 | 1.00 | |
| Protective Shield | ||||
| 25 | 2609006151 | 2.71 | 3.28 | |
| Switch Segment | ||||
| 26 | 2609006152 | 1.70 | 2.06 | |
| Switch Segment | ||||
| 27 | 2609006153 | 1.70 | 2.06 | |
| Straight Pin | ||||
| 37 | 2609002714 | 1.18 | 1.43 | |
| Knife Guard | ||||
| 40 | 2609005512 | 10.73 | 12.98 | |
| Spacer Tube | ||||
| 56 | 2609006721 | 0.83 | 1.00 | |
| Shim | ||||
| 58 | 2600100040 | 1.18 | 1.43 | |
| Compression Spring | ||||
| 60 | 2604610028 | 1.18 | 1.43 | |
| Battery Pack PBA 18V 2,0 Ah W-B | ||||
| 91 | 2607337211 | 73.72 | 89.20 | |
| Charger GB AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225967 | 67.25 | 81.37 | |
| Charger AUS AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225969 | 67.25 | 81.37 | |
| Charger AUS AL 1815 CV 240/14,4-18V 3h | ||||
| 653 | 2607226081 | 44.82 | 54.23 | |
| Fast Charger EU AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225965 | 44.82 | 54.23 | |
| Fast Charger EU AL 1810 CV 230/14,4-18V 1A | ||||
| 653 | 2607226385 | 29.75 | 36.00 | |
| Fast Charger GB AL 1810 CV 230/14,4-18V 1A | ||||
| 653 | 2607226387 | 29.75 | 36.00 | |
| Fast Charger AUS AL1810CV | ||||
| 653 | 2607226389 | 29.75 | 36.00 | |
| Charger EU AL 18V-20 230V 2A | ||||
| 653 | 2607226517 | 26.84 | 32.48 | |
| DC motor | ||||
| 802 | 2609006402 | 18.19 | 22.01 | |
| Nameplate | ||||
| 808 | 160111A9RW | 1.94 | 2.35 | |
| Set of knives 68,4 cm | ||||
| 833 | 1600A02TH0 | 33.45 | 40.47 | |
| Support Pin | ||||
| 851 | 2609006400 | 6.54 | 7.91 | |
| Axle | ||||
| 852 | 2609006401 | 7.58 | 9.17 | |
