Here you will find all available parts and drawings of the 'Bosch 3600HC1A00 (EasyGrassCut18-230)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

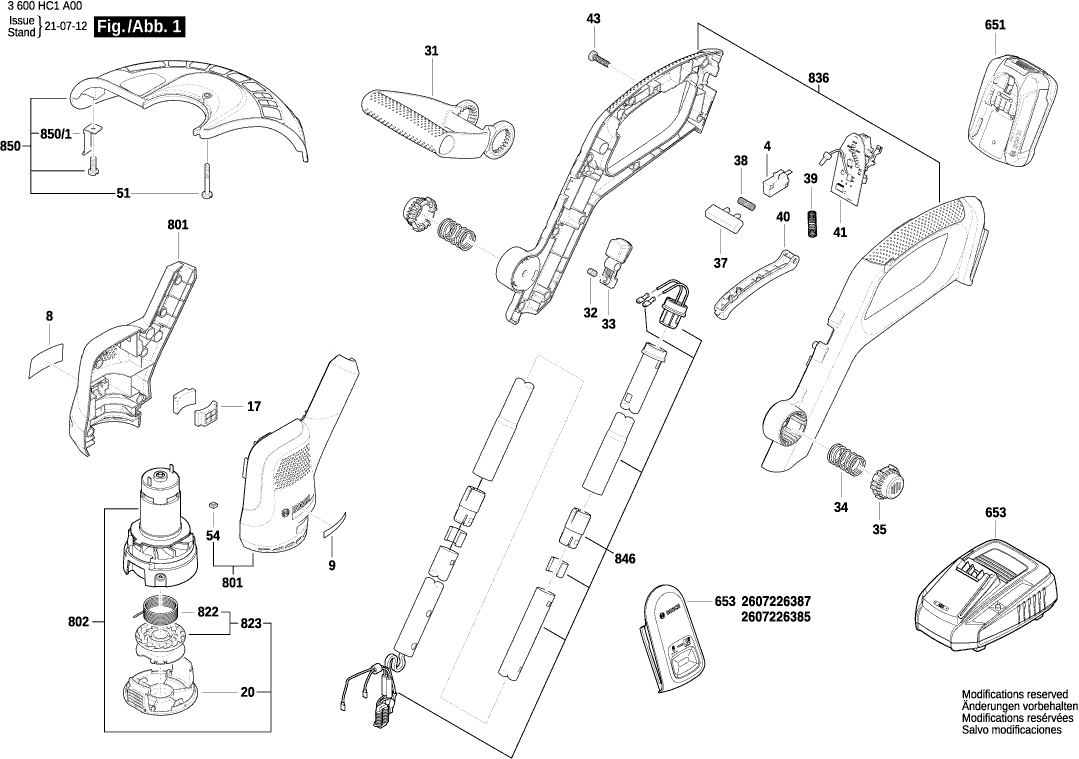

Technical drawing of model Bosch 3600HC1A00 (EasyGrassCut18-230)
Spare parts list of model Bosch 3600HC1A00 (EasyGrassCut18-230)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch | ||||
| 4 | F016F05315 | 2.08 | 2.52 | |
| Nameplate | ||||
| 8 | F016F05335 | 2.40 | 2.90 | |
| Manufacturer's nameplate | ||||
| 9 | F016F05316 | 2.40 | 2.90 | |
| Rubber Pad | ||||
| 17 | F016F05319 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 20 | F016F05320 | |||
| Auxiliary Handle | ||||
| 31 | F016F05321 | 2.86 | 3.46 | |
| Spring | ||||
| 32 | F016F05322 | 1.00 | 1.21 | |
| Button | ||||
| 33 | F016F05323 | 1.00 | 1.21 | |
| Button Spring | ||||
| 34 | F016F05324 | 1.00 | 1.21 | |
| Button | ||||
| 35 | F016F05325 | 1.00 | 1.21 | |
| Button | ||||
| 37 | F016F05326 | 1.00 | 1.21 | |
| Spring | ||||
| 38 | F016F05327 | 1.00 | 1.21 | |
| Spring | ||||
| 39 | F016F05328 | 1.00 | 1.21 | |
| Trigger | ||||
| 40 | F016F05329 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 41 | F016F05330 | |||
| Screw | ||||
| 43 | F016F05331 | 1.00 | 1.21 | |
| Screw | ||||
| 51 | F016F05332 | 1.00 | 1.21 | |
| Square Nut | ||||
| 54 | F016F05317 | 1.00 | 1.21 | |
| Battery Pack | ||||
| 651 | 2607337211 | 88.83 | 107.48 | |
| Charger | ||||
| 653 | 2607225967 | 80.26 | 97.11 | |
| Fast Charger | ||||
| 653 | 2607226387 | 34.82 | 42.13 | |
| Fast Charger EU AL 1810 CV 230/14,4-18V 1A | ||||
| 653 | 2607226385 | 33.33 | 40.33 | |
| Charger | ||||
| 653 | 2607226517 | 31.42 | 38.02 | |
| Motor Housing | ||||
| 801 | F016F05806 | 10.90 | 13.19 | |
| Motor Housing | ||||
| 801 | F016F05333 | 9.67 | 11.70 | |
| Motor assembly | ||||
| 802 | F016F05334 | 29.00 | 35.09 | |
| Plastic Cable | ||||
| 822 | F016F05340 | 2.00 | 2.42 | |
| Cutting line cartridge | ||||
| 823 | F016F05341 | 2.08 | 2.52 | |
| Handle | ||||
| 836 | F016F05342 | 9.67 | 11.70 | |
| Pipe Frame | ||||
| 846 | F016F05343 | 21.30 | 25.77 | |
| Protective Guard | ||||
| 850 | F016F05570 | 10.90 | 13.19 | |
| Protective Guard | ||||
| 850 | F016F05344 | 6.73 | 8.14 | |
| Blade | ||||
| 850/1 | F016F05569 | 4.18 | 5.06 | |
