Here you will find all available parts and drawings of the 'Bosch 3603JD8003 ( EASYDRILL18V-40 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

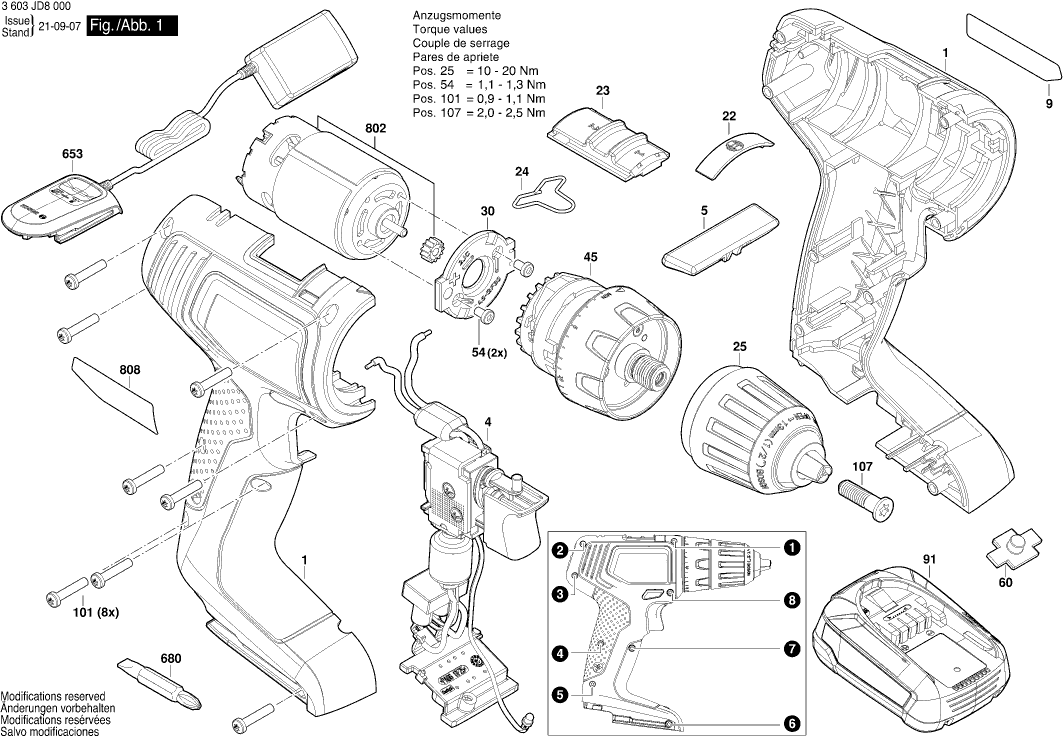

Technical drawing of model Bosch 3603JD8003 ( EASYDRILL18V-40 )
Spare parts list of model Bosch 3603JD8003 ( EASYDRILL18V-40 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 1605806699 | 11.88 | 14.37 | |
| Switch Assembly | ||||
| 4 | 2607202525 | 23.75 | 28.74 | |
| Lever | ||||
| 5 | 2609004264 | 1.70 | 2.06 | |
| Manufacturer's nameplate EasyDrill 18V-38 | ||||
| 9 | 160111C4PY | 1.94 | 2.35 | |
| Symbol plate | ||||
| 22 | 1600A01AS2 | 1.94 | 2.35 | |
| Switch Slide | ||||
| 23 | 1600A021Z3 | 0.83 | 1.00 | |
| Spring | ||||
| 24 | 2609004496 | 1.18 | 1.43 | |
| Keyless Chuck | ||||
| 25 | 1600A0103S | 15.71 | 19.01 | |
| Flange | ||||
| 30 | 1600A022JC | 1.70 | 2.06 | |
| Planetary Gear Train | ||||
| 45 | 1600A023Z3 | 18.19 | 22.01 | |
| Torx SH cap screw M3x5-8.8-Z | ||||
| 54 | 2603414048 | 0.83 | 1.00 | |
| Lens | ||||
| 60 | 1600A022JD | 0.83 | 1.00 | |
| Battery Pack PBA 18V 2,5Ah W-B 45Wh | ||||
| 91 | 1607A350RU | 73.72 | 89.20 | |
| Battery Pack PBA 18V 2,0 Ah W-B | ||||
| 91 | 2607337211 | 73.72 | 89.20 | |
| Battery Pack PBA 18V 2,0Ah W-B | ||||
| 91 | 1607A350RP | 67.25 | 81.37 | |
| Battery Pack Korea PBA 18V 2,0Ah | ||||
| 91 | 1607A3501D | 67.25 | 81.37 | |
| Battery Pack PBA 18V/1,5 Ah W-A | ||||
| 91 | 1607A350JM | 55.25 | 66.85 | |
| Torx Flat-Head Screw 3x16 | ||||
| 101 | 2609110201 | 1.70 | 2.06 | |
| Countersunk-Head Screw M6x23 LEFTHAND THREADS | ||||
| 107 | 2603421229 | 1.18 | 1.43 | |
| Carrying Case S | ||||
| 650 | 1600A013NM | 29.75 | 36.00 | |
| Fast Charger AUS AL1810CV | ||||
| 653 | 2607226389 | 29.75 | 36.00 | |
| Charger EU AL 18V-20 230V 2A | ||||
| 653 | 2607226517 | 26.84 | 32.48 | |
| Charger UK AL 18V-20 230V 2A | ||||
| 653 | 2607226519 | 26.84 | 32.48 | |
| Screwdriver Bit | ||||
| 680 | 2609160063 | 2.71 | 3.28 | |
| DC motor | ||||
| 802 | 1607000EU1 | 20.42 | 24.71 | |
| Nameplate | ||||
| 808 | 160111AA95 | 0.83 | 1.00 | |
