Here you will find all available parts and drawings of the 'Bosch 3603JC9000 ( EASYCURVSANDER12 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

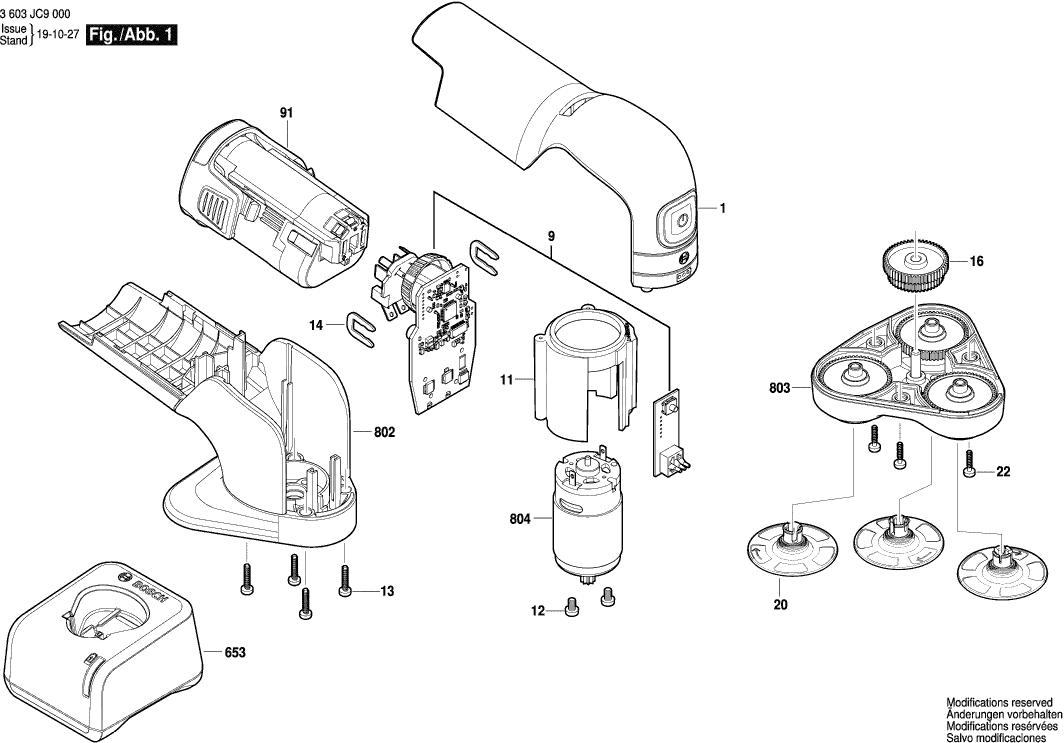

Technical drawing of model Bosch 3603JC9000 ( EASYCURVSANDER12 )
Spare parts list of model Bosch 3603JC9000 ( EASYCURVSANDER12 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 1600A018UZ | 4.10 | 4.96 | |
| Electronic Assembly | ||||
| 9 | 1600A01C0H | 36.85 | 44.59 | |
| Air Guide Plate | ||||
| 11 | 1600A01AK7 | 1.18 | 1.43 | |
| Torx SH cap screw M3x5-8.8-Z | ||||
| 12 | 2603414048 | 0.83 | 1.00 | |
| Screw | ||||
| 13 | 2609110361 | 0.83 | 1.00 | |
| Clip | ||||
| 14 | 2609110838 | 0.83 | 1.00 | |
| Gear | ||||
| 16 | 1600A0177E | 2.71 | 3.28 | |
| Sander Plate | ||||
| 20 | 1600A01C8W | 1.94 | 2.35 | |
| Torx Oval-Head Screw | ||||
| 22 | 2609003106 | 0.83 | 1.00 | |
| Battery Pack on 3s 1p G3 | ||||
| 91 | 1607A3503L | 63.33 | 76.63 | |
| Battery Pack PBA 12V, 2,0Ah O-A | ||||
| 91 | 1607A3507N | 60.65 | 73.39 | |
| Fast Charger EU GAL 12V-20 230/3,6-12V 2A | ||||
| 653 | 2607226187 | 26.84 | 32.48 | |
| Fast Charger GB GAL 12V-20 230/3,6-12V 2A | ||||
| 653 | 2607226189 | 26.84 | 32.48 | |
| Dust Extraction | ||||
| 685 | 1600A01L4A | 4.10 | 4.96 | |
| Dust Extraction | ||||
| 686 | 1600A01AK8 | 1.94 | 2.35 | |
| Housing | ||||
| 802 | 16058065XH | 23.75 | 28.74 | |
| Gear Housing | ||||
| 803 | 1607000E00 | 44.82 | 54.23 | |
| DC motor | ||||
| 804 | 1607022684 | 26.84 | 32.48 | |
