Here you will find all available parts and drawings of the 'Bosch 0603167403 (CSB550RET)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

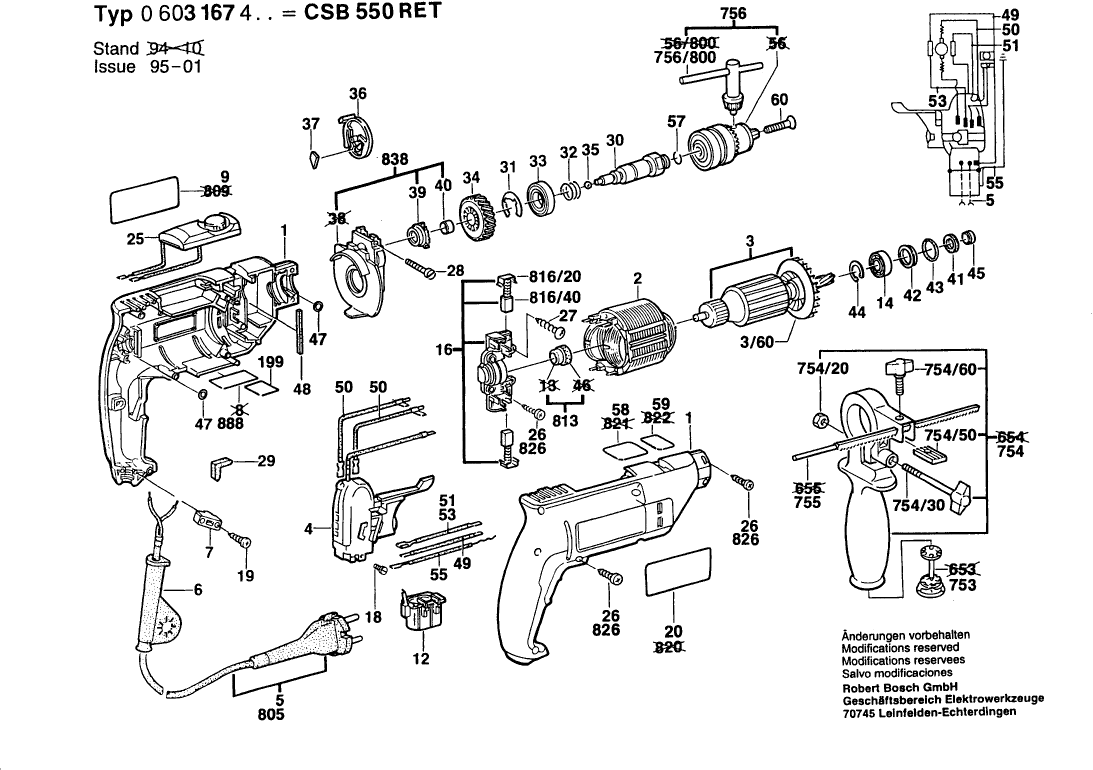

Technical drawing of model Bosch 0603167403 (CSB550RET)
Spare parts list of model Bosch 0603167403 (CSB550RET)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104298 | 18.94 | 22.92 | |
| Field | ||||
| 2 | 2604220430 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 3 | 2604011076 | |||
| Fan | ||||
| 3/60 | 2606610029 | 2.40 | 2.90 | |
| On-Off Switch | ||||
| 4 | 2607200237 | 88.83 | 107.48 | |
| Grommet | ||||
| 6 | 2600707059 | 3.44 | 4.16 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Sticker | ||||
| 9 | 2601118061 | 1.73 | 2.09 | |
| Sticker | ||||
| 9 | 2601110958 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 12 | 2607329114 | |||
| groove ball bearing | ||||
| 14 | 2600905039 | 11.37 | 13.76 | |
| No longer available, no replacement | ||||
| 16 | 2605807060 | |||
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 19 | 2910611019 | 2.86 | 3.46 | |
| Reference Plate | ||||
| 20 | 2601118668 | 2.86 | 3.46 | |
| Sticker | ||||
| 20 | 2601110958 | 1.00 | 1.21 | |
| Torque Control | ||||
| 25 | 2607233005 | 13.13 | 15.89 | |
| Tapping Screw | ||||
| 26 | 2912401420 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 27 | 2603490018 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 28 | 2910021134 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 29 | 2601022000 | |||
| No longer available, no replacement | ||||
| 30 | 2606135033 | |||
| Locking washer | ||||
| 31 | 2600118006 | 2.08 | 2.52 | |
| Locking washer | ||||
| 31 | 2600118007 | 1.49 | 1.80 | |
| Locking washer | ||||
| 31 | 2600118001 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 32 | 2604617000 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 33 | 1900905122 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 34 | 2606320051 | |||
| Ball | ||||
| 35 | 1903230010 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 36 | 2601990001 | |||
| Pressure Plate | ||||
| 37 | 2601074003 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 39 | 2606490056 | |||
| Needle-Roller Bearing | ||||
| 40 | 2600917003 | 2.86 | 3.46 | |
| Felt Washer | ||||
| 41 | 2600108000 | 1.49 | 1.80 | |
| Cupped Washer | ||||
| 42 | 2600500014 | 1.49 | 1.80 | |
| O-Ring | ||||
| 43 | 1900210117 | 3.44 | 4.16 | |
| Spring retaining ring | ||||
| 44 | 2916660008 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 45 | 2600400008 | |||
| No longer available, no replacement | ||||
| 47 | 2600210036 | |||
| Felt Strip | ||||
| 48 | 2601005011 | 2.08 | 2.52 | |
| Connecting Cable | ||||
| 49 | 2604448001 | 2.08 | 2.52 | |
| Connecting Cable | ||||
| 50 | 2604448147 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 51 | 2604448096 | |||
| Connecting Cable | ||||
| 53 | 2604448034 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 55 | 2604448170 | |||
| Retaining ring | ||||
| 57 | 2604601004 | 1.49 | 1.80 | |
| Sticker | ||||
| 58 | 2601110842 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 59 | 2601110580 | |||
| No longer available, no replacement | ||||
| 60 | 2603421215 | |||
| No longer available, no replacement | ||||
| 199 | 1601110265 | |||
| No longer available, no replacement | ||||
| 753 | 2607000122 | |||
| Auxiliary Handle | ||||
| 754 | 1619PB4323 | 9.67 | 11.70 | |
| Hex Nut | ||||
| 754/20 | 2915011007 | 1.00 | 1.21 | |
| Wing Screw | ||||
| 754/30 | 1613480007 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 754/50 | 2608040014 | |||
| Wing Screw | ||||
| 754/60 | 1613480008 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 755 | 1613001005 | |||
| Chuck | ||||
| 756 | 1608571069 | 23.90 | 28.92 | |
| Chuck Wrench | ||||
| 756/800 | 2607950007 | 6.73 | 8.14 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| No longer available, no replacement | ||||
| 813 | 2600917902 | |||
| Ratchet Cap | ||||
| 816/20 | 2601322013 | 1.49 | 1.80 | |
| Carbon-Brush Set | ||||
| 816/40 | 2604321905 | 9.67 | 11.70 | |
| Tapping Screw | ||||
| 826 | 2912401020 | 1.90 | 2.30 | |
| Bearing Bracket | ||||
| 838 | 2605807915 | 18.94 | 22.92 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 2.40 | 2.90 | |
