Here you will find all available parts and drawings of the 'Bosch 0603146203 (CSB450-2)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

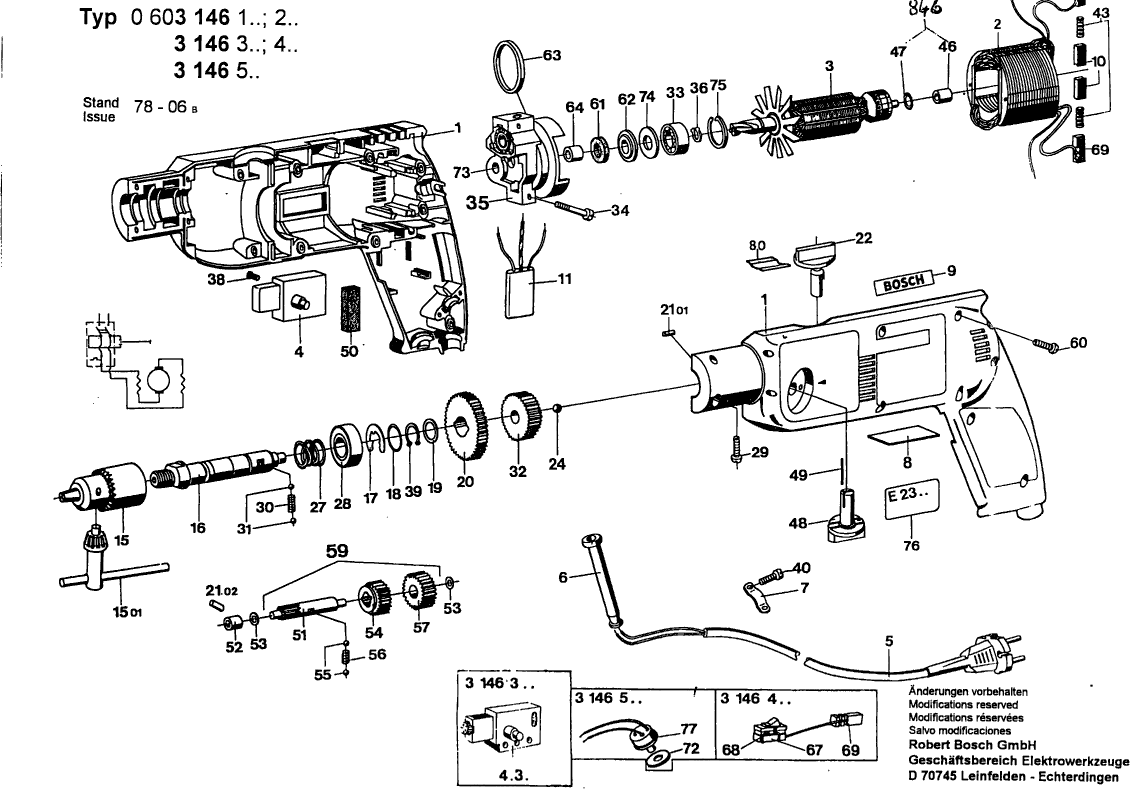

Technical drawing of model Bosch 0603146203 (CSB450-2)
Spare parts list of model Bosch 0603146203 (CSB450-2)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 2605104936 | |||
| No longer available, no replacement | ||||
| 2 | 2604220347 | |||
| No longer available, no replacement | ||||
| 3 | 2604010493 | |||
| On-Off Switch | ||||
| 4 | 1609202464 | 23.90 | 28.92 | |
| Power supply cord | ||||
| 5 | 1607000386 | 18.94 | 22.92 | |
| Grommet | ||||
| 6 | 1600703016 | 1.00 | 1.21 | |
| Fastening Clamp | ||||
| 7 | 1601302014 | 2.18 | 2.64 | |
| Component | ||||
| 8 | 2601105052 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 1601110013 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 10 | 1604321900 | |||
| No longer available, no replacement | ||||
| 11 | 2607329069 | |||
| No longer available, no replacement | ||||
| 15 | 1608571005 | |||
| Chuck Wrench | ||||
| 15/01 | 2607950007 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 16 | 2603122024 | |||
| Locking washer | ||||
| 17 | 2600118006 | 2.08 | 2.52 | |
| Locking washer | ||||
| 17 | 2600118002 | 1.49 | 1.80 | |
| Locking washer | ||||
| 17 | 2600118003 | 1.00 | 1.21 | |
| Locking washer | ||||
| 17 | 2600118001 | 1.00 | 1.21 | |
| O-Ring | ||||
| 18 | 1900210012 | 1.00 | 1.21 | |
| Shim | ||||
| 19 | 2600101515 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 20 | 2606317014 | |||
| Control Shaft | ||||
| 22 | 2603120004 | 1.00 | 1.21 | |
| Ball | ||||
| 24 | 1903230009 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 27 | 2604617000 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 28 | 1900905102 | |||
| Tapping Screw | ||||
| 29 | 2910211007 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 29 | 2603490018 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 30 | 2604610007 | 1.49 | 1.80 | |
| Ball | ||||
| 31 | 1903230007 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 32 | 2606317015 | |||
| No longer available, no replacement | ||||
| 33 | 2600905003 | |||
| Socket head cap screw | ||||
| 34 | 2603410031 | 1.00 | 1.21 | |
| Bearing Bracket | ||||
| 35 | 2605807902 | 31.42 | 38.02 | |
| Spring retaining ring | ||||
| 36 | 2916640006 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 38 | 2603410023 | 1.49 | 1.80 | |
| Retaining clip | ||||
| 39 | 2916650006 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 40 | 2910211017 | |||
| No longer available, no replacement | ||||
| 43 | 2604610009 | |||
| Needle bearing | ||||
| 46 | 1600910012 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 47 | 1610210014 | |||
| No longer available, no replacement | ||||
| 48 | 2603120008 | |||
| No longer available, no replacement | ||||
| 49 | 2603101002 | |||
| No longer available, no replacement | ||||
| 50 | 1602381001 | |||
| No longer available, no replacement | ||||
| 51 | 2606309003 | |||
| Needle-Roller Bearing | ||||
| 52 | 2600914010 | 2.86 | 3.46 | |
| Shim | ||||
| 53 | 2600100570 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 54 | 2606320009 | |||
| Ball | ||||
| 55 | 1903230006 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 56 | 2604611002 | |||
| Cylindrical Gear | ||||
| 57 | 2606320006 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 59 | 2606309900 | |||
| Tapping Screw | ||||
| 60 | 2910211019 | 1.00 | 1.21 | |
| Felt Washer | ||||
| 61 | 2600108002 | 1.90 | 2.30 | |
| Cupped Washer | ||||
| 62 | 2600500002 | 1.49 | 1.80 | |
| O-Ring | ||||
| 63 | 2600210026 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 64 | 2600400008 | |||
| No longer available, no replacement | ||||
| 67 | 2607320008 | |||
| No longer available, no replacement | ||||
| 68 | 2607200904 | |||
| No longer available, no replacement | ||||
| 69 | 2604337000 | |||
| Sealing disk | ||||
| 72 | 1600109006 | 1.00 | 1.21 | |
| Shim | ||||
| 74 | 2600150005 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 75 | 2916660008 | 2.08 | 2.52 | |
| No information available, not orderable | ||||
| 76 | 2601110122 | |||
| Thermoswitch | ||||
| 77 | 1607202900 | 16.79 | 20.32 | |
| No information available, not orderable | ||||
| 80 | 2601302008 | |||
