Here you will find all available parts and drawings of the 'Bosch 0603166103 ( CSB1000-2RET )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

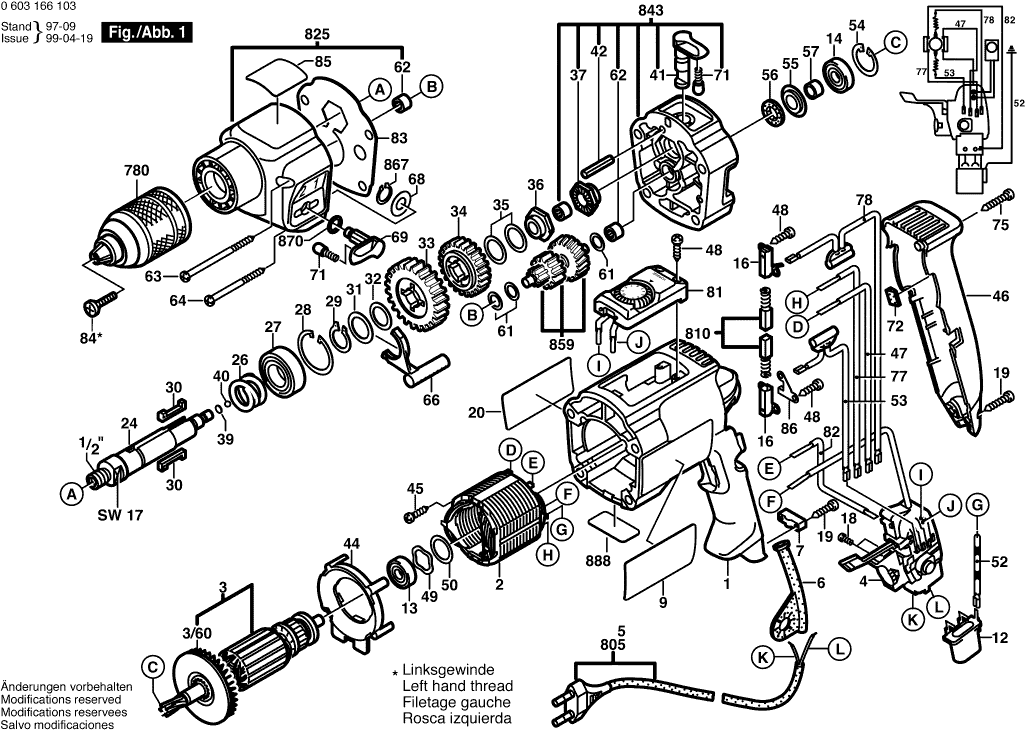

Technical drawing of model Bosch 0603166103 ( CSB1000-2RET )

Spare parts list of model Bosch 0603166103 ( CSB1000-2RET )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing GREEN
1 2605104296 15.71 19.01
No longer available, no replacement
2 2604220436
Armature 230-240V
3 2604010865 55.25 66.85
Fan
3/60 2606610049 1.70 2.06
No longer available, no replacement
4 2607200238
Grommet Ø6,5-Ø6,9x95 MM
6 2600703012 2.24 2.71
Cable Clip
7 2601035001 1.18 1.43
No longer available, no replacement
9 2601119418
No longer available, no replacement
12 2607329114
Ball Bearing 7x22x7
13 1900905018 13.93 16.86
groove ball bearing
14 2600905050 9.53 11.53
Brush Holder
16 2604337016 0.83 1.00
Socket head cap screw M3x6,5-4.8
18 2603410001 1.18 1.43
Screw 4x16
19 2603490022 0.83 1.00
No longer available, no replacement
20 2601119414
No longer available, no replacement
24 2606135013
Compression Spring
26 2604616002 1.18 1.43
groove ball bearing 17x35x10
27 1900905163 8.45 10.22
Spring retaining ring DIN 472 35x1,5 MM
28 2916660014 1.18 1.43
Spring retaining ring DIN 471 17x1 MM
29 2916650008 1.18 1.43
Flat Key
30 2602300028 4.10 4.96
Retaining Washer
31 2600101671 1.18 1.43
Shim 1,0 MM
32 2600101515 0.83 1.00
Cylindrical Gear Z=48
33 2606317045 8.45 10.22
Cylindrical Gear Z=36
34 2606317037 23.75 28.74
Shim 0,5 MM
35 2600101616 2.24 2.71
Shim 0,3 MM
35 2600101617 1.18 1.43
Catch Disk
36 2600190052 5.33 6.45
No longer available, no replacement
37 2600190057
Shim washer 1,35 MM
39 2600000030 1.18 1.43
Shim washer 0,2 MM
39 2600000012 0.83 1.00
Shim washer 0,5 MM
39 2600000014 0.83 1.00
Ball DIN 5401-5,5MM-III-ST
40 1903230010 0.83 1.00
Rotary Knob
41 2602026017 5.83 7.05
Slotted Spring Pin 4x30 MM DIN 7346
42 2917780105 0.83 1.00
No longer available, no replacement
44 2601328033
Tapping Screw
45 2603435086 1.18 1.43
Housing Cover BLACK
46 2605132025 5.83 7.05
Connecting Cable L = 123 MM WHITE
47 2604448145 1.18 1.43
Torx Oval-Head Screw 3x10
48 2603490017 1.70 2.06
Shim
49 2600150004 1.70 2.06
Shim washer 0,3 MM
50 2600101027 1.18 1.43
Shim washer 0,2 MM
50 2600101665 1.18 1.43
Shim washer 0,5 MM
50 2600101667 1.18 1.43
Earth Conductor
52 2604448103 0.83 1.00
Suppression Filter L=148 MM BLACK
53 2604465086 4.70 5.69
Spring retaining ring DIN 472-24x1,2 MM
54 2916660008 1.70 2.06
Cupped Washer
55 2600500002 1.18 1.43
Felt Washer
56 2600108077 1.18 1.43
Receptacle
57 2600400008 1.18 1.43
Shim 0,3 MM
61 2600100607 1.18 1.43
Needle-Roller Bearing Ø6 MM
62 2600914010 2.24 2.71
No longer available, no replacement
63 2603435070
No longer available, no replacement
64 2603435071
Adjusting Slide
66 2602033006 2.24 2.71
Shim washer
68 2600100618 0.83 1.00
No longer available, no replacement
69 2602026038
Ratchet Cap
71 2600590006 1.18 1.43
Insert
72 2601010049 1.18 1.43
Torx Oval-Head Screw 4x25
75 2603490024 1.18 1.43
No longer available, no replacement
77 2604448137
No longer available, no replacement
78 2604465087
Torque Control 230V
81 2607233006 26.84 32.48
Connecting Cable L=176 MM WHITE
82 2604448004 1.18 1.43
Gasket
83 2601073012 0.83 1.00
No longer available, no replacement
85 2601118187
Plate GREEN
86 2600034003 2.71 3.28
Auxiliary Handle
753 1619PB4323 7.58 9.17
Hex Nut DIN 934-M6-8-A
753/20 2915011007 0.83 1.00
Wing Screw M6x(15)55
753/30 1613480007 1.18 1.43
No longer available, no replacement
753/50 2608040014
Wing Screw M6x20 MM
753/60 1613480008 1.18 1.43
Diepteaanslag 210
754 2603001019 0.83 1.00
Keyless Chuck Ø 1,5-13 MM, 1/2"
780 2608572106 81.47 98.58
Power supply cord EU 2,65m 2 x 1,0mm H05 RN-F
805 1607000388 9.53 11.53
Carbon-Brush Set
810 2604321905 8.45 10.22
Gear Housing GREEN
825 2605806987 15.71 19.01
Intermediate Flange
843 2605700936 49.56 59.97
No longer available, no replacement
859 2606100914
Sticker DRILL/IMPACT DRILL
865 2601110076 1.18 1.43
Locking Washer DIN 6799-4-FSt
867 2916080007 1.94 2.35
Parts Set
870 2607010226 1.18 1.43
Nameplate
888 160111A3H3 1.94 2.35
