Here you will find all available parts and drawings of the 'Bosch F012CR0145 (CR18L)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

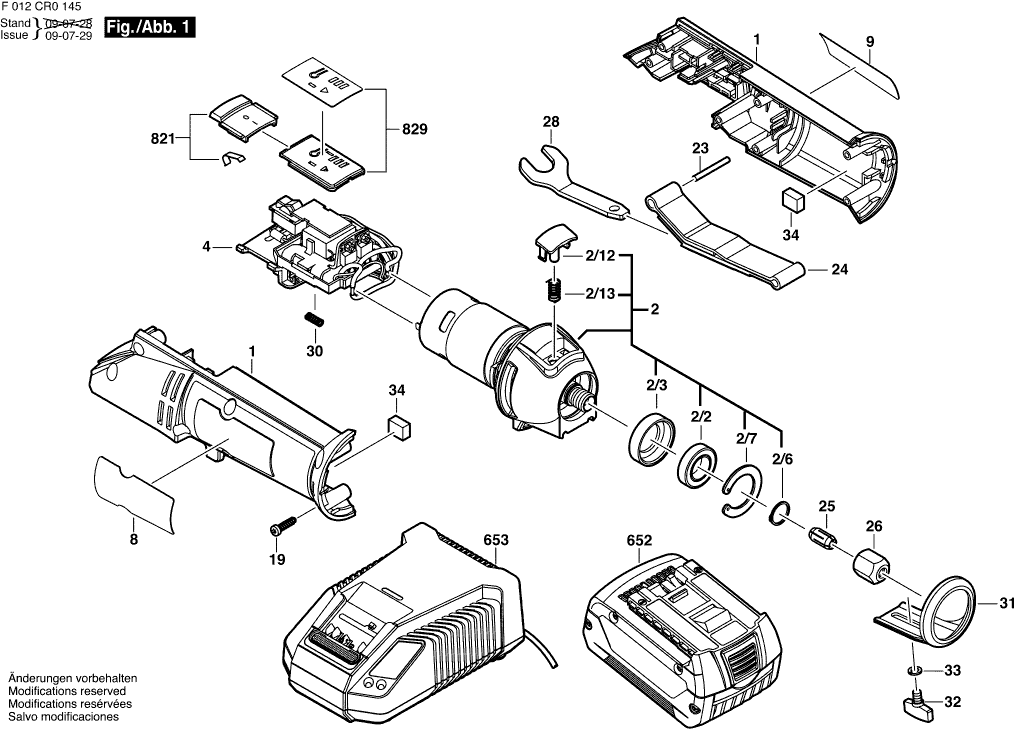

Technical drawing of model Bosch F012CR0145 (CR18L)
Spare parts list of model Bosch F012CR0145 (CR18L)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 2610955677 | 11.88 | 14.37 | |
| Assembly | ||||
| 2 | 2610955680 | 61.93 | 74.94 | |
| Locking Pin | ||||
| 2/12 | 2610955690 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 2/13 | 2610925587 | |||
| Bearing Ball | ||||
| 2/2 | 2610955699 | 2.71 | 3.28 | |
| Rubber Ring | ||||
| 2/3 | 2610955704 | 1.18 | 1.43 | |
| Retaining clip | ||||
| 2/6 | 2916650006 | 1.49 | 1.80 | |
| Clip | ||||
| 2/7 | 2610955702 | 1.18 | 1.43 | |
| Electronics Module | ||||
| 4 | 1607233343 | 75.38 | 91.21 | |
| Nameplate | ||||
| 8 | 2610006957 | 1.94 | 2.35 | |
| Label | ||||
| 9 | 2610955688 | 1.70 | 2.06 | |
| Cross Recessed-Head Screw | ||||
| 19 | 2615294035 | 1.49 | 1.80 | |
| Straight Pin | ||||
| 23 | 2610942819 | 1.00 | 1.21 | |
| Sliding Guide | ||||
| 24 | 2610956555 | 4.70 | 5.69 | |
| Collet 5/32" | ||||
| 25 | 2610924080 | 7.46 | 9.03 | |
| Nut | ||||
| 26 | 2610909203 | 7.46 | 9.03 | |
| Chuck Wrench | ||||
| 28 | 2610955706 | 1.94 | 2.35 | |
| Compression Spring | ||||
| 30 | 1609280477 | 1.49 | 1.80 | |
| Blade Guide | ||||
| 31 | 2610955695 | 7.58 | 9.17 | |
| Wing Screw | ||||
| 32 | 2610955700 | 1.00 | 1.21 | |
| Locking washer | ||||
| 33 | 2610949729 | 1.00 | 1.21 | |
| Pad | ||||
| 34 | 2610930071 | 1.00 | 1.21 | |
| Battery Pack | ||||
| 652 | 1607A350JR | 64.67 | 78.25 | |
| Battery Pack | ||||
| 652 | 1607A350BZ | 61.93 | 74.94 | |
| Fast Charger 10,8V-18V EU | ||||
| 653 | 2607225423 | 75.38 | 91.21 | |
| Fast Charger | ||||
| 653 | 2607225425 | 71.68 | 86.73 | |
| Fast Charger | ||||
| 653 | 2607226281 | 64.67 | 78.25 | |
| Switch Cover | ||||
| 821 | 2610006959 | 3.31 | 4.01 | |
| Light-Emitting-Diode | ||||
| 829 | 2610006960 | 6.54 | 7.91 | |
