Here you will find all available parts and drawings of the 'Bosch F016L80647 (CLASSICELECTRIC35S)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

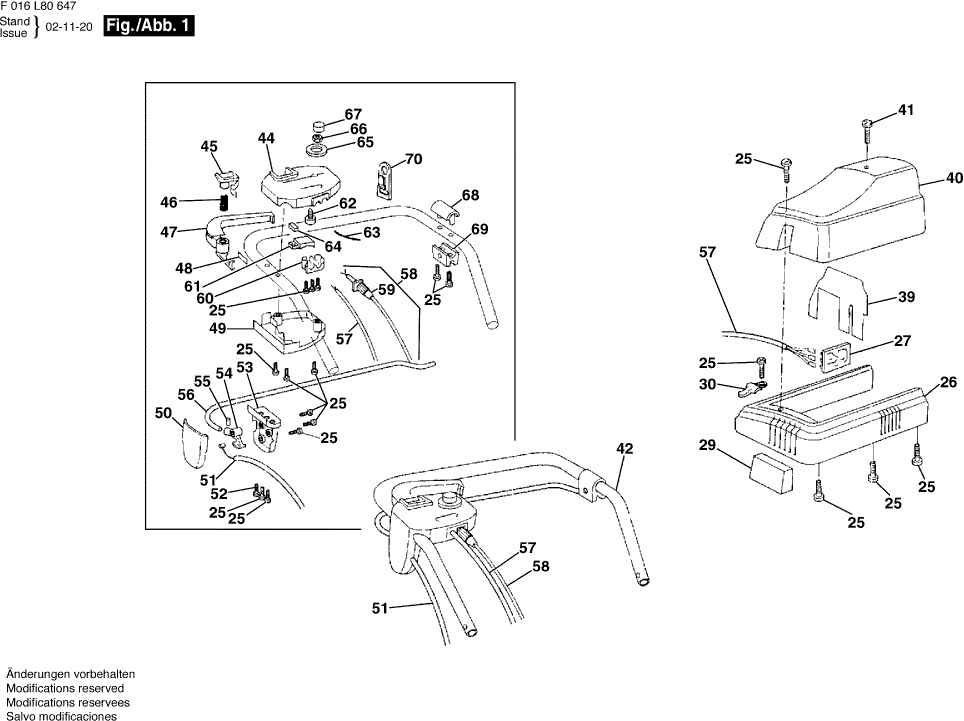

Technical drawing of model Bosch F016L80647 (CLASSICELECTRIC35S)
Spare parts list of model Bosch F016L80647 (CLASSICELECTRIC35S)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 2 | F016A58228 | |||
| No longer available, no replacement | ||||
| 3 | F016A75088 | |||
| Knob | ||||
| 4 | F016102363 | 10.73 | 12.98 | |
| Spring | ||||
| 5 | F016A57995 | 6.54 | 7.91 | |
| Spare Part | ||||
| 6 | F016S10370 | 73.72 | 89.20 | |
| Housing | ||||
| 6 | F016S50110 | 55.25 | 66.85 | |
| Spring | ||||
| 7 | F016A57820 | 1.32 | 1.60 | |
| Bushing | ||||
| 8 | F016A57675 | 1.94 | 2.35 | |
| Roller Carrier | ||||
| 9 | F016S50016 | 36.85 | 44.59 | |
| No longer available, no replacement | ||||
| 10 | F016L35457 | |||
| Spring Washer 5/16 SW SE | ||||
| 11 | F016L35307 | 1.00 | 1.21 | |
| Plain Washer 8,5 MM | ||||
| 12 | F016L35411 | 1.00 | 1.21 | |
| Shaft | ||||
| 13 | F016A57752 | 12.41 | 15.02 | |
| Roller | ||||
| 17 | F016L22149 | 4.10 | 4.96 | |
| Plastic Tubing | ||||
| 18 | F016A57836 | 2.71 | 3.28 | |
| Support Tube | ||||
| 19 | F016102798 | 29.75 | 36.00 | |
| Hex Screw WAS 170 | ||||
| 20 | F016W25213 | 1.94 | 2.35 | |
| Cap | ||||
| 21 | F016A57676 | 1.00 | 1.21 | |
| Pivot L/H | ||||
| 22 | F016A57748 | 1.00 | 1.21 | |
| Cassette | ||||
| 23 | F016102959 | 233.78 | 282.87 | |
| Protection cover LH | ||||
| 24 | F016A75397 | 36.85 | 44.59 | |
| Self-Cutting Screw | ||||
| 25 | F016T49429 | 1.00 | 1.21 | |
| Motor Hood | ||||
| 26 | F016A57630 | 11.88 | 14.37 | |
| Control Unit | ||||
| 27 | F016L57917 | 13.90 | 16.82 | |
| Catcher Container | ||||
| 28 | F016102210 | 55.25 | 66.85 | |
| Filter | ||||
| 29 | F016A57934 | 0.83 | 1.00 | |
| Cable Cleat | ||||
| 30 | F016T46305 | 1.49 | 1.80 | |
| Trunnion M 6x32 | ||||
| 31 | F016T49472 | 1.70 | 2.06 | |
| Handle | ||||
| 32 | F016A57922 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 33 | F016T48017 | |||
| Plain Washer | ||||
| 34 | F016T48727 | 2.40 | 2.90 | |
| Nut M6 | ||||
| 35 | F016L35329 | 1.49 | 1.80 | |
| Parts Set 14" | ||||
| 36 | F016103622 | 168.86 | 204.32 | |
| Handle | ||||
| 37 | F016103621 | 6.54 | 7.91 | |
| Cable Clip | ||||
| 38 | F016T49524 | 1.49 | 1.80 | |
| Housing | ||||
| 39 | F016A57892 | 1.18 | 1.43 | |
| Motor Hood | ||||
| 40 | F016A57631 | 7.58 | 9.17 | |
| Cross Recessed-Head Screw M5 | ||||
| 41 | F016A57756 | 1.00 | 1.21 | |
| Handle | ||||
| 42 | F016T49559 | 23.75 | 28.74 | |
| Switch Box | ||||
| 44 | F016T49844 | 1.70 | 2.06 | |
| Knob | ||||
| 45 | F016T49223 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 46 | F016T49226 | |||
| No longer available, no replacement | ||||
| 47 | F016L65676 | |||
| No longer available, no replacement | ||||
| 48 | F016T49845 | |||
| No information available, not orderable | ||||
| 49 | F016T49432 | |||
| Component | ||||
| 50 | F016L57924 | 2.71 | 3.28 | |
| Cable control | ||||
| 51 | F016A57920 | 10.73 | 12.98 | |
| Screw | ||||
| 52 | F016T56092 | 0.83 | 1.00 | |
| Housing Cover | ||||
| 53 | F016L57925 | 2.24 | 2.71 | |
| Control Bar | ||||
| 54 | F016T49507 | 2.71 | 3.28 | |
| Straight Pin | ||||
| 55 | F016T56145 | 1.00 | 1.21 | |
| Control Bar | ||||
| 56 | F016T49563 | 10.73 | 12.98 | |
| Connecting Cable | ||||
| 57 | F016A57921 | 4.10 | 4.96 | |
| Power supply cord GB 22m 2 x 0,75mm without plug | ||||
| 58 | F016104085 | 31.42 | 38.02 | |
| Grommet | ||||
| 59 | F016T44500 | 1.49 | 1.80 | |
| Cable Cleat | ||||
| 60 | F016T49636 | 1.49 | 1.80 | |
| Switch | ||||
| 61 | F016T49229 | 7.58 | 9.17 | |
| Compensator | ||||
| 62 | F016103843 | 15.71 | 19.01 | |
| Pulley | ||||
| 63 | F016T49582 | 13.93 | 16.86 | |
| Condenser | ||||
| 64 | F016L36952 | 1.00 | 1.21 | |
| Indicator Ring | ||||
| 65 | F016L37457 | 1.00 | 1.21 | |
| Nut | ||||
| 66 | F016T48221 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 67 | F016T49480 | |||
| Brush-Cover | ||||
| 68 | F016A57929 | 2.24 | 2.71 | |
| Housing Cover | ||||
| 69 | F016A57928 | 2.24 | 2.71 | |
| Strain-Relief Clamp | ||||
| 70 | F016L65387 | 8.35 | 10.10 | |
| Screw M6 | ||||
| 77 | F016A58229 | 0.83 | 1.00 | |
| Locking washer | ||||
| 80 | F016L35389 | 1.00 | 1.21 | |
| Hexagon-Socket Key | ||||
| 81 | F016A58230 | 1.00 | 1.21 | |
| Insert | ||||
| 82 | F016A58188 | 1.90 | 2.30 | |
| Cutter Cylinder | ||||
| 401 | F016102059 | 60.65 | 73.39 | |
| Bearing Housing | ||||
| 402 | F016A58249 | 6.54 | 7.91 | |
| Ball Bearing | ||||
| 403 | F016L02968 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 404 | F016T40266 | |||
| Spring | ||||
| 406 | F016T47205 | 1.70 | 2.06 | |
| Square Shaft | ||||
| 407 | F016T41057 | 1.70 | 2.06 | |
| Washer | ||||
| 408 | F016T49443 | 3.31 | 4.01 | |
| Adjusting Part | ||||
| 409 | F016A57669 | 2.24 | 2.71 | |
| Adjusting Screw | ||||
| 411 | F016A57713 | 1.94 | 2.35 | |
| Plate | ||||
| 412 | F016A57553 | 9.47 | 11.46 | |
| Lower Blade 14" | ||||
| 413 | F016101509 | 55.25 | 66.85 | |
| Lower Blade | ||||
| 414 | F016L23147 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 415 | F016L35316 | |||
| Screw 1/4 UNF X 1,3/4 HEX | ||||
| 416 | F016L08041 | 0.83 | 1.00 | |
| Nut 1/4 UNF | ||||
| 417 | F016L06954 | 0.83 | 1.00 | |
| Deflector Plate | ||||
| 418 | F016103770 | 20.39 | 24.67 | |
| No information available, not orderable | ||||
| 419 | F016T49288 | |||
| Handle | ||||
| 421 | F016102967 | 11.88 | 14.37 | |
| Side Frame | ||||
| 422 | F016A57554 | 18.19 | 22.01 | |
| Screw | ||||
| 424 | F016W25623 | 0.83 | 1.00 | |
| Pulley | ||||
| 428 | F016102161 | 20.39 | 24.67 | |
| Connector | ||||
| 429 | F016A58221 | 1.18 | 1.43 | |
| Self-Cutting Screw | ||||
| 430 | F016A58223 | 0.83 | 1.00 | |
| Spring Washer | ||||
| 432 | F016L35335 | 1.00 | 1.21 | |
| Cone | ||||
| 433 | F016A57620 | 15.71 | 19.01 | |
| Cone | ||||
| 436 | F016T41001 | 4.70 | 5.69 | |
| Roller | ||||
| 501 | F016103214 | 148.65 | 179.87 | |
| Toothed Gear | ||||
| 502 | F016A57674 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 503 | F016A57635 | |||
| Plain Washer M 20 | ||||
| 505 | F016T48342 | 0.83 | 1.00 | |
| Outer Ring | ||||
| 506 | F016A57758 | 1.70 | 2.06 | |
| Spindle | ||||
| 507 | F016A58735 | 18.19 | 22.01 | |
| No longer available, no replacement | ||||
| 508 | F016102295 | |||
| Retaining Plate | ||||
| 509 | F016A58331 | 2.24 | 2.71 | |
| Gear Cover | ||||
| 512 | F016A57575 | 2.71 | 3.28 | |
| Spacer bushing | ||||
| 513 | F016A57633 | 5.83 | 7.05 | |
| Holder | ||||
| 514 | F016102382 | 9.53 | 11.53 | |
| Rivet Pin | ||||
| 523 | F016A58178 | 3.31 | 4.01 | |
| Bushing | ||||
| 530 | F016A57764 | 2.71 | 3.28 | |
