Here you will find all available parts and drawings of the 'Bosch 3616C00B72 ( CEM32 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

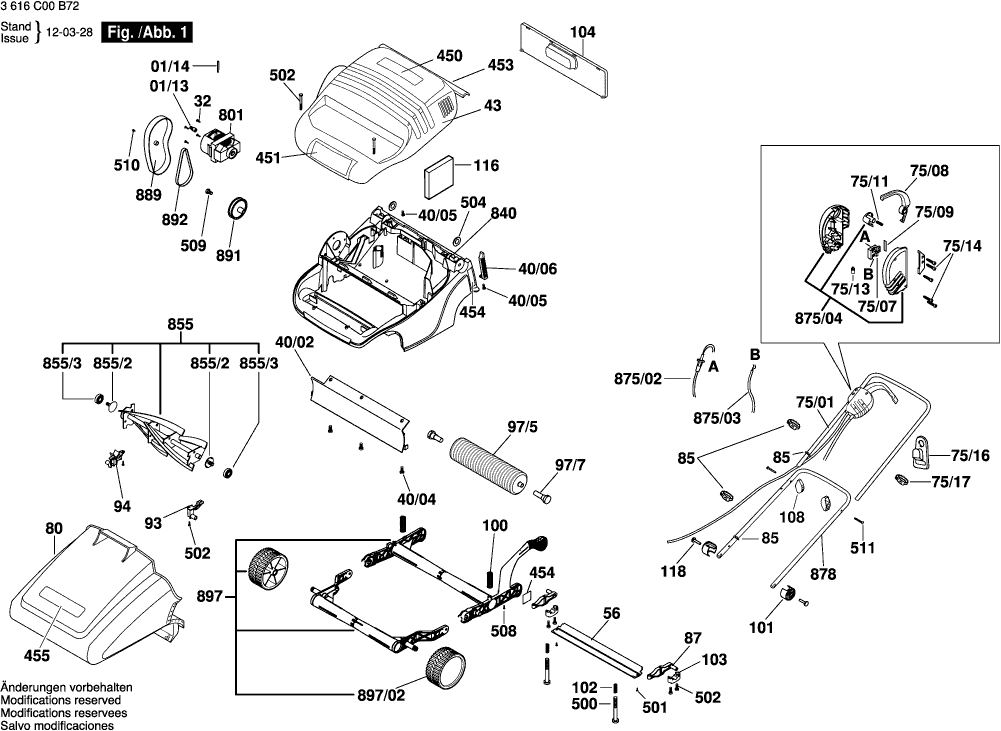

Technical drawing of model Bosch 3616C00B72 ( CEM32 )
Spare parts list of model Bosch 3616C00B72 ( CEM32 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 01/13 | F016L62280 | |||
| Coiled Spring Pin | ||||
| 01/14 | F016T44492 | 1.94 | 2.35 | |
| Self-Cutting Screw | ||||
| 32 | F016L37433 | 0.83 | 1.00 | |
| Deflector Plate | ||||
| 40/02 | F016L62866 | 4.10 | 4.96 | |
| Screw | ||||
| 40/04 | F016T48535 | 0.83 | 1.00 | |
| Self-Cutting Screw 4x19 MM | ||||
| 40/05 | F016T49429 | 0.83 | 1.00 | |
| Insert | ||||
| 40/06 | F016L63327 | 2.24 | 2.71 | |
| Upper Housing | ||||
| 43 | F016L64210 | 11.88 | 14.37 | |
| Lower Blade | ||||
| 56 | F016L63318 | 23.75 | 28.74 | |
| Handle Ø18 MM | ||||
| 75/01 | F016L62472 | 7.58 | 9.17 | |
| On-Off Switch | ||||
| 75/07 | F016F05717 | 11.88 | 14.37 | |
| No longer available, no replacement | ||||
| 75/08 | F016L65676 | |||
| No longer available, no replacement | ||||
| 75/09 | F016T49845 | |||
| No longer available, no replacement | ||||
| 75/11 | F016T49226 | |||
| Condenser | ||||
| 75/13 | F016L36952 | 0.83 | 1.00 | |
| Self-Cutting Screw 4x19 MM | ||||
| 75/14 | F016T49429 | 0.83 | 1.00 | |
| Strain-Relief Clamp | ||||
| 75/16 | F016L65387 | 6.54 | 7.91 | |
| Cable Clip | ||||
| 75/17 | F016T56393 | 1.94 | 2.35 | |
| Collection box | ||||
| 80 | F016L62945 | 23.75 | 28.74 | |
| Cable Cleat | ||||
| 85 | F016L11580 | 0.83 | 1.00 | |
| Blade Holder | ||||
| 87 | F016L62272 | 1.94 | 2.35 | |
| Bearing Holder | ||||
| 93 | F016L65830 | 1.18 | 1.43 | |
| Bearing Holder | ||||
| 94 | F016L65831 | 1.94 | 2.35 | |
| Roller | ||||
| 97/5 | F016L62282 | 5.83 | 7.05 | |
| Stub Shaft | ||||
| 97/7 | F016L63341 | 2.24 | 2.71 | |
| Compression Spring | ||||
| 100 | F016L62298 | 1.70 | 2.06 | |
| Pivot | ||||
| 101 | F016L62285 | 1.94 | 2.35 | |
| Compression Spring | ||||
| 102 | F016L62284 | 1.18 | 1.43 | |
| Clamping Block | ||||
| 103 | F016L62283 | 0.83 | 1.00 | |
| Sealing cap | ||||
| 104 | F016L62318 | 1.70 | 2.06 | |
| Wing Nut | ||||
| 108 | F016L66136 | 3.31 | 4.01 | |
| Air Filter | ||||
| 116 | F016L62487 | 3.31 | 4.01 | |
| Pivot Pin | ||||
| 118 | F016L64240 | 1.18 | 1.43 | |
| Sticker | ||||
| 450 | F016L67984 | 0.83 | 1.00 | |
| Sticker | ||||
| 451 | F016L67985 | 0.83 | 1.00 | |
| Reference Plate | ||||
| 453 | F016L61033 | 0.83 | 1.00 | |
| Sticker | ||||
| 454 | F016L64170 | 1.94 | 2.35 | |
| Sticker | ||||
| 455 | F016L67984 | 0.83 | 1.00 | |
| Bolt | ||||
| 500 | F016L62288 | 1.70 | 2.06 | |
| Screw M5x8 Csk Hd. | ||||
| 501 | F016L36542 | 1.94 | 2.35 | |
| Self-Cutting Screw 4x19 MM | ||||
| 502 | F016T49429 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 504 | F016T49100 | |||
| Self-Cutting Screw | ||||
| 508 | F016L37433 | 0.83 | 1.00 | |
| Nut | ||||
| 509 | F016L62388 | 1.18 | 1.43 | |
| Self-Cutting Screw 4x19 MM | ||||
| 510 | F016T49429 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 511 | F016L65389 | |||
| Motor | ||||
| 801 | F016L80980 | 148.65 | 179.87 | |
| Parts Set | ||||
| 840 | F016103636 | 36.85 | 44.59 | |
| Cutter Cylinder | ||||
| 855 | F016103681 | 67.25 | 81.37 | |
| Bearing cover | ||||
| 855/2 | F016L65939 | 1.18 | 1.43 | |
| groove ball bearing 6200-2Z DIN 625 | ||||
| 855/3 | 1900905232 | 18.19 | 22.01 | |
| Power supply cord EU | ||||
| 875/02 | F016104086 | 12.41 | 15.02 | |
| Connecting Cable | ||||
| 875/03 | F016102355 | 4.70 | 5.69 | |
| Assembly Kit | ||||
| 875/04 | F016103136 | 18.19 | 22.01 | |
| Handle | ||||
| 878 | F016102330 | 9.53 | 11.53 | |
| Belt Cover | ||||
| 889 | F016102356 | 2.71 | 3.28 | |
| Pulley | ||||
| 891 | F016102357 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 892 | F016102358 | |||
| Parts Set | ||||
| 897 | F016103640 | 23.75 | 28.74 | |
| Wheel | ||||
| 897/02 | F016L62270 | 1.94 | 2.35 | |
