Here you will find all available parts and drawings of the 'Bosch 0602491636 (BTANGLEEXACT15)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

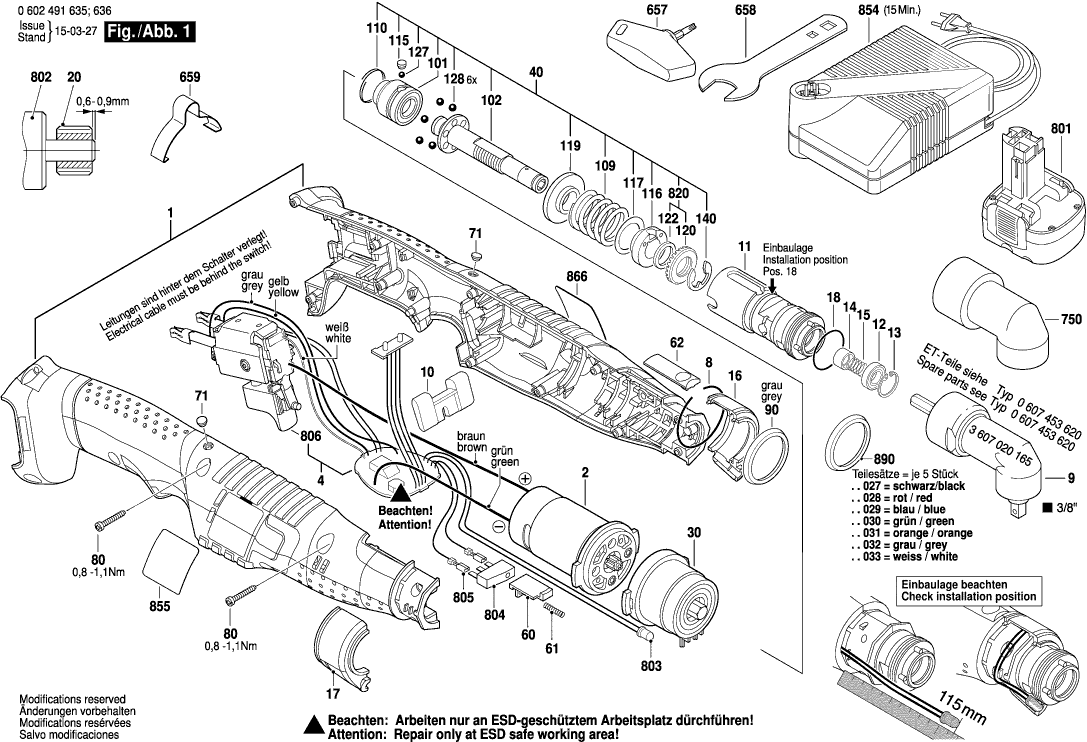

Technical drawing of model Bosch 0602491636 (BTANGLEEXACT15)
Spare parts list of model Bosch 0602491636 (BTANGLEEXACT15)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 3605105028 | 75.38 | 91.21 | |
| DC motor | ||||
| 2 | 3607031734 | 61.93 | 74.94 | |
| Electronic Assembly | ||||
| 4 | 3607200095 | 495.00 | 598.95 | |
| Retaining ring Ø36,6xØ1,5 | ||||
| 8 | 1614601016 | 2.52 | 3.05 | |
| Angle Screwdriver Head 3/8" | ||||
| 9 | 3607020165 | 876.44 | 1060.49 | |
| Switch Slide | ||||
| 10 | 3601099003 | 2.52 | 3.05 | |
| Angle Flange | ||||
| 11 | 3605700165 | 61.93 | 74.94 | |
| groove ball bearing | ||||
| 12 | 1280905004 | 30.08 | 36.40 | |
| Spring retaining ring 16x1 MM, DIN 472 | ||||
| 13 | 2916660003 | 1.32 | 1.60 | |
| Sleeve | ||||
| 14 | 3600423004 | 5.27 | 6.38 | |
| Compression Spring | ||||
| 15 | 3604611037 | 4.58 | 5.54 | |
| Led-Holder | ||||
| 16 | 3605105019 | 9.47 | 11.46 | |
| Led-Holder | ||||
| 17 | 3605105020 | 9.47 | 11.46 | |
| O-Ring | ||||
| 18 | 3600210012 | 2.86 | 3.46 | |
| Pinion | ||||
| 20 | 3606328018 | 3.71 | 4.49 | |
| Planetary Gear Train | ||||
| 30 | 3607030490 | 52.45 | 63.46 | |
| Assembly kit | ||||
| 40 | 3607031567 | 244.89 | 296.32 | |
| Switching Element | ||||
| 60 | 3601923022 | 4.58 | 5.54 | |
| Compression Spring | ||||
| 61 | 3604611022 | 3.04 | 3.68 | |
| Pusher | ||||
| 62 | 3601923029 | 4.58 | 5.54 | |
| Light Conductor | ||||
| 71 | 3604460132 | 2.52 | 3.05 | |
| Torx Oval-Head Screw | ||||
| 80 | 2603490018 | 1.00 | 1.21 | |
| Ring RED | ||||
| 90 | 3600106020 | 3.71 | 4.49 | |
| Clutch Element | ||||
| 101 | 3606445043 | 122.80 | 148.59 | |
| Output Shaft | ||||
| 102 | 3603124023 | 80.26 | 97.11 | |
| Compression Spring BLUE | ||||
| 109 | 3604619020 | 5.81 | 7.03 | |
| Retaining ring | ||||
| 110 | 3600224053 | 1.49 | 1.80 | |
| Sealing plate | ||||
| 115 | 3601023011 | 2.40 | 2.90 | |
| Setting Ring | ||||
| 116 | 3600134016 | 61.93 | 74.94 | |
| Plain Washer | ||||
| 117 | 1600101023 | 1.49 | 1.80 | |
| Support Disc | ||||
| 119 | 3600190036 | 6.54 | 7.91 | |
| Catch Disk | ||||
| 120 | 3603344046 | 33.33 | 40.33 | |
| Shim washer | ||||
| 122 | 3600101052 | 7.32 | 8.86 | |
| Ball | ||||
| 127 | 1903230006 | 2.08 | 2.52 | |
| Ball 4,5 MM III DIN 5401-ST | ||||
| 128 | 1903230008 | 1.00 | 1.21 | |
| Locking washer | ||||
| 140 | 2916080012 | 1.49 | 1.80 | |
| Screwdriver | ||||
| 657 | 3607950027 | 14.94 | 18.08 | |
| Single-Head Eng. Wrench | ||||
| 658 | 3601376007 | 9.67 | 11.70 | |
| Suspension Loop | ||||
| 659 | 3601923024 | 10.90 | 13.19 | |
| Protective Cap | ||||
| 750 | 3605500171 | 11.02 | 13.33 | |
| Battery Pack | ||||
| 801 | 2607335681 | 189.28 | 229.03 | |
| Light-Emitting-Diode | ||||
| 803 | 3607600405 | 12.41 | 15.02 | |
| Microswitch | ||||
| 804 | 3609202762 | 26.62 | 32.21 | |
| Plug Set | ||||
| 805 | 3609202766 | 5.96 | 7.21 | |
| Switch | ||||
| 806 | 3607200083 | 61.93 | 74.94 | |
| Catch Disk | ||||
| 820 | 3603344047 | 23.90 | 28.92 | |
| Fast Charger | ||||
| 854 | 2607224435 | 136.48 | 165.14 | |
| Fast Charger | ||||
| 854 | 2607225027 | 136.48 | 165.14 | |
| Fast Charger | ||||
| 854 | 2607225029 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 854 | 2607225031 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 854 | 2607225033 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 854 | 2607225039 | 110.30 | 133.46 | |
| Nameplate | ||||
| 855 | 16070312AY | 17.60 | 21.30 | |
| Manufacturer's nameplate | ||||
| 866 | 3601119374 | 3.04 | 3.68 | |
| Parts Set 5 PCE., ORANGE | ||||
| 890 | 3600106031 | 23.90 | 28.92 | |
| Parts Set 5 PCE,. GREY | ||||
| 890 | 3600106032 | 21.30 | 25.77 | |
| Parts Set 5 PCE., BLACK | ||||
| 890 | 3600106027 | 21.30 | 25.77 | |
| Parts Set 5 PCE,. LIGHT BLUE | ||||
| 890 | 3600106029 | 21.30 | 25.77 | |
| Parts Set 5 PCE,. LIGHT GREEN | ||||
| 890 | 3600106030 | 21.30 | 25.77 | |
| Parts Set 5 PCE., RED | ||||
| 890 | 3600106028 | 18.94 | 22.92 | |
| Parts Set 5 PCE,. WHITE | ||||
| 890 | 3600106033 | 18.94 | 22.92 | |
