Here you will find all available parts and drawings of the 'Bosch 3600H53500 ( AXTRAPID2000 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

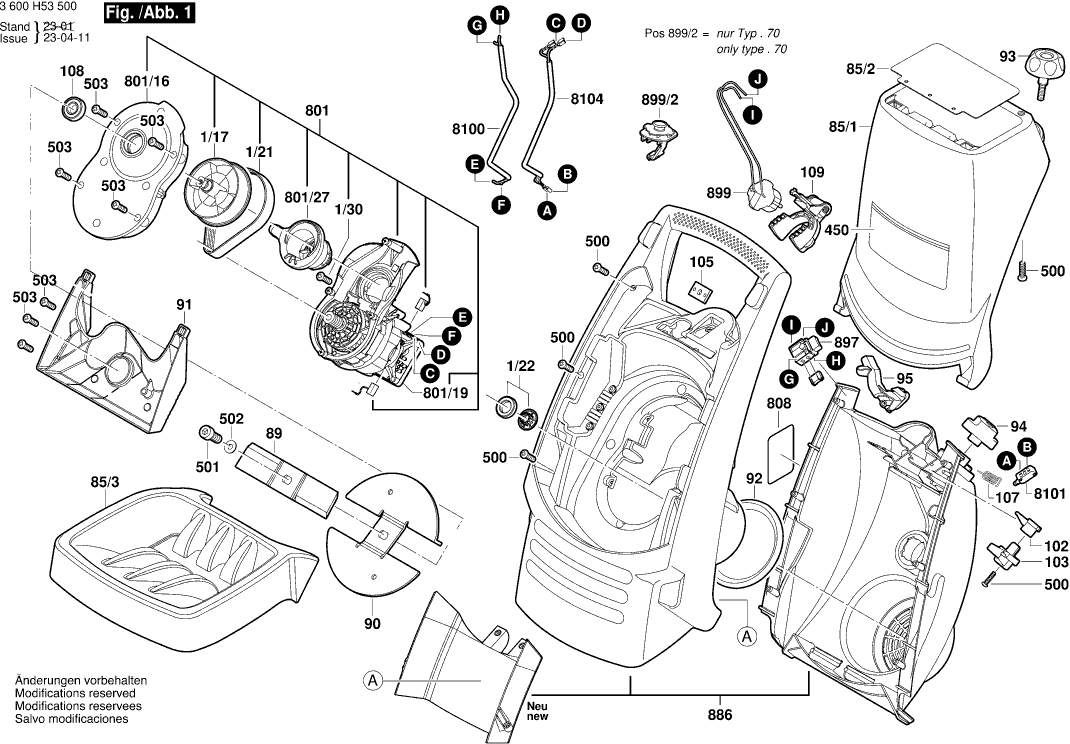

Technical drawing of model Bosch 3600H53500 ( AXTRAPID2000 )
Spare parts list of model Bosch 3600H53500 ( AXTRAPID2000 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Drive Shaft | ||||
| 1/17 | F016L64674 | 10.73 | 12.98 | |
| Drive Belt | ||||
| 1/21 | F016L64673 | 11.88 | 14.37 | |
| Magnet | ||||
| 1/22 | 1600A014DZ | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 1/24 | F016L64659 | |||
| Self-Cutting Screw | ||||
| 1/30 | F016L37433 | 0.83 | 1.00 | |
| Hexagon-Socket Key | ||||
| 39/11 | F016L64689 | 1.18 | 1.43 | |
| Screw M5x8 Csk Hd. | ||||
| 39/20 | F016L36542 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 39/22 | F016L64669 | |||
| Axle | ||||
| 61 | F016L64656 | 2.11 | 2.55 | |
| Chute | ||||
| 85/1 | F016L64652 | 23.75 | 28.74 | |
| Parts Set | ||||
| 85/2 | F016L65500 | 7.58 | 9.17 | |
| Hopper | ||||
| 85/3 | F016L64653 | 10.73 | 12.98 | |
| Shredder blade | ||||
| 89 | 2608635492 | 20.42 | 24.71 | |
| Mounting Plate | ||||
| 90 | F016L64663 | 11.88 | 14.37 | |
| Cutter Plate | ||||
| 91 | F016L64664 | 12.41 | 15.02 | |
| Filter Element | ||||
| 92 | F016L64665 | 1.18 | 1.43 | |
| Assembly kit | ||||
| 93 | F016P64666 | 7.58 | 9.17 | |
| Knob | ||||
| 94 | F016L64667 | 1.18 | 1.43 | |
| Switching Element | ||||
| 95 | 2609005618 | 1.18 | 1.43 | |
| Switching Cam | ||||
| 102 | F016L64687 | 1.18 | 1.43 | |
| Actuator | ||||
| 103 | F016L64737 | 1.18 | 1.43 | |
| Backing Plate | ||||
| 105 | F016L64745 | 1.70 | 2.06 | |
| Spring | ||||
| 107 | 2609005435 | 1.18 | 1.43 | |
| Spacer | ||||
| 108 | F016L65506 | 2.24 | 2.71 | |
| Set ring | ||||
| 109 | F016L65228 | 5.33 | 6.45 | |
| Manufacturer's nameplate AXT RAPID 2000 | ||||
| 450 | 2609001925 | 1.94 | 2.35 | |
| Self-Cutting Screw 4x19 MM | ||||
| 500 | F016T49429 | 0.83 | 1.00 | |
| Trunnion | ||||
| 501 | F016L64679 | 0.83 | 1.00 | |
| Washer | ||||
| 502 | F016L64746 | 1.70 | 2.06 | |
| Screw | ||||
| 503 | F016L64777 | 1.18 | 1.43 | |
| Pusher | ||||
| 650 | F016L64727 | 5.83 | 7.05 | |
| Motor | ||||
| 801 | F016104209 | 91.56 | 110.79 | |
| Housing | ||||
| 801/16 | F016103184 | 9.53 | 11.53 | |
| Speed Limiter | ||||
| 801/19 | F016103642 | 73.72 | 89.20 | |
| Belt Tensioner | ||||
| 801/27 | F016104211 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 808 | 2609001945 | |||
| Wheel | ||||
| 860 | F016103218 | 6.54 | 7.91 | |
| Housing | ||||
| 886 | 2609006805 | 60.65 | 73.39 | |
| Supporting Frame | ||||
| 888 | F016103186 | 36.85 | 44.59 | |
| On-Off Switch | ||||
| 897 | F016103192 | 8.45 | 10.22 | |
| Power supply cord | ||||
| 899 | F016103194 | 7.58 | 9.17 | |
| Wiring Unit | ||||
| 8100 | 1607000D04 | 18.19 | 22.01 | |
| Microswitch | ||||
| 8101 | F016103197 | 5.83 | 7.05 | |
| Connecting Cable | ||||
| 8104 | F016103198 | 4.10 | 4.96 | |
