Here you will find all available parts and drawings of the 'Bosch 3600H03101 ( AXT25D )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

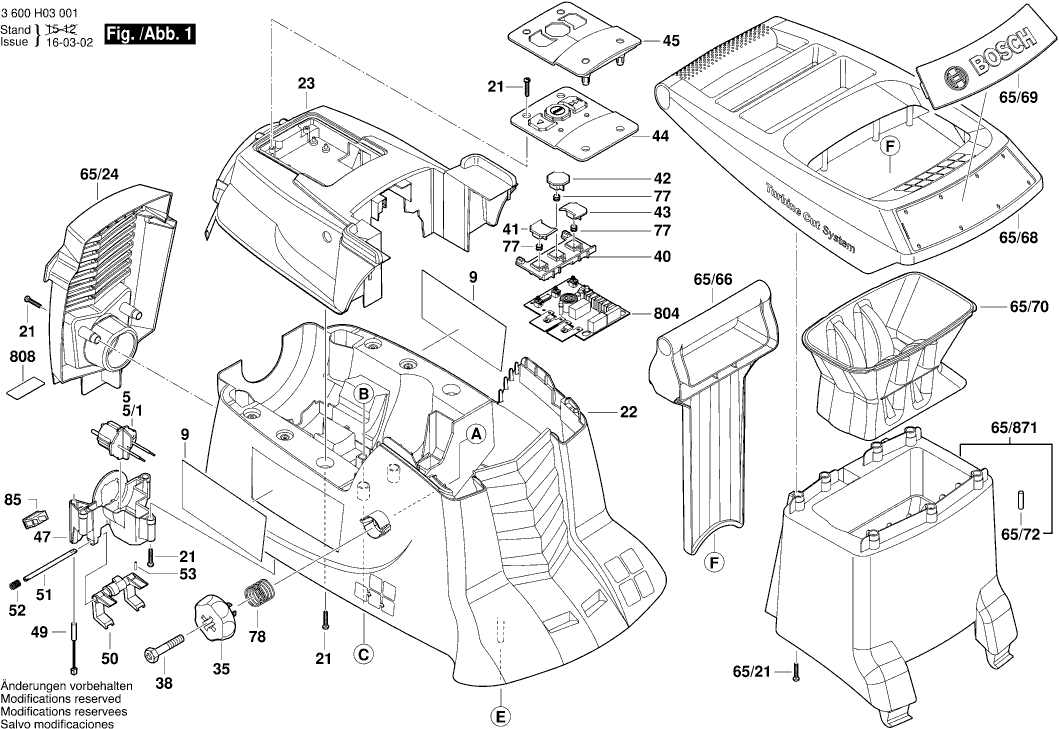

Technical drawing of model Bosch 3600H03101 ( AXT25D )

Spare parts list of model Bosch 3600H03101 ( AXT25D )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Pivot Plate
2/1 2609003822 33.45 40.47
Screw
2/10 2609003830 0.83 1.00
Cutting Head
2/11 2609003831 60.65 73.39
Housing
2/14 2609003833 81.47 98.58
Insert
2/15 2609003834 4.70 5.69
Flanged Bearing
2/17 2609003836 11.88 14.37
No longer available, no replacement
2/19 2609003838
Bearing
2/2 2609003823 5.83 7.05
Porous Bearing
2/22 2609003841 1.18 1.43
Planet Gear
2/23 2609003842 20.42 24.71
Washer
2/24 2609003843 1.94 2.35
Screw
2/3 2609003824 0.83 1.00
Fan
2/36 2609003854 6.54 7.91
Spring retaining ring
2/37 2609003855 0.83 1.00
Clamping Piece
2/38 2609004582 5.33 6.45
Motor Capacitor
2/39 2609007667 18.19 22.01
Spring Washer
2/4 2609003825 0.83 1.00
Plate
2/40 2609004396 5.83 7.05
Bolt
2/50 2609004520 18.19 22.01
Connecting Plate
2/8 2609003828 9.53 11.53
Gear Box
2/844 2609007456 36.85 44.59
Plate
2/9 2609003829 5.33 6.45
Cable set EU
5 2609003149 26.84 32.48
Cable Set UK
5/1 2609003515 44.82 54.23
Manufacturer's nameplate AXT 25 D
9 2609003151 2.24 2.71
Torx Oval-Head Screw 4x25
21 2603490024 1.18 1.43
Housing
22 2609004511 33.45 40.47
Upper Housing
23 2609004512 18.19 22.01
Flap
25 2609004514 4.10 4.96
Spring
26 2609003144 1.18 1.43
Bolt
27 2609002795 1.70 2.06
Knob
32 2609004515 1.70 2.06
Knob
35 2609004516 1.70 2.06
Adjusting Screw
38 2609004602 5.33 6.45
Holder
40 2609004640 2.71 3.28
Cap
41 2609003399 1.18 1.43
Cap
42 2609003400 1.18 1.43
Cap
43 2609003401 1.18 1.43
Rubber Pad
44 2609002755 9.53 11.53
Cover Plate
45 2609004518 2.24 2.71
Oval-Head Screw M4x8
46 2603413035 0.83 1.00
Socket housing
47 2609004519 2.71 3.28
Relay
48 2609005130 9.53 11.53
Reed switch
49 2609003540 15.71 19.01
Rocker Rod
50 2609004603 1.94 2.35
Bolt
51 2609002846 4.10 4.96
Spring
52 2609002847 0.83 1.00
Slotted Spring Pin
53 2609002793 0.83 1.00
Slotted Spring Pin
54 1600A020TT 0.83 1.00
Holding Pin
56 2609003267 4.10 4.96
Holding Pin
57 2609003268 4.70 5.69
Nut
58 2609003551 1.18 1.43
Thread-forming tap. Screw 4,8x22
63 2609003552 0.83 1.00
Torx Oval-Head Screw 4x25
65/21 2603490024 1.18 1.43
Rear Housing Section
65/24 2609004513 15.71 19.01
Supporting Frame
65/55 2609004244 101.94 123.35
No longer available, no replacement
65/59 2609002790
No longer available, no replacement
65/62 F016L64669
Pusher
65/66 2609002752 5.33 6.45
Handle
65/68 2609004523 13.93 16.86
Company Logo AXT 25 D
65/69 2609002685 5.33 6.45
Hopper
65/70 2609004524 12.41 15.02
Magnet
65/72 2609002799 3.31 4.01
Catcher Container
65/865 2609006904 36.85 44.59
Chute
65/871 2609006903 29.75 36.00
Toothed lock washer DIN 6797-A4,3-FST
76 2916030006 0.83 1.00
Compression Spring
77 2609003683 1.18 1.43
Spring
78 2609004604 0.83 1.00
Washer DIN 9021-6,4x18x1,6
80 2610386712 1.94 2.35
Cable tie
82 2609003117 0.83 1.00
Switch
84 2609003145 5.83 7.05
Switch Rocker
85 2609003517 5.83 7.05
Motor
802 2609004990 209.26 253.20
Ring Gear
802/32 2609003851 10.73 12.98
Electronic Assembly
804 1600A00H67 81.47 98.58
Guide-Plate
805 2609004912 26.84 32.48
Screw
807 2609003827 1.18 1.43
Nameplate
808 160111A3XA 1.94 2.35
Split Pin
816 2609004989 1.70 2.06
Shaft
820 2609006273 33.45 40.47
Wheel Set
860/59 1607000E3U 15.71 19.01
Wheel
860/59 2609003159 7.58 9.17
