Here you will find all available parts and drawings of the 'Bosch 0600850903 ( AXT2300 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

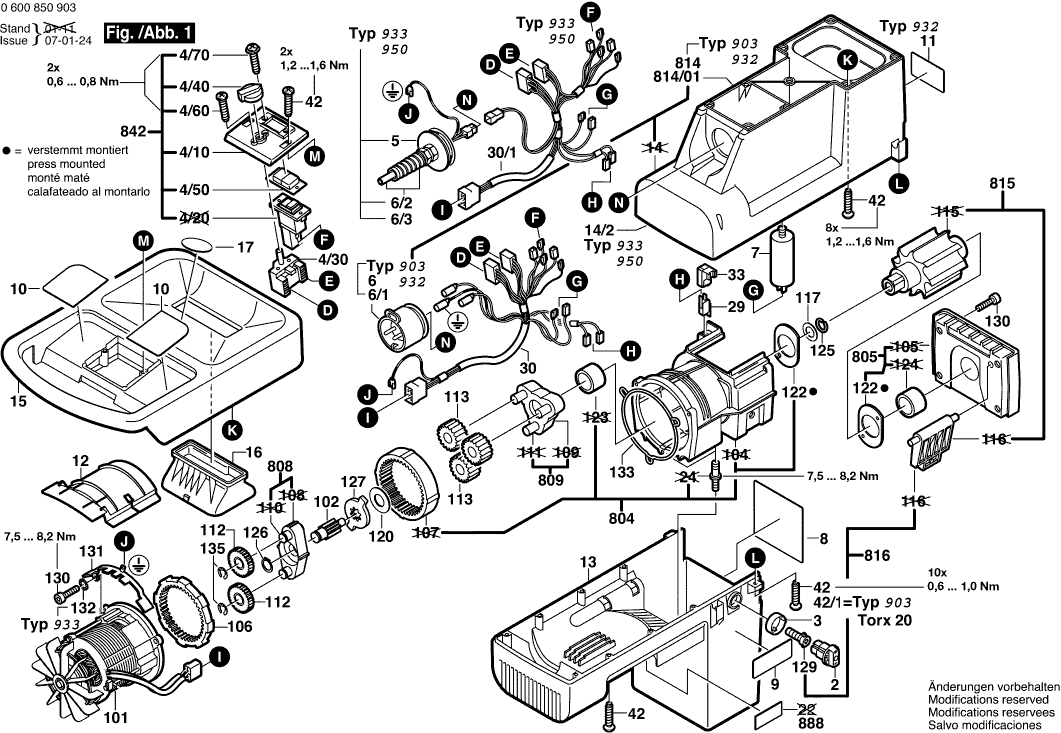

Technical drawing of model Bosch 0600850903 ( AXT2300 )

Spare parts list of model Bosch 0600850903 ( AXT2300 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No longer available, no replacement
2 1600591021
No longer available, no replacement
3 1600290034
Switch Plate
4/10 1605190132 2.24 2.71
No longer available, no replacement
4/30 1607200131
Switch Button
4/40 1602025029 1.94 2.35
No longer available, no replacement
4/50 1605500207
Oval-Head Screw KT 4,0x14
4/60 1603425001 2.24 2.71
Oval-Head Screw 4x12 MM
4/70 2914211503 1.18 1.43
No longer available, no replacement
6 1605190060
No longer available, no replacement
7 1607328069
Nameplate
8 1601118A03 2.71 3.28
Reference Plate
9 1601118928 1.94 2.35
Reference Plate
10 1601118A81 0.83 1.00
Cover Plate
12 1605500190 1.70 2.06
Housing Base GREEN
13 1605190057 40.61 49.14
Housing Cover BLACK
15 1605190177 44.82 54.23
No longer available, no replacement
16 1605190055
Sticker
17 1601118916 0.83 1.00
No longer available, no replacement
29 1607200134
Wiring Harness
30 1604449010 15.71 19.01
Switch Support
33 1605190059 0.83 1.00
Thread-forming tap. Screw TORX-T20
42/1 1603435054 1.18 1.43
Motor 230V
101 1607220034 233.78 282.87
Toothed Gear Z=8
102 1606318011 8.45 10.22
Ring Gear Z=112
106 1606334006 18.19 22.01
Toothed Gear Z=49
112 1606317088 4.70 5.69
Toothed Gear Z=23
113 1606318008 15.71 19.01
Friction Washer
117 1600100032 0.83 1.00
Friction Washer
120 1600100027 1.18 1.43
No longer available, no replacement
122 1601034040
Retaining ring 10 DIN 9045
125 2916600006 1.18 1.43
Spring retaining ring DIN 471 18x1,2MM
126 2916650009 0.83 1.00
Carrier
127 1606490040 5.33 6.45
Adjusting Screw
129 1603490004 2.24 2.71
Thread-forming tap. Screw M6x25 MM
130 1603414010 1.18 1.43
Holding Plate
131 1601329028 0.83 1.00
No longer available, no replacement
133 1600290035
Locking Washer DIN 6799-12-FST
135 2916080014 0.83 1.00
Single-Head Eng. Wrench SW10
651 1607950527 2.24 2.71
Catcher Container
652 1605411031 8.45 10.22
No longer available, no replacement
653 1607950057
Axle
668 1607000957 11.88 14.37
Plain Washer
673 1600190030 1.18 1.43
Plain Washer
673/1 1600190030 1.18 1.43
Hex Nut DIN 985-M6-8
674 2915061004 0.83 1.00
Round-Head Bolt DIN 603 M6x50
675 2910281213 1.18 1.43
Cap Nut DIN 1587-M6-M-6
677 2915151001 2.24 2.71
No longer available, no replacement
804 1607000819
No longer available, no replacement
805 1607000813
Supporting Frame
807 1607000829 40.61 49.14
Planetary-Gear Carrier
808 1607000874 18.19 22.01
Planetary-Gear Carrier
809 1607000820 18.19 22.01
No longer available, no replacement
814 1605190078
Cutting Head
815 1607000821 130.32 157.69
No longer available, no replacement
816 1601000001
No longer available, no replacement
842 1607000863
Wheel Ø200 MM
869 1609351088 9.53 11.53
No longer available, no replacement
869/020 1609351075
Nameplate
888 160111A3H5 1.94 2.35
