Here you will find all available parts and drawings of the 'Bosch 3600H03002 (AXT22D)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

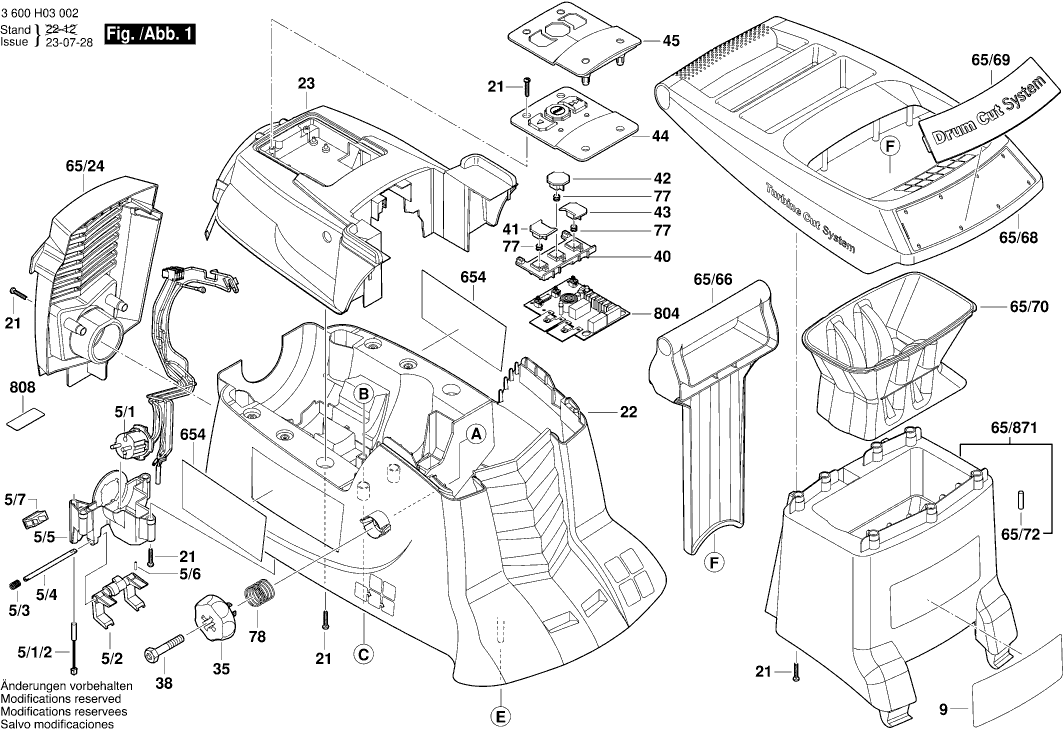

Technical drawing of model Bosch 3600H03002 (AXT22D)
Spare parts list of model Bosch 3600H03002 (AXT22D)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pivot Plate | ||||
| 2/1 | 2609003822 | 39.14 | 47.36 | |
| Screw | ||||
| 2/10 | 2609003830 | 1.00 | 1.21 | |
| Cutting Head | ||||
| 2/11 | 2609003831 | 71.68 | 86.73 | |
| Housing | ||||
| 2/14 | 2609003833 | 80.26 | 97.11 | |
| Insert | ||||
| 2/15 | 2609003834 | 5.81 | 7.03 | |
| Split Pin | ||||
| 2/16 | 2609004989 | 2.08 | 2.52 | |
| Flanged Bearing | ||||
| 2/17 | 2609003836 | 13.13 | 15.89 | |
| No longer available, no replacement | ||||
| 2/19 | 2609003838 | |||
| Bearing | ||||
| 2/2 | 2609003823 | 7.46 | 9.03 | |
| Porous Bearing | ||||
| 2/22 | 2609003841 | 1.49 | 1.80 | |
| Planet Gear | ||||
| 2/23 | 2609003842 | 18.94 | 22.92 | |
| Washer | ||||
| 2/24 | 2609003843 | 2.40 | 2.90 | |
| Screw | ||||
| 2/3 | 2609003824 | 1.00 | 1.21 | |
| Fan | ||||
| 2/36 | 2609003854 | 8.35 | 10.10 | |
| Spring retaining ring | ||||
| 2/37 | 2609003855 | 1.00 | 1.21 | |
| Clamping Piece | ||||
| 2/38 | 2609004582 | 6.73 | 8.14 | |
| Motor Capacitor | ||||
| 2/39 | 2609007667 | 21.30 | 25.77 | |
| Spring Washer | ||||
| 2/4 | 2609003825 | 1.00 | 1.21 | |
| Plate | ||||
| 2/40 | 2609004396 | 7.46 | 9.03 | |
| Bolt | ||||
| 2/50 | 2609004520 | 21.30 | 25.77 | |
| Screw | ||||
| 2/7 | 2609003827 | 1.49 | 1.80 | |
| Connecting Plate | ||||
| 2/8 | 2609003828 | 11.37 | 13.76 | |
| Gear Box | ||||
| 2/844 | 2609007456 | 43.12 | 52.18 | |
| Plate | ||||
| 2/9 | 2609003829 | 6.73 | 8.14 | |
| Cable set EU | ||||
| 5/1 | 2609003149 | 31.42 | 38.02 | |
| Reed switch | ||||
| 5/1/2 | 2609003540 | 18.94 | 22.92 | |
| Rocker Rod | ||||
| 5/2 | 1600A02GV0 | 3.44 | 4.16 | |
| Spring | ||||
| 5/3 | 2609002847 | 1.00 | 1.21 | |
| Bolt | ||||
| 5/4 | 2609002846 | 4.94 | 5.98 | |
| Socket housing | ||||
| 5/5 | 1600A02GU9 | 4.94 | 5.98 | |
| Slotted Spring Pin | ||||
| 5/6 | 2609002793 | 1.00 | 1.21 | |
| Switch Rocker | ||||
| 5/7 | 2609003517 | 7.46 | 9.03 | |
| Manufacturer's nameplate AXT 22 D | ||||
| 9 | 160111C531 | 3.44 | 4.16 | |
| Torx Oval-Head Screw | ||||
| 21 | 2603490024 | 1.49 | 1.80 | |
| Housing | ||||
| 22 | 16058066FF | 39.14 | 47.36 | |
| Upper Housing | ||||
| 23 | 2609004512 | 21.30 | 25.77 | |
| Flap | ||||
| 25 | 2609004514 | 4.94 | 5.98 | |
| Spring | ||||
| 26 | 2609003144 | 1.49 | 1.80 | |
| Bolt | ||||
| 27 | 2609002795 | 2.08 | 2.52 | |
| Knob | ||||
| 32 | 2609004515 | 2.08 | 2.52 | |
| Knob | ||||
| 35 | 2609004516 | 2.08 | 2.52 | |
| Adjusting Screw | ||||
| 38 | 2609004602 | 6.73 | 8.14 | |
| Holder | ||||
| 40 | 2609004640 | 3.44 | 4.16 | |
| Cap | ||||
| 41 | 2609003399 | 1.49 | 1.80 | |
| Cap | ||||
| 42 | 2609003400 | 1.49 | 1.80 | |
| Cap | ||||
| 43 | 2609003401 | 1.49 | 1.80 | |
| Rubber Pad | ||||
| 44 | 2609002755 | 11.37 | 13.76 | |
| Cover Plate | ||||
| 45 | 2609004518 | 2.86 | 3.46 | |
| Thread-forming tap. Screw | ||||
| 46 | 2603410048 | 1.49 | 1.80 | |
| Relay | ||||
| 48 | 2609005130 | 11.37 | 13.76 | |
| Slotted Spring Pin | ||||
| 53 | 2609002793 | 1.00 | 1.21 | |
| Slotted Spring Pin | ||||
| 54 | 1600A020TT | 1.00 | 1.21 | |
| Holding Pin | ||||
| 56 | 2609003267 | 4.94 | 5.98 | |
| Holding Pin | ||||
| 57 | 2609003268 | 5.81 | 7.03 | |
| Nut | ||||
| 58 | 2609003551 | 1.49 | 1.80 | |
| Thread-forming tap. Screw 4,8x22 | ||||
| 63 | 2609003552 | 1.00 | 1.21 | |
| Rear Housing Section | ||||
| 65/24 | 2609004513 | 18.94 | 22.92 | |
| Supporting Frame | ||||
| 65/55 | 2609004244 | 122.80 | 148.59 | |
| Wheel | ||||
| 65/59 | 1600A02EP3 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 65/62 | F016L64669 | |||
| Pusher | ||||
| 65/66 | 1600A02EP2 | 9.67 | 11.70 | |
| Handle | ||||
| 65/68 | 2609004523 | 16.79 | 20.32 | |
| Cover Drum Cut | ||||
| 65/69 | 1600A02EH7 | 4.94 | 5.98 | |
| Hopper | ||||
| 65/70 | 2609004524 | 14.94 | 18.08 | |
| Magnet | ||||
| 65/72 | 2609002799 | 4.18 | 5.06 | |
| Catcher Container | ||||
| 65/865 | 1600A02JF4 | 52.45 | 63.46 | |
| Chute | ||||
| 65/871 | 1600A02JT1 | 43.12 | 52.18 | |
| Toothed lock washer | ||||
| 76 | 2916030006 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 77 | 2609003683 | 1.49 | 1.80 | |
| Spring | ||||
| 78 | 2609004604 | 1.00 | 1.21 | |
| Washer | ||||
| 80 | 2610386712 | 2.40 | 2.90 | |
| Washer | ||||
| 81 | 2609007156 | 1.00 | 1.21 | |
| Cable tie | ||||
| 83 | 2609005100 | 1.00 | 1.21 | |
| Switch | ||||
| 84 | 2609003145 | 7.46 | 9.03 | |
| Sticker Drum Cut | ||||
| 654 | 160111C54B | 2.40 | 2.90 | |
| Motor | ||||
| 802 | 2609004990 | 244.89 | 296.32 | |
| Ring Gear | ||||
| 802/32 | 2609003851 | 12.82 | 15.51 | |
| Electronic Assembly | ||||
| 804 | 1600A02P1Y | 71.68 | 86.73 | |
| Guide-Plate | ||||
| 805 | 2609004912 | 31.42 | 38.02 | |
| Nameplate | ||||
| 808 | 160111AA0R | 2.40 | 2.90 | |
| Shaft | ||||
| 820 | 2609006273 | 39.14 | 47.36 | |
