Here you will find all available parts and drawings of the 'Bosch 3600H8A100 (AVR1100)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

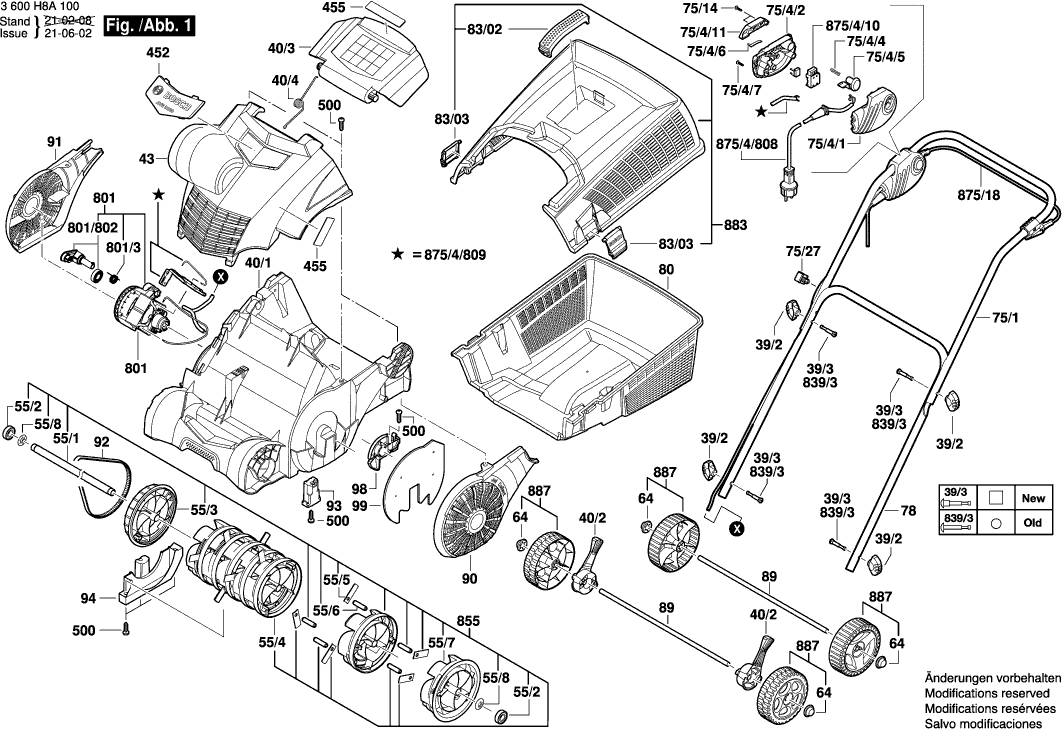

Technical drawing of model Bosch 3600H8A100 (AVR1100)
Spare parts list of model Bosch 3600H8A100 (AVR1100)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Wing Nut | ||||
| 39/2 | F016L66136 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 39/3 | F016L65389 | |||
| Chassis | ||||
| 40/1 | F016L67969 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 40/2 | F016L66356 | |||
| Guard Flap | ||||
| 40/3 | F016L66359 | 13.13 | 15.89 | |
| Spring | ||||
| 40/4 | F016L66363 | 1.00 | 1.21 | |
| Motor Hood | ||||
| 43 | F016L66357 | 14.94 | 18.08 | |
| Rotor Shaft | ||||
| 55/1 | F016L66661 | 12.82 | 15.51 | |
| Bearing 6002-2RS | ||||
| 55/2 | F016L67442 | 3.44 | 4.16 | |
| Pulley | ||||
| 55/3 | F016L66390 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 55/4 | F016L66386 | |||
| No longer available, no replacement | ||||
| 55/5 | F016L66388 | |||
| No longer available, no replacement | ||||
| 55/6 | F016L66389 | |||
| End cap | ||||
| 55/7 | F016L66387 | 9.67 | 11.70 | |
| Shield | ||||
| 55/8 | F016L66613 | 2.40 | 2.90 | |
| Switch Handle | ||||
| 64 | 1602026057 | 1.49 | 1.80 | |
| Ratchet Cap | ||||
| 64 | F016F05700 | 1.00 | 1.21 | |
| Handle | ||||
| 75/1 | F016L66351 | 21.30 | 25.77 | |
| Self-Cutting Screw | ||||
| 75/14 | F016T49429 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 75/27 | F016L90575 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 75/4/1 | F016L66234 | |||
| Clamping Piece | ||||
| 75/4/11 | F016L66236 | 1.00 | 1.21 | |
| Switch Housing | ||||
| 75/4/2 | F016L66235 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 75/4/4 | F016L66240 | |||
| No longer available, no replacement | ||||
| 75/4/5 | F016L66416 | |||
| Push-Button | ||||
| 75/4/6 | F016F05705 | 1.00 | 1.21 | |
| Self-Cutting Screw | ||||
| 75/4/7 | F016T49429 | 1.00 | 1.21 | |
| bottom handle | ||||
| 78 | F016L66398 | 10.90 | 13.19 | |
| Collection box | ||||
| 80 | F016F05711 | 18.94 | 22.92 | |
| Collection box | ||||
| 80 | F016L66353 | 18.94 | 22.92 | |
| Handle | ||||
| 83/02 | F016F05683 | 1.00 | 1.21 | |
| Latch | ||||
| 83/03 | F016F05680 | 1.00 | 1.21 | |
| Axle 9 MM | ||||
| 89 | F016L66365 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 90 | F016L66358 | |||
| grille R/H | ||||
| 91 | F016L66360 | 9.67 | 11.70 | |
| No longer available, no replacement | ||||
| 92 | F016L66343 | |||
| Bearing Clamp | ||||
| 93 | F016L66376 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 94 | F016L66375 | |||
| Clamping Piece | ||||
| 98 | F016L66342 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 99 | F016L66749 | |||
| Company Logo | ||||
| 452 | F016L66212 | 7.46 | 9.03 | |
| Sticker | ||||
| 455 | F016L66401 | 2.40 | 2.90 | |
| Self-Cutting Screw | ||||
| 500 | F016T49429 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 801 | F016104192 | |||
| Spring | ||||
| 801/3 | F016L66344 | 1.00 | 1.21 | |
| tensioner arm | ||||
| 801/802 | F016104000 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 839/3 | F016L59277 | |||
| Cutter | ||||
| 855 | F016104190 | 98.18 | 118.80 | |
| No longer available, no replacement | ||||
| 875/18 | F016103913 | |||
| On-Off Switch | ||||
| 875/4/10 | F016F05717 | 13.13 | 15.89 | |
| No longer available, no replacement | ||||
| 875/4/808 | F016104086 | |||
| Connection Cable | ||||
| 875/4/809 | F016105348 | 27.81 | 33.65 | |
| Collector Box Top | ||||
| 883 | F016F05681 | 16.79 | 20.32 | |
| No longer available, no replacement | ||||
| 884 | F016104025 | |||
| No longer available, no replacement | ||||
| 887 | F016103908 | |||
