Here you will find all available parts and drawings of the 'Bosch 3600H78N02 ( ARTEXPERTLI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

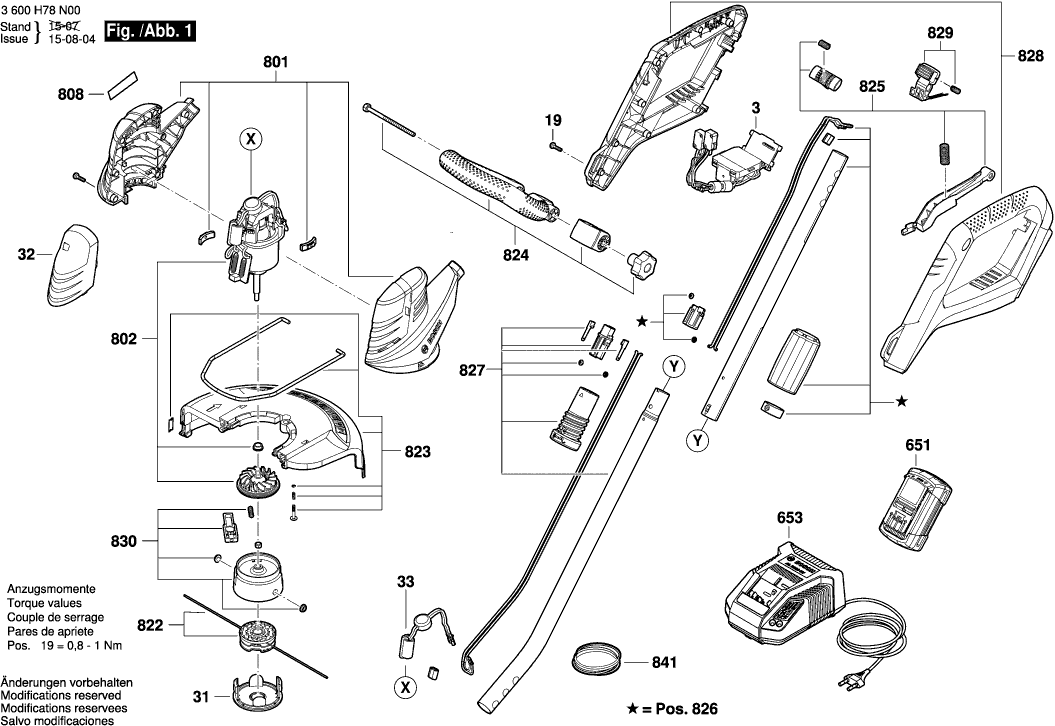

Technical drawing of model Bosch 3600H78N02 ( ARTEXPERTLI )
Spare parts list of model Bosch 3600H78N02 ( ARTEXPERTLI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Electronics Module | ||||
| 3 | 1607233580 | 113.29 | 137.08 | |
| Screw | ||||
| 19 | F016L72416 | 0.83 | 1.00 | |
| Cover | ||||
| 31 | F016L72438 | 0.83 | 1.00 | |
| Cover | ||||
| 32 | F016L72444 | 1.70 | 2.06 | |
| Electronics Module | ||||
| 33 | F016L72450 | 11.88 | 14.37 | |
| Battery Pack GBA 36V 4,0Ah H-C | ||||
| 651 | 1607A350R2 | 233.78 | 282.87 | |
| Fast Charger EU AL 36V-20/36V | ||||
| 653 | 2607226273 | 55.25 | 66.85 | |
| Motor Housing | ||||
| 801 | F016F04410 | 9.53 | 11.53 | |
| DC motor | ||||
| 802 | F016F04408 | 18.19 | 22.01 | |
| Nameplate | ||||
| 808 | F016L73721 | 1.94 | 2.35 | |
| Cutting line cartridge | ||||
| 822 | F016F04405 | 5.33 | 6.45 | |
| Knife Guard | ||||
| 823 | F016F04406 | 5.33 | 6.45 | |
| Set Of Handles | ||||
| 824 | F016F04407 | 20.42 | 24.71 | |
| Trigger | ||||
| 825 | F016F04409 | 4.10 | 4.96 | |
| Rod | ||||
| 826 | F016F04411 | 20.42 | 24.71 | |
| Rod | ||||
| 827 | F016F04412 | 23.75 | 28.74 | |
| Housing | ||||
| 828 | F016F04413 | 12.41 | 15.02 | |
| Latch | ||||
| 829 | F016F04416 | 0.83 | 1.00 | |
| Spool cover | ||||
| 830 | F016F04418 | 2.24 | 2.71 | |
| Plastic Cable 24m | ||||
| 841 | F016F04559 | 12.41 | 15.02 | |
