Here you will find all available parts and drawings of the 'Bosch 3600H78M20 (ART37)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

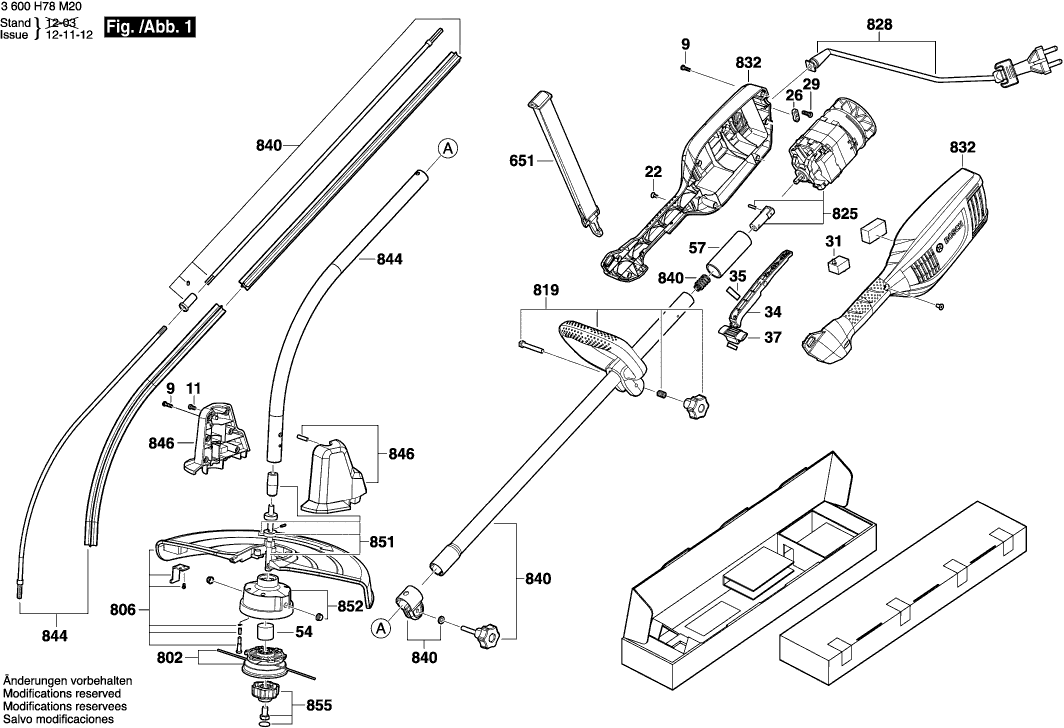

Technical drawing of model Bosch 3600H78M20 (ART37)
Spare parts list of model Bosch 3600H78M20 (ART37)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw | ||||
| 9 | F016L71906 | 1.00 | 1.21 | |
| Screw | ||||
| 11 | F016L71908 | 1.00 | 1.21 | |
| Screw | ||||
| 22 | F016L71909 | 1.00 | 1.21 | |
| Fastening Clamp | ||||
| 26 | F016L71868 | 1.00 | 1.21 | |
| Screw 4x16 | ||||
| 29 | F016L71907 | 1.00 | 1.21 | |
| Switch | ||||
| 31 | F016L71886 | 7.46 | 9.03 | |
| Trigger | ||||
| 34 | F016L71866 | 2.40 | 2.90 | |
| Spring | ||||
| 35 | F016L71899 | 1.00 | 1.21 | |
| Button | ||||
| 37 | F016L71867 | 1.49 | 1.80 | |
| Spring | ||||
| 54 | F016L71904 | 1.00 | 1.21 | |
| Sleeve | ||||
| 57 | F016L71920 | 2.40 | 2.90 | |
| Carrying Loop | ||||
| 651 | F016L71919 | 4.18 | 5.06 | |
| Cutting line cartridge | ||||
| 802 | F016F04234 | 10.90 | 13.19 | |
| Knife Guard | ||||
| 806 | F016F04235 | 12.82 | 15.51 | |
| Set Of Handles | ||||
| 819 | F016F04248 | 14.94 | 18.08 | |
| Motor | ||||
| 825 | F016F04241 | 64.67 | 78.25 | |
| Power supply cord | ||||
| 828 | F016F04242 | 8.35 | 10.10 | |
| Motor Housing | ||||
| 832 | F016F04240 | 31.42 | 38.02 | |
| Rod | ||||
| 840 | F016F04239 | 39.14 | 47.36 | |
| Rod | ||||
| 844 | F016F04238 | 27.81 | 33.65 | |
| Housing | ||||
| 846 | F016F04907 | 18.94 | 22.92 | |
| Crankshaft | ||||
| 851 | F016F04236 | 13.13 | 15.89 | |
| Spool cover | ||||
| 852 | F016F04243 | 11.37 | 13.76 | |
| Knob | ||||
| 855 | F016F04249 | 2.86 | 3.46 | |
