Here you will find all available parts and drawings of the 'Bosch 0600825103 ( ART30DF )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

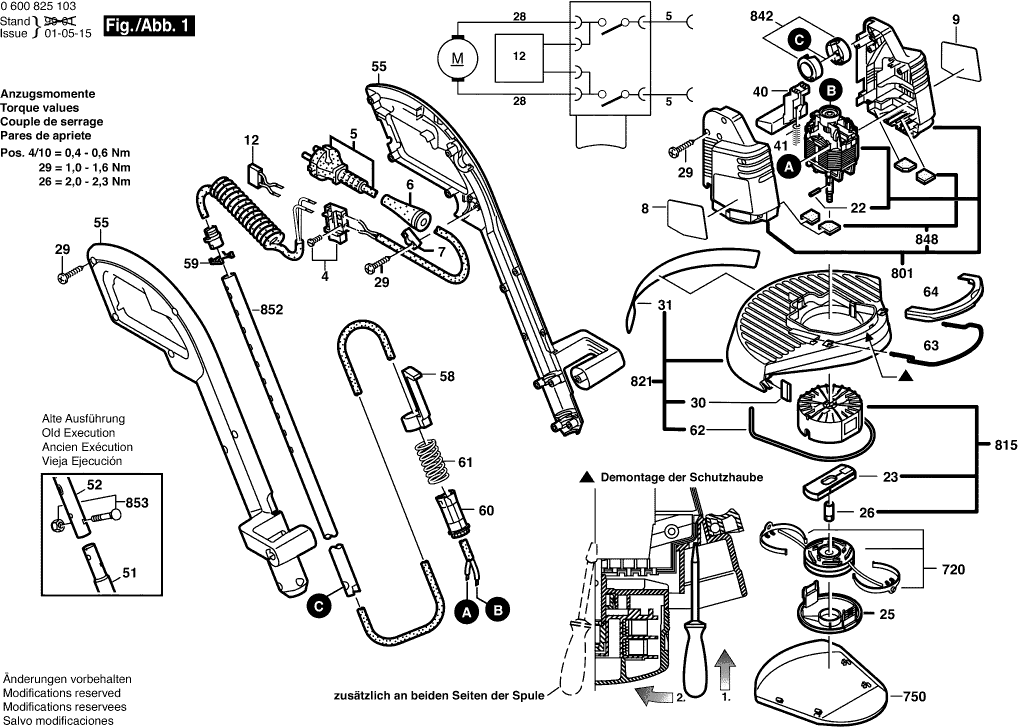

Technical drawing of model Bosch 0600825103 ( ART30DF )
Spare parts list of model Bosch 0600825103 ( ART30DF )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 4 | 1607200116 | |||
| No longer available, no replacement | ||||
| 5 | 2604460255 | |||
| Grommet Ø7,2-Ø9,5x81 MM | ||||
| 6 | 1600703026 | 1.70 | 2.06 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| Nameplate | ||||
| 8 | 1601118428 | 1.94 | 2.35 | |
| Manufacturer's nameplate | ||||
| 9 | 1601118434 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 12 | 1607328028 | |||
| Slotted Spring Pin 3x16 DIN 1481 | ||||
| 22 | 2917760079 | 0.83 | 1.00 | |
| Pusher | ||||
| 23 | 1601099025 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 25 | 1605500191 | |||
| Plastic Nut M6 | ||||
| 26 | 1603349020 | 2.71 | 3.28 | |
| Oval-Head Screw 4x18 MM,TORX T20 | ||||
| 29 | 2914201506 | 0.83 | 1.00 | |
| Cutter Plate | ||||
| 30 | 1608635042 | 2.71 | 3.28 | |
| Reference Plate | ||||
| 31 | 1601118435 | 2.71 | 3.28 | |
| Release Lever | ||||
| 40 | 1601990003 | 2.71 | 3.28 | |
| Compression Spring | ||||
| 41 | 1604610017 | 1.18 | 1.43 | |
| Handle Cover GREEN | ||||
| 55 | 1605133043 | 13.93 | 16.86 | |
| Guide Sleeve BLACK | ||||
| 58 | 1600499008 | 2.24 | 2.71 | |
| Stop Plate | ||||
| 59 | 1602388032 | 1.18 | 1.43 | |
| Spring Sleeve | ||||
| 60 | 1600499009 | 1.94 | 2.35 | |
| Compression Spring | ||||
| 61 | 1604615013 | 2.24 | 2.71 | |
| Guide Bracket | ||||
| 62 | 1604690011 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 63 | 1604690013 | |||
| No longer available, no replacement | ||||
| 64 | 1608640080 | |||
| No longer available, no replacement | ||||
| 720 | 1608190020 | |||
| No longer available, no replacement | ||||
| 750 | 1608190023 | |||
| Motor Housing GREEN | ||||
| 801 | 1607000325 | 67.25 | 81.37 | |
| No longer available, no replacement | ||||
| 815 | 1606610139 | |||
| Protective Cover | ||||
| 821 | 1605510247 | 20.42 | 24.71 | |
| Catch Disk | ||||
| 842 | 1600190033 | 2.71 | 3.28 | |
| Rubber Plate | ||||
| 848 | 1601006009 | 1.94 | 2.35 | |
| Guide Tube | ||||
| 852 | 1607000868 | 13.93 | 16.86 | |
| Round-Head Bolt | ||||
| 853 | 1607000255 | 5.83 | 7.05 | |
