Here you will find all available parts and drawings of the 'Bosch 3600HA5E00 ( ART26-18LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

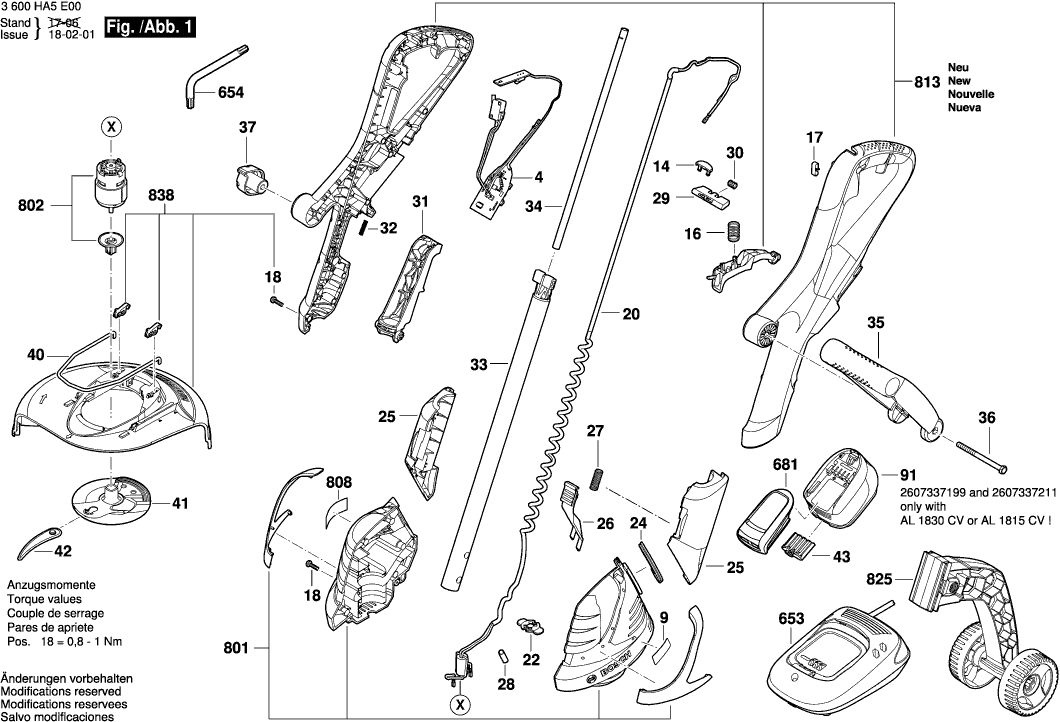

Technical drawing of model Bosch 3600HA5E00 ( ART26-18LI )
Spare parts list of model Bosch 3600HA5E00 ( ART26-18LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Electronic Assembly | ||||
| 4 | 2609005924 | 36.85 | 44.59 | |
| Manufacturer's nameplate ART 26-18 LI | ||||
| 9 | 160111C03G | 1.94 | 2.35 | |
| Led Display | ||||
| 14 | 2609005953 | 1.18 | 1.43 | |
| Spring | ||||
| 16 | 2609005925 | 0.83 | 1.00 | |
| Spring | ||||
| 17 | 2609007093 | 0.83 | 1.00 | |
| Screw 4x16 | ||||
| 18 | 2603490022 | 0.83 | 1.00 | |
| Connecting Cable | ||||
| 20 | 1600A011GG | 11.88 | 14.37 | |
| Mounting Plate | ||||
| 22 | 2609007436 | 0.83 | 1.00 | |
| Contacting element | ||||
| 24 | 2609005954 | 0.83 | 1.00 | |
| Supplementary Housing | ||||
| 25 | 1600A00Z7T | 4.10 | 4.96 | |
| Locking Unit | ||||
| 26 | 2609006030 | 0.83 | 1.00 | |
| Spring | ||||
| 27 | 2609005955 | 0.83 | 1.00 | |
| Spacer | ||||
| 28 | 2609007609 | 0.83 | 1.00 | |
| Safety Switch | ||||
| 29 | 2609006040 | 0.83 | 1.00 | |
| Switch Spring | ||||
| 30 | 2609001975 | 0.83 | 1.00 | |
| Adjustment Knob | ||||
| 31 | 2609006034 | 4.70 | 5.69 | |
| Spring | ||||
| 32 | 2609005961 | 0.83 | 1.00 | |
| Pipe | ||||
| 33 | 2609007113 | 10.73 | 12.98 | |
| Guide Tube | ||||
| 34 | 2609006272 | 1.70 | 2.06 | |
| Handle | ||||
| 35 | 2609005974 | 3.31 | 4.01 | |
| Bolt | ||||
| 36 | 2609006298 | 0.83 | 1.00 | |
| Knob | ||||
| 37 | 2609005975 | 1.70 | 2.06 | |
| Protector | ||||
| 40 | 2609006039 | 1.94 | 2.35 | |
| Disc | ||||
| 41 | 2609007084 | 4.70 | 5.69 | |
| Blade | ||||
| 42 | 2609007089 | 0.83 | 1.00 | |
| Blade Holder | ||||
| 43 | 2609005968 | 7.58 | 9.17 | |
| Battery Pack PBA 18V 2,5Ah W-B 45Wh | ||||
| 91 | 1607A350RU | 73.72 | 89.20 | |
| Battery Pack PBA 18V 2,0 Ah W-B | ||||
| 91 | 2607337211 | 73.72 | 89.20 | |
| Battery Pack PBA 18V/1,5 Ah W-A | ||||
| 91 | 2607337187 | 57.10 | 69.09 | |
| Battery Pack PBA 18V/1,5 Ah W-A | ||||
| 91 | 1607A350JM | 55.25 | 66.85 | |
| Charger GB AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225967 | 67.25 | 81.37 | |
| Charger AUS AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225969 | 67.25 | 81.37 | |
| Fast Charger EU AL 2215 CV 230/14,4-18V, 1h | ||||
| 653 | 2607225471 | 55.25 | 66.85 | |
| Fast Charger EU AL 1830 CV 230/14,4-18V 1h | ||||
| 653 | 2607225965 | 44.82 | 54.23 | |
| Charger EU AL 18V-20 230V 2A | ||||
| 653 | 2607226517 | 26.84 | 32.48 | |
| Screwdriver Torx 20 | ||||
| 654 | 1600A004D0 | 4.70 | 5.69 | |
| Battery Holder für 14,4/18V | ||||
| 681 | 1600A007ST | 49.56 | 59.97 | |
| Housing Base | ||||
| 801 | 2609007344 | 12.41 | 15.02 | |
| DC motor | ||||
| 802 | 2609007345 | 26.84 | 32.48 | |
| Nameplate | ||||
| 808 | 160111A2NW | 1.94 | 2.35 | |
| Nameplate | ||||
| 808 | 2609007354 | 1.84 | 2.23 | |
| Upper Housing | ||||
| 813 | 1607000CG8 | 15.71 | 19.01 | |
| Wheel Set | ||||
| 825 | 2609007342 | 8.45 | 10.22 | |
| Protective Cover | ||||
| 838 | 2609007347 | 10.73 | 12.98 | |
