Here you will find all available parts and drawings of the 'Bosch 0600828403 ( ART25GSAV )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

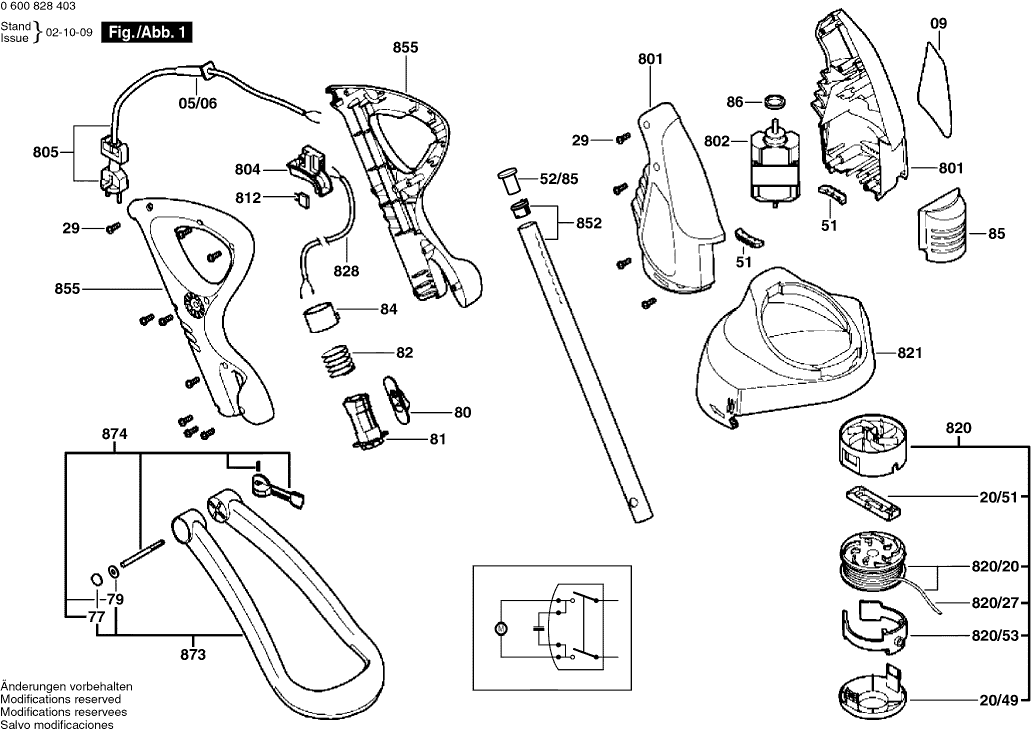

Technical drawing of model Bosch 0600828403 ( ART25GSAV )
Spare parts list of model Bosch 0600828403 ( ART25GSAV )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Grommet | ||||
| 05/06 | F016T44500 | 1.18 | 1.43 | |
| Sticker | ||||
| 09 | F016L63150 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 20/49 | F016L63113 | |||
| No longer available, no replacement | ||||
| 20/51 | F016L63109 | |||
| Self-Cutting Screw 4x19 MM | ||||
| 29 | F016T49429 | 0.83 | 1.00 | |
| Rubber-Inter Calation | ||||
| 51 | F016L63105 | 1.18 | 1.43 | |
| Spring retaining ring | ||||
| 77 | F016L63568 | 0.83 | 1.00 | |
| Sticker | ||||
| 79 | F016L57388 | 1.70 | 2.06 | |
| Push-Button | ||||
| 80 | F016L62530 | 1.70 | 2.06 | |
| Clamp | ||||
| 81 | F016L64149 | 2.71 | 3.28 | |
| Compression Spring | ||||
| 82 | F016L62532 | 0.83 | 1.00 | |
| Clamping Ring | ||||
| 84 | F016L62569 | 1.94 | 2.35 | |
| Molded Part | ||||
| 85 | F016L63114 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 86 | F016L63106 | |||
| Housing Set | ||||
| 801 | F016103128 | 3.31 | 4.01 | |
| Motor | ||||
| 802 | F016L63104 | 29.75 | 36.00 | |
| Parts Set | ||||
| 804 | F016103157 | 2.71 | 3.28 | |
| Power supply cord | ||||
| 805 | F016102997 | 4.10 | 4.96 | |
| Suppression Capacitor | ||||
| 812 | F016103155 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 820 | F016103132 | |||
| Cutting line cartridge | ||||
| 820/20 | F016103131 | 11.88 | 14.37 | |
| Plastic Cable | ||||
| 820/27 | F016102777 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 820/53 | F016102778 | |||
| Protective Cover | ||||
| 821 | F016102779 | 23.75 | 28.74 | |
| Connecting Cable | ||||
| 828 | F016103161 | 4.10 | 4.96 | |
| Guide Tube | ||||
| 852 | F016103137 | 6.54 | 7.91 | |
| Housing Set | ||||
| 855 | F016103134 | 3.31 | 4.01 | |
| Auxiliary Handle | ||||
| 873 | F016102843 | 9.53 | 11.53 | |
| Locking Pin | ||||
| 874 | F016102957 | 4.70 | 5.69 | |
