Here you will find all available parts and drawings of the 'Bosch 0600822403 ( ART25F )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

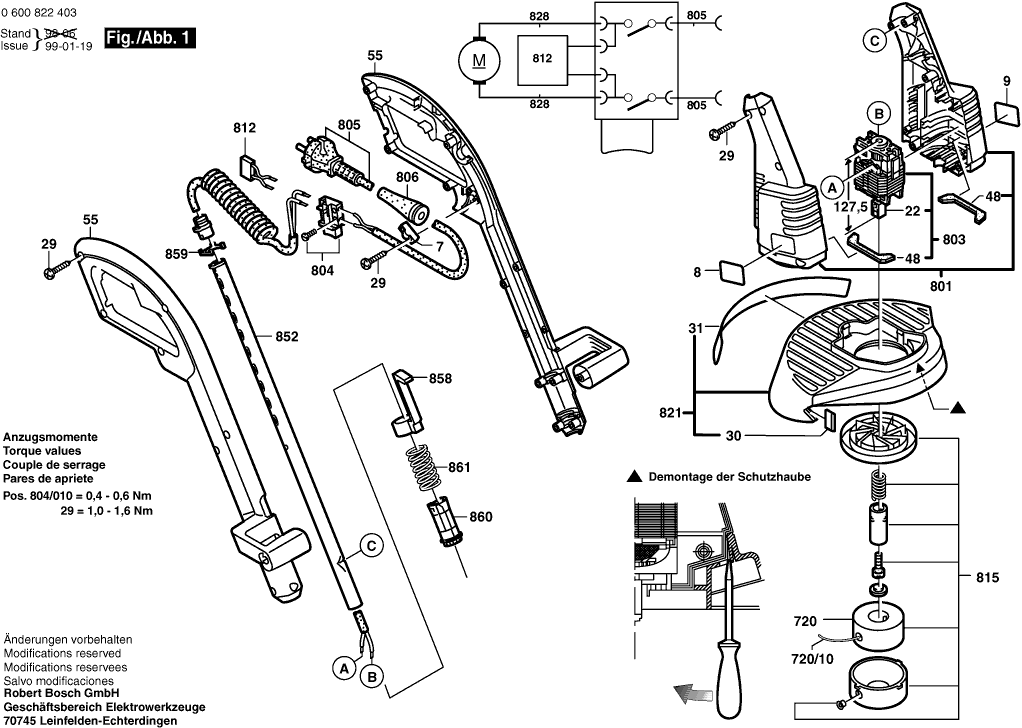

Technical drawing of model Bosch 0600822403 ( ART25F )

Spare parts list of model Bosch 0600822403 ( ART25F )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Cable Clip
7 2601035001 1.18 1.43
Nameplate
8 1601118969 2.71 3.28
Manufacturer's nameplate
9 1601118035 2.71 3.28
Support clamp
22 1608040116 8.45 10.22
Oval-Head Screw 4x18 MM,TORX T20
29 2914201506 0.83 1.00
Cutter Plate
30 1608635042 2.71 3.28
Reference Plate
31 1601118435 2.71 3.28
Rubber Plate
48 1601016012 1.94 2.35
Handle Cover GREEN
55 1605133040 13.93 16.86
Cutting line cartridge
720 F016800002 0.83 1.00
No longer available, no replacement
720/10 1604700004
Motor Housing GREEN
801 1607000849 11.88 14.37
Alternating-Current Motor
803 1607000850 67.25 81.37
No longer available, no replacement
804 1607200116
No longer available, no replacement
805 2604460255
Grommet Ø7,2-Ø9,5x81 MM
806 1600703026 1.70 2.06
No longer available, no replacement
812 1607328028
No longer available, no replacement
815 F016102658
Protective Cover
821 1607000954 13.93 16.86
Guide Tube
852 1607000869 13.93 16.86
Guide Sleeve BLACK
858 1600499008 2.24 2.71
Stop Plate
859 1602388032 1.18 1.43
Spring Sleeve
860 1600499009 1.94 2.35
Compression Spring
861 1604615013 2.24 2.71
