Here you will find all available parts and drawings of the 'Bosch 0600822103 (ART25F)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

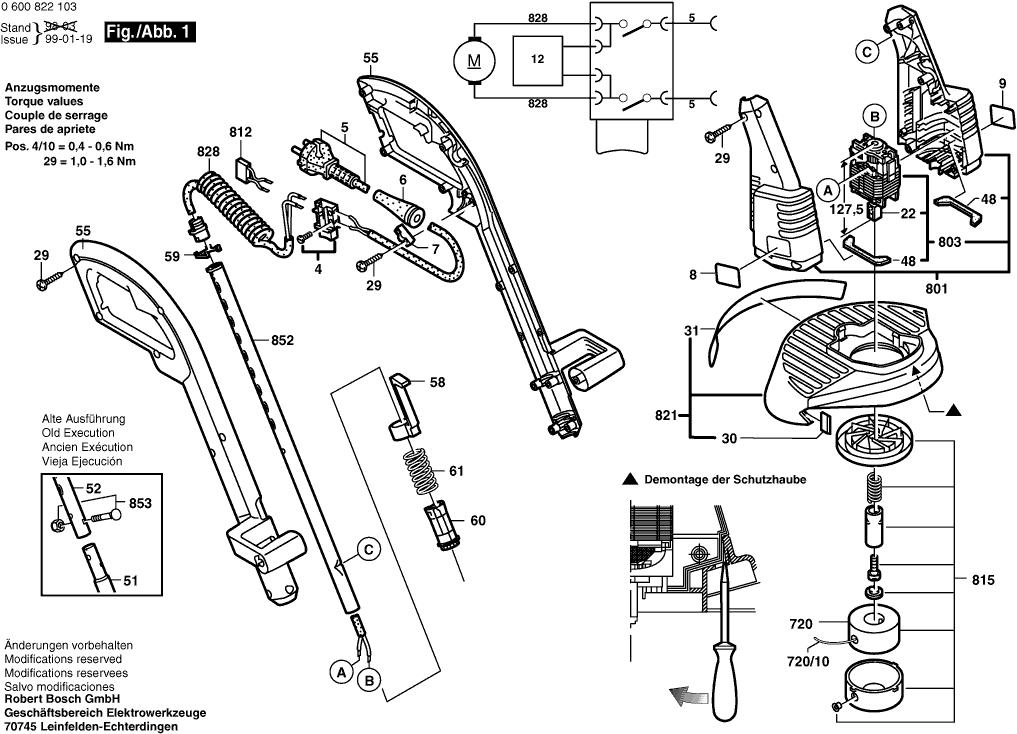

Technical drawing of model Bosch 0600822103 (ART25F)
Spare parts list of model Bosch 0600822103 (ART25F)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 4 | 1607200116 | |||
| No longer available, no replacement | ||||
| 5 | 2604460255 | |||
| Grommet | ||||
| 6 | 1600703026 | 2.08 | 2.52 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Nameplate | ||||
| 8 | 1601118017 | 3.44 | 4.16 | |
| Manufacturer's nameplate | ||||
| 9 | 1601118035 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 22 | 1608040116 | |||
| Oval-Head Screw | ||||
| 29 | 2914201506 | 1.00 | 1.21 | |
| Cutter Plate | ||||
| 30 | 1608635042 | 3.44 | 4.16 | |
| Reference Plate | ||||
| 31 | 1601118166 | 4.94 | 5.98 | |
| Rubber Plate | ||||
| 48 | 1601016012 | 2.40 | 2.90 | |
| Handle Cover GREEN | ||||
| 55 | 1605133040 | 16.79 | 20.32 | |
| Guide Sleeve BLACK | ||||
| 58 | 1600499008 | 2.86 | 3.46 | |
| Stop Plate | ||||
| 59 | 1602388032 | 1.49 | 1.80 | |
| Spring Sleeve | ||||
| 60 | 1600499009 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 61 | 1604615013 | 2.86 | 3.46 | |
| ProTap spool for Easy/Combi trimmer | ||||
| 720 | F016800175 | 14.00 | 16.94 | |
| Cutting line cartridge | ||||
| 720 | F016800002 | 9.50 | 11.50 | |
| No longer available, no replacement | ||||
| 720/10 | 1604700004 | |||
| Alternating-Current Motor | ||||
| 801 | 1607220033 | 71.68 | 86.73 | |
| Alternating-Current Motor | ||||
| 803 | 1607220033 | 71.68 | 86.73 | |
| No longer available, no replacement | ||||
| 812 | 1607328028 | |||
| No longer available, no replacement | ||||
| 815 | F016102658 | |||
| No longer available, no replacement | ||||
| 821 | 1607000954 | |||
| Connecting Cable | ||||
| 828 | 1604420024 | 5.81 | 7.03 | |
| Guide Tube | ||||
| 852 | 1607000870 | 13.13 | 15.89 | |
| Round-Head Bolt | ||||
| 853 | 1607000255 | 7.46 | 9.03 | |
