Here you will find all available parts and drawings of the 'Bosch 0600821003 ( ART23 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

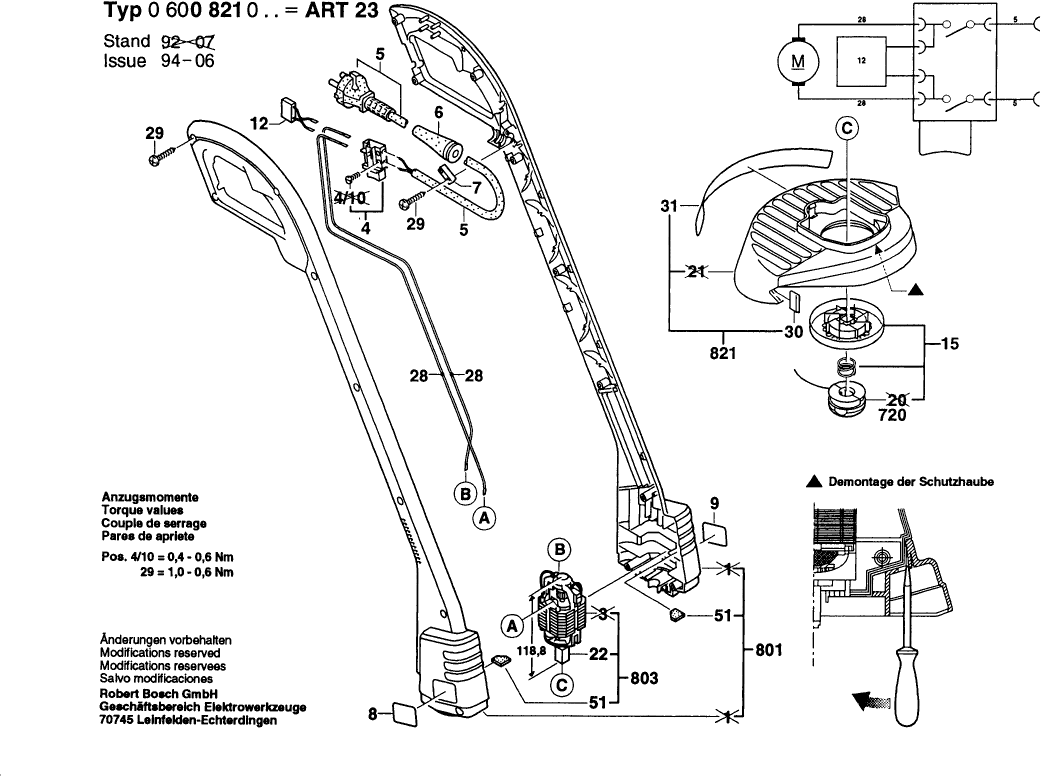

Technical drawing of model Bosch 0600821003 ( ART23 )
Spare parts list of model Bosch 0600821003 ( ART23 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 4 | 1607200116 | |||
| No longer available, no replacement | ||||
| 5 | 2604460255 | |||
| Grommet | ||||
| 6 | 2609005766 | 2.24 | 2.71 | |
| Grommet Ø7,2-Ø9,5x81 MM | ||||
| 6 | 1600703026 | 1.70 | 2.06 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 12 | 1607328028 | |||
| No longer available, no replacement | ||||
| 15 | 1606610138 | |||
| Support clamp | ||||
| 22 | 1608040113 | 1.94 | 2.35 | |
| Connecting Cable L=825 MM WHITE | ||||
| 28 | 1604448012 | 1.94 | 2.35 | |
| Oval-Head Screw 4x18 MM,TORX T20 | ||||
| 29 | 2914201506 | 0.83 | 1.00 | |
| Cutter Plate | ||||
| 30 | 1608635042 | 2.71 | 3.28 | |
| Reference Plate | ||||
| 31 | 1601118165 | 2.71 | 3.28 | |
| Rubber Plate | ||||
| 51 | 1601006007 | 1.18 | 1.43 | |
| Rubber Collar | ||||
| 52 | 1601015029 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 720 | F016102388 | |||
| Motor Housing GREEN | ||||
| 801 | 1607000292 | 20.42 | 24.71 | |
| Alternating-Current Motor | ||||
| 803 | 1607220045 | 18.19 | 22.01 | |
| Protective Cover | ||||
| 821 | 1607000949 | 18.19 | 22.01 | |
