Here you will find all available parts and drawings of the 'Bosch 06008279A3 (ART23GFSV)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

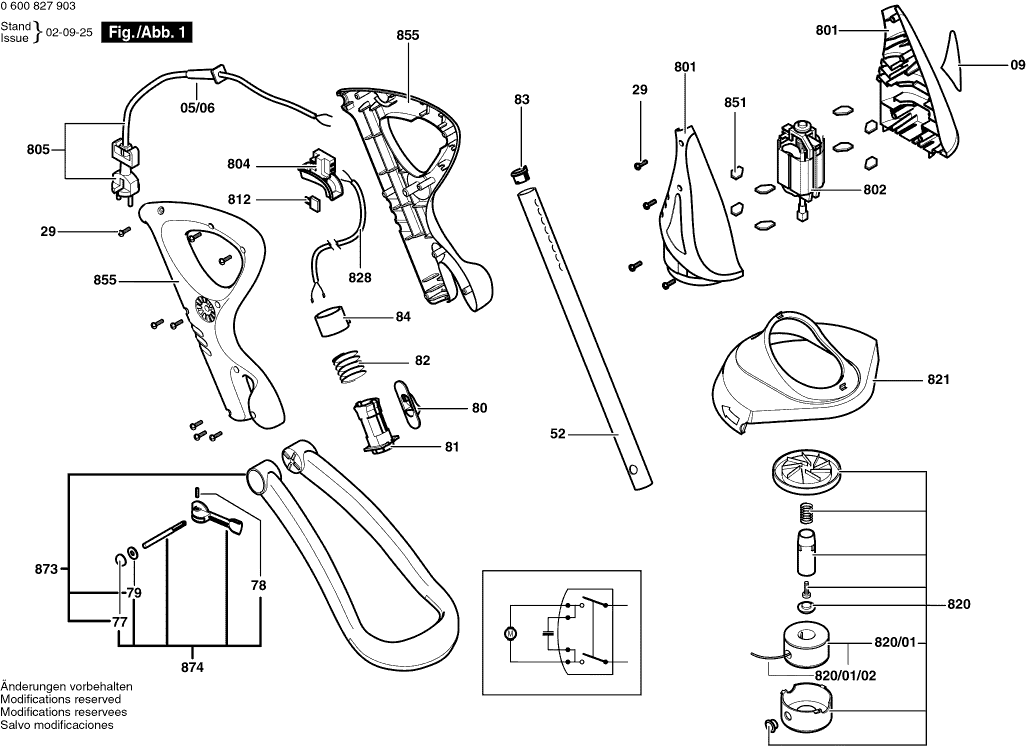

Technical drawing of model Bosch 06008279A3 (ART23GFSV)
Spare parts list of model Bosch 06008279A3 (ART23GFSV)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Grommet | ||||
| 05/06 | F016T44500 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 09 | F016L62566 | |||
| Self-Cutting Screw | ||||
| 29 | F016T49429 | 1.00 | 1.21 | |
| Guide Tube | ||||
| 52 | F016L64211 | 8.35 | 10.10 | |
| Guide | ||||
| 52/85 | F016L64225 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 77 | F016L63568 | 1.00 | 1.21 | |
| Straight Pin | ||||
| 78 | F016T56145 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 79 | F016L57338 | 2.86 | 3.46 | |
| Push-Button | ||||
| 80 | F016L62530 | 2.08 | 2.52 | |
| Clamp | ||||
| 81 | F016L64149 | 3.44 | 4.16 | |
| Compression Spring | ||||
| 82 | F016L62532 | 1.00 | 1.21 | |
| Sealing cap | ||||
| 83 | F016L64224 | 1.49 | 1.80 | |
| Clamping Ring | ||||
| 84 | F016L62569 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 801 | F016103127 | |||
| No longer available, no replacement | ||||
| 802 | 1607220045 | |||
| Parts Set | ||||
| 804 | F016103157 | 3.44 | 4.16 | |
| Power supply cord | ||||
| 805 | F016102997 | 4.94 | 5.98 | |
| Suppression Capacitor | ||||
| 812 | F016103155 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 820 | F016102658 | |||
| Cutting line cartridge | ||||
| 820/01 | F016102389 | 12.82 | 15.51 | |
| Nylon Line | ||||
| 820/01/02 | F016102387 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 821 | F016102660 | |||
| Connecting Cable | ||||
| 828 | F016103297 | 6.73 | 8.14 | |
| Parts Set | ||||
| 851 | F016103139 | 2.08 | 2.52 | |
| Housing Set | ||||
| 855 | F016103134 | 4.18 | 5.06 | |
| Auxiliary Handle | ||||
| 873 | F016102843 | 11.37 | 13.76 | |
| Locking Pin | ||||
| 874 | F016102957 | 5.81 | 7.03 | |
