Here you will find all available parts and drawings of the 'Bosch 0600827203 ( ART23GFS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

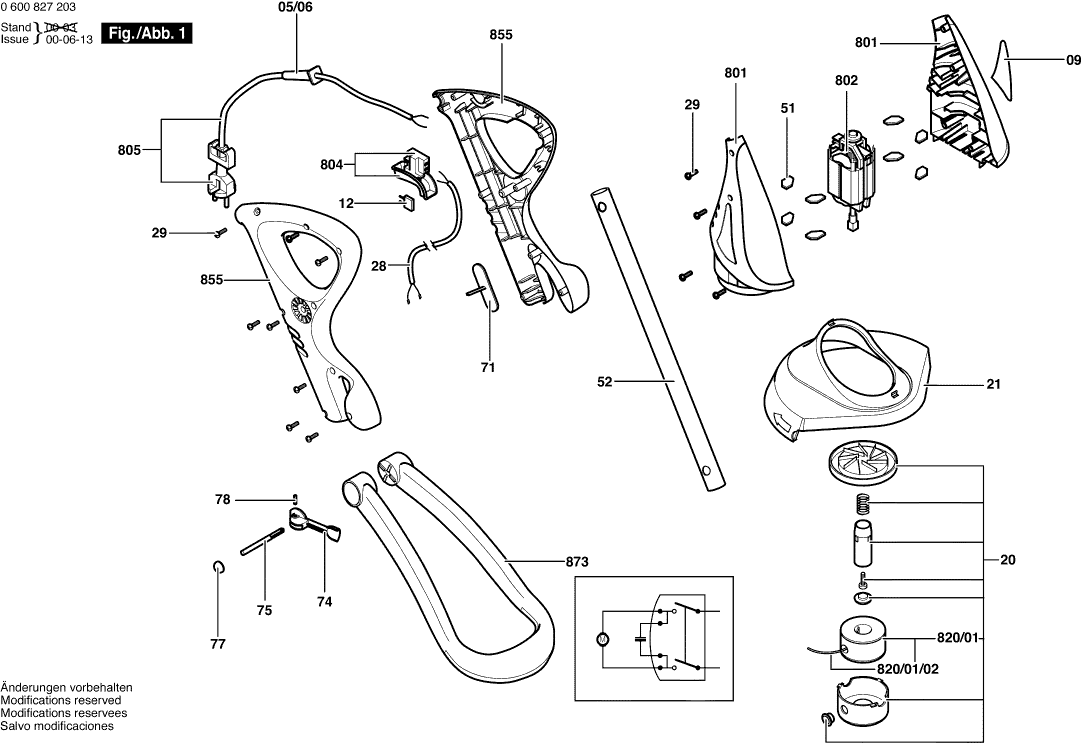

Technical drawing of model Bosch 0600827203 ( ART23GFS )
Spare parts list of model Bosch 0600827203 ( ART23GFS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Grommet | ||||
| 05/06 | F016T44500 | 1.18 | 1.43 | |
| Sticker | ||||
| 09 | F016L62563 | 2.71 | 3.28 | |
| Condenser | ||||
| 12 | F016L36952 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 20 | F016102658 | |||
| No longer available, no replacement | ||||
| 21 | F016102660 | |||
| Connecting Cable | ||||
| 28 | F016L62877 | 2.24 | 2.71 | |
| Special Screw 4x19 MM | ||||
| 29 | F016L62029 | 0.83 | 1.00 | |
| Rubber-Inter Calation | ||||
| 51 | F016L62571 | 0.83 | 1.00 | |
| Guide Tube | ||||
| 52 | F016L62506 | 6.54 | 7.91 | |
| Sealing cap | ||||
| 71 | F016L62572 | 0.83 | 1.00 | |
| Parts Set | ||||
| 74 | F016102842 | 29.75 | 36.00 | |
| Parts Set | ||||
| 75 | F016102842 | 29.75 | 36.00 | |
| Cap | ||||
| 77 | F016L36262 | 0.83 | 1.00 | |
| Straight Pin | ||||
| 78 | F016T56145 | 0.83 | 1.00 | |
| Housing Set | ||||
| 801 | F016103127 | 4.10 | 4.96 | |
| Alternating-Current Motor | ||||
| 802 | 1607220045 | 18.19 | 22.01 | |
| On-Off Switch | ||||
| 804 | F016102352 | 4.70 | 5.69 | |
| Power supply cord | ||||
| 805 | F016102353 | 4.10 | 4.96 | |
| Cutting line cartridge | ||||
| 820/01 | F016102389 | 9.53 | 11.53 | |
| Nylon Line | ||||
| 820/01/02 | F016102387 | 7.58 | 9.17 | |
| New Material | ||||
| 855 | F016102747 | 0.83 | 1.00 | |
| Parts Set | ||||
| 873 | F016102842 | 29.75 | 36.00 | |
