Here you will find all available parts and drawings of the 'Bosch 0600827972 ( ART23COMFORT )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

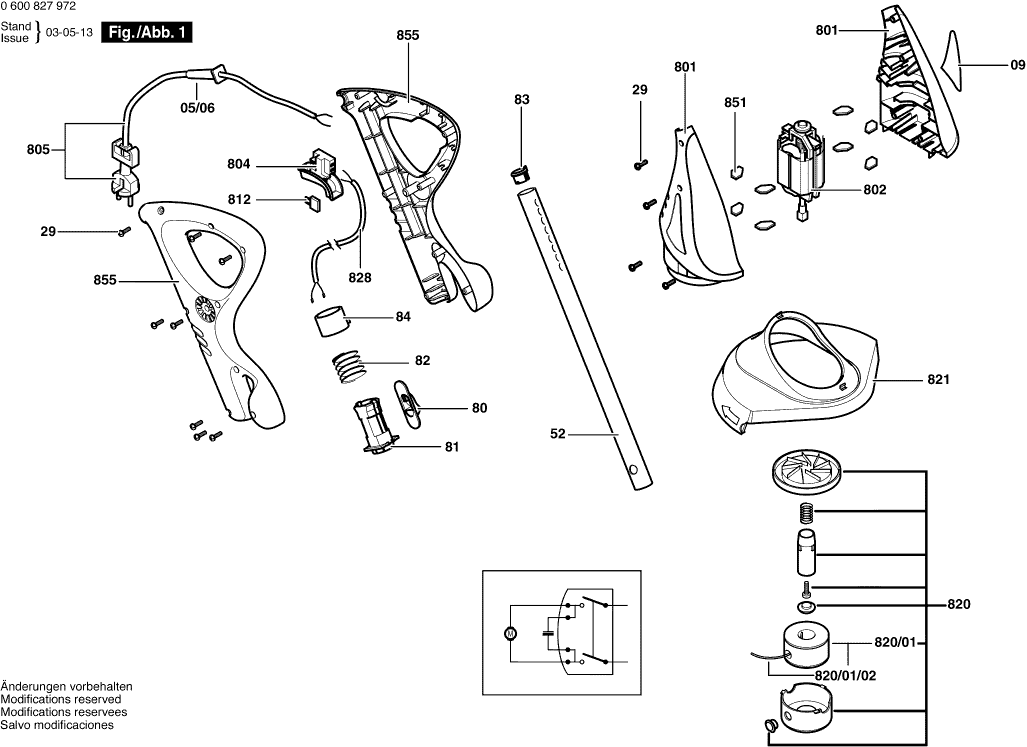

Technical drawing of model Bosch 0600827972 ( ART23COMFORT )
Spare parts list of model Bosch 0600827972 ( ART23COMFORT )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Grommet | ||||
| 05/06 | F016T44500 | 1.18 | 1.43 | |
| Sticker | ||||
| 09 | F016L63520 | 0.83 | 1.00 | |
| Self-Cutting Screw 4x19 MM | ||||
| 29 | F016T49429 | 0.83 | 1.00 | |
| Guide Tube | ||||
| 52 | F016L64211 | 6.54 | 7.91 | |
| No information available, not orderable | ||||
| 52/85 | F016L64225 | |||
| Push-Button | ||||
| 80 | F016L62530 | 1.70 | 2.06 | |
| Clamp | ||||
| 81 | F016L64149 | 2.71 | 3.28 | |
| Compression Spring | ||||
| 82 | F016L62532 | 0.83 | 1.00 | |
| Sealing cap | ||||
| 83 | F016L64224 | 1.18 | 1.43 | |
| Clamping Ring | ||||
| 84 | F016L62569 | 1.94 | 2.35 | |
| Housing Set | ||||
| 801 | F016103127 | 4.10 | 4.96 | |
| Alternating-Current Motor | ||||
| 802 | 1607220045 | 18.19 | 22.01 | |
| Parts Set | ||||
| 804 | F016103157 | 2.71 | 3.28 | |
| Power supply cord | ||||
| 805 | F016102997 | 4.10 | 4.96 | |
| Suppression Capacitor | ||||
| 812 | F016103155 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 820 | F016102658 | |||
| Cutting line cartridge | ||||
| 820/01 | F016102389 | 9.53 | 11.53 | |
| Nylon Line | ||||
| 820/01/02 | F016102387 | 7.58 | 9.17 | |
| No longer available, no replacement | ||||
| 821 | F016102660 | |||
| Connecting Cable | ||||
| 828 | F016103156 | 4.70 | 5.69 | |
| Parts Set | ||||
| 851 | F016103139 | 1.70 | 2.06 | |
| Housing Set | ||||
| 855 | F016103134 | 3.31 | 4.01 | |
