Here you will find all available parts and drawings of the 'Bosch 0600898203 ( ARM32-17ACCU )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

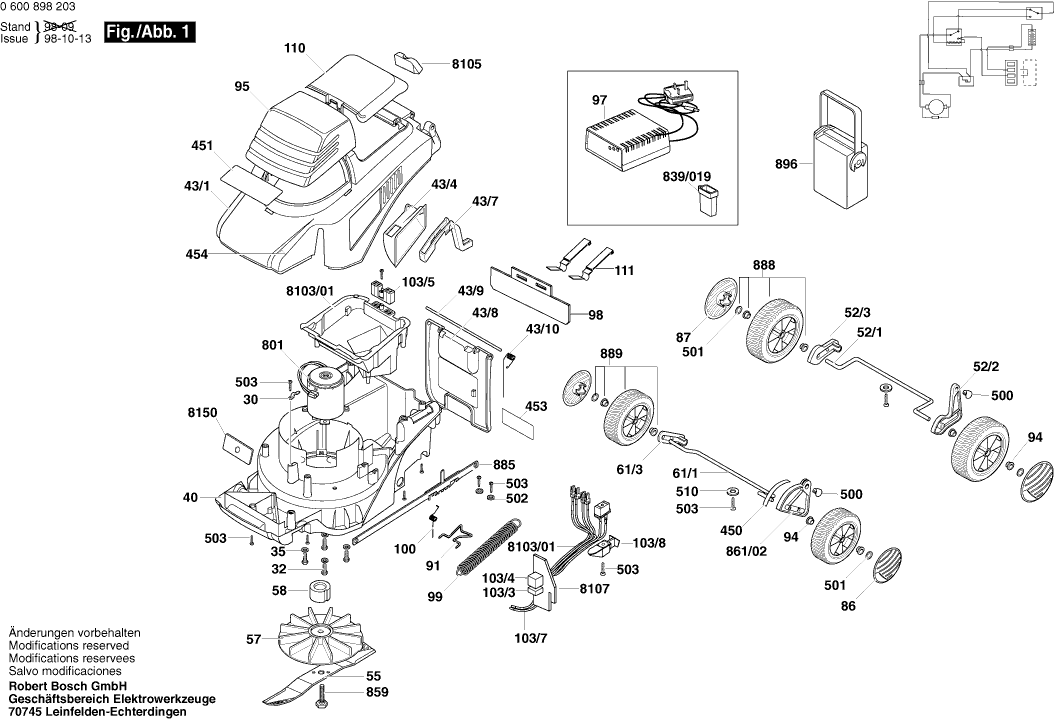

Technical drawing of model Bosch 0600898203 ( ARM32-17ACCU )
Spare parts list of model Bosch 0600898203 ( ARM32-17ACCU )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cable Cleat | ||||
| 30 | F016T46305 | 1.18 | 1.43 | |
| Stud bolt M6x25 MM | ||||
| 32 | F016L11371 | 1.94 | 2.35 | |
| Plain Washer 8,5 MM | ||||
| 35 | F016L35316 | 0.83 | 1.00 | |
| Assembly Wrench | ||||
| 39/11 | F016L61793 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 39/16 | F016L59236 | 0.83 | 1.00 | |
| Pivot Pin | ||||
| 39/17 | F016L62095 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 39/20 | F016L59277 | |||
| Housing | ||||
| 40 | F016L59301 | 29.75 | 36.00 | |
| Housing GREEN | ||||
| 43/1 | F016L62161 | 29.75 | 36.00 | |
| Torsion Spring | ||||
| 43/10 | F016L59352 | 0.83 | 1.00 | |
| Sealing cap | ||||
| 43/4 | F016L59186 | 1.18 | 1.43 | |
| Lever | ||||
| 43/7 | F016L59334 | 0.83 | 1.00 | |
| Guard Flap | ||||
| 43/8 | F016L59311 | 4.10 | 4.96 | |
| Spindle | ||||
| 43/9 | F016L59353 | 0.83 | 1.00 | |
| Axle | ||||
| 52/1 | F016L59315 | 4.70 | 5.69 | |
| No longer available, no replacement | ||||
| 52/2 | F016L59324 | |||
| Spacer | ||||
| 52/3 | F016L59373 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 55 | F016L59314 | |||
| Fan | ||||
| 57 | F016102372 | 11.88 | 14.37 | |
| Adapter | ||||
| 58 | F016L61473 | 12.41 | 15.02 | |
| Axle | ||||
| 61/1 | F016L59315 | 4.70 | 5.69 | |
| Spacer | ||||
| 61/3 | F016L59325 | 0.83 | 1.00 | |
| Handle | ||||
| 75/1 | F016L59351 | 29.75 | 36.00 | |
| Knob | ||||
| 75/10 | F016T49223 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 75/11 | F016T49226 | |||
| Cable Cleat | ||||
| 75/12 | F016T49636 | 1.18 | 1.43 | |
| Self-Cutting Screw 4x19 MM | ||||
| 75/14 | F016T49429 | 0.83 | 1.00 | |
| Adhesive Label | ||||
| 75/15 | F016L59243 | 2.24 | 2.71 | |
| Limit Switch | ||||
| 75/18/02 | F016T49627 | 0.83 | 1.00 | |
| Holder | ||||
| 75/18/03 | F016T49634 | 1.70 | 2.06 | |
| Straight Pin | ||||
| 75/18/04 | F016T56145 | 0.83 | 1.00 | |
| Pivot | ||||
| 75/19 | F016L62851 | 0.83 | 1.00 | |
| Straight Pin | ||||
| 75/20 | F016T56145 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 75/21 | F016T49629 | |||
| No longer available, no replacement | ||||
| 75/22 | F016T49628 | |||
| Switch Cover | ||||
| 75/4 | F016L36449 | 2.24 | 2.71 | |
| Switch Housing | ||||
| 75/5 | F016T49637 | 5.33 | 6.45 | |
| No longer available, no replacement | ||||
| 75/6 | F016T49630 | |||
| On-Off Switch | ||||
| 75/7 | F016L59288 | 2.71 | 3.28 | |
| Positioning Lever | ||||
| 75/8 | F016L62852 | 0.83 | 1.00 | |
| Spiral Spring | ||||
| 75/9 | F016T49633 | 1.70 | 2.06 | |
| Catcher Container | ||||
| 80 | F016102375 | 81.47 | 98.58 | |
| Catcher Container | ||||
| 83 | F016L61774 | 15.71 | 19.01 | |
| Sealing cap | ||||
| 86 | F016L59159 | 0.83 | 1.00 | |
| Sealing cap | ||||
| 87 | F016L59360 | 2.24 | 2.71 | |
| Linkage part | ||||
| 91 | F016L61882 | 4.70 | 5.69 | |
| Bushing | ||||
| 94 | F016L59372 | 0.83 | 1.00 | |
| Motor Hood GREEN | ||||
| 95 | F016L59318 | 5.33 | 6.45 | |
| Charger EU 230/12V | ||||
| 97 | F016102991 | 81.47 | 98.58 | |
| Protective Shield | ||||
| 98 | F016L61602 | 5.83 | 7.05 | |
| Spring | ||||
| 99 | F016L59327 | 2.24 | 2.71 | |
| Torsion Spring | ||||
| 100 | F016L61597 | 0.83 | 1.00 | |
| Miniature circuit breaker | ||||
| 103/3 | F016L61464 | 5.83 | 7.05 | |
| Relay | ||||
| 103/4 | F016102286 | 5.33 | 6.45 | |
| Connector Housing | ||||
| 103/5 | F016L61468 | 0.83 | 1.00 | |
| Connecting Cable | ||||
| 103/7 | F016L62049 | 9.53 | 11.53 | |
| Set ring | ||||
| 103/8 | F016L61796 | 2.24 | 2.71 | |
| Battery Cover | ||||
| 110 | F016L59377 | 7.58 | 9.17 | |
| Leaf Spring | ||||
| 111 | F016L61609 | 2.24 | 2.71 | |
| Sticker | ||||
| 450 | F016L59346 | 2.71 | 3.28 | |
| Sticker | ||||
| 451 | F016L62098 | 2.71 | 3.28 | |
| Reference Plate CAUTION | ||||
| 453 | F016L61442 | 2.71 | 3.28 | |
| Sticker | ||||
| 454 | F016L61268 | 2.71 | 3.28 | |
| Retaining Pin | ||||
| 500 | F016L61747 | 0.83 | 1.00 | |
| Spring retaining ring | ||||
| 501 | F016T46941 | 1.18 | 1.43 | |
| Plain Washer M5 | ||||
| 502 | F016T48428 | 0.83 | 1.00 | |
| Self-Cutting Screw 4x19 MM | ||||
| 503 | F016T49429 | 0.83 | 1.00 | |
| Plain Washer | ||||
| 510 | F016L57338 | 2.24 | 2.71 | |
| DC motor | ||||
| 801 | F016L59389 | 130.32 | 157.69 | |
| Wing Nut | ||||
| 839/018 | F016L66136 | 3.31 | 4.01 | |
| Miniature circuit breaker | ||||
| 839/37 | F016102176 | 2.71 | 3.28 | |
| Hex Screw | ||||
| 859 | F016102169 | 4.70 | 5.69 | |
| Lever | ||||
| 861/02 | F016102101 | 2.71 | 3.28 | |
| Control Bar | ||||
| 875/018 | F016102166 | 10.73 | 12.98 | |
| Connecting Cable | ||||
| 875/03 | F016102170 | 0.83 | 1.00 | |
| Assembly Kit | ||||
| 875/04 | F016103136 | 18.19 | 22.01 | |
| Handle | ||||
| 878 | F016102211 | 11.88 | 14.37 | |
| Indicator Holder | ||||
| 883/01 | F016L59370 | 4.70 | 5.69 | |
| No longer available, no replacement | ||||
| 883/02 | F016L59150 | |||
| Linkage part | ||||
| 885 | F016102106 | 3.31 | 4.01 | |
| Wheel | ||||
| 888 | F016102145 | 8.45 | 10.22 | |
| No longer available, no replacement | ||||
| 889 | F016102146 | |||
| Battery Set 12V,17Ah | ||||
| 896 | F016102152 | 233.78 | 282.87 | |
| Battery Protective Cover | ||||
| 8103/01 | F016102270 | 73.72 | 89.20 | |
| Relay | ||||
| 8103/04 | F016102286 | 5.33 | 6.45 | |
| Miniature circuit breaker | ||||
| 8105 | F016102176 | 2.71 | 3.28 | |
| Relay Mounting | ||||
| 8107 | F016102198 | 5.33 | 6.45 | |
| Balance Weights | ||||
| 8150 | F016102207 | 6.54 | 7.91 | |
