Here you will find all available parts and drawings of the 'Bosch 0600898103 ( ARM32-12ACCU )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

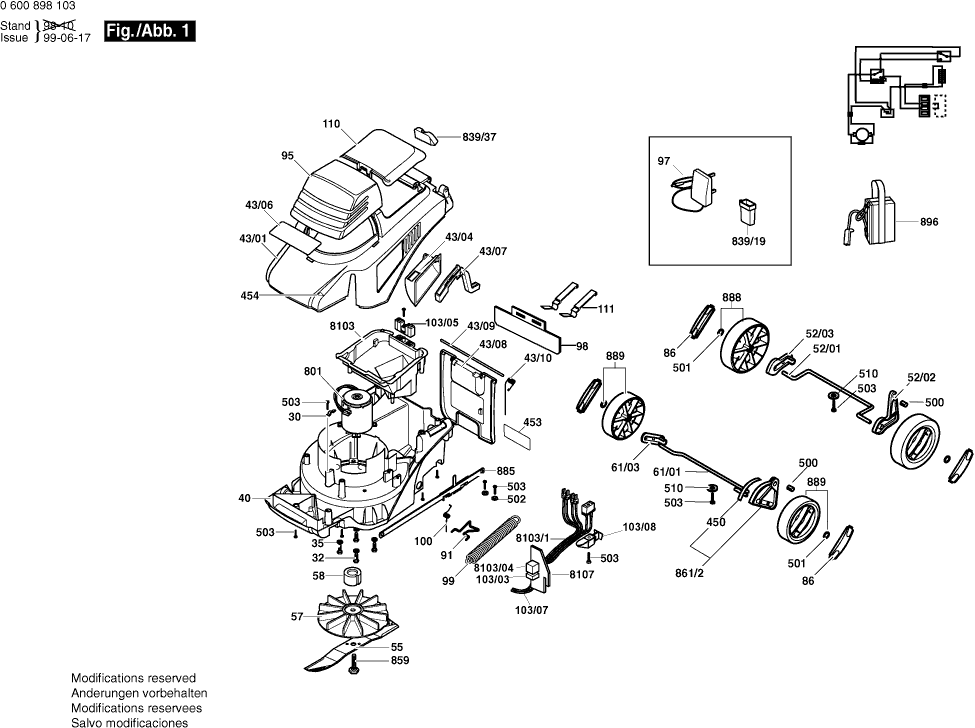

Technical drawing of model Bosch 0600898103 ( ARM32-12ACCU )
Spare parts list of model Bosch 0600898103 ( ARM32-12ACCU )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cable Cleat | ||||
| 30 | F016T46305 | 1.18 | 1.43 | |
| Stud bolt M6x25 MM | ||||
| 32 | F016L11371 | 1.94 | 2.35 | |
| Plain Washer 8,5 MM | ||||
| 35 | F016L35316 | 0.83 | 1.00 | |
| Assembly Wrench | ||||
| 39/11 | F016L61793 | 1.94 | 2.35 | |
| Cable Clip | ||||
| 39/16 | F016L59236 | 0.83 | 1.00 | |
| Pivot Pin | ||||
| 39/17 | F016L62095 | 0.83 | 1.00 | |
| Trunnion M6 x48 | ||||
| 39/20 | F016T49623 | 2.24 | 2.71 | |
| Housing | ||||
| 40 | F016L59301 | 29.75 | 36.00 | |
| Housing GREEN | ||||
| 43/01 | F016L62161 | 29.75 | 36.00 | |
| Sealing cap | ||||
| 43/04 | F016L59186 | 1.18 | 1.43 | |
| Sticker | ||||
| 43/06 | F016L62108 | 2.24 | 2.71 | |
| Lever | ||||
| 43/07 | F016L59334 | 0.83 | 1.00 | |
| Guard Flap | ||||
| 43/08 | F016L59311 | 4.10 | 4.96 | |
| Spindle | ||||
| 43/09 | F016L59353 | 0.83 | 1.00 | |
| Torsion Spring | ||||
| 43/10 | F016L59352 | 0.83 | 1.00 | |
| Axle | ||||
| 52/01 | F016L59315 | 4.70 | 5.69 | |
| No longer available, no replacement | ||||
| 52/02 | F016L59324 | |||
| Spacer | ||||
| 52/03 | F016L59373 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 55 | F016L59314 | |||
| Fan | ||||
| 57 | F016102372 | 11.88 | 14.37 | |
| Adapter | ||||
| 58 | F016L61473 | 12.41 | 15.02 | |
| Axle | ||||
| 61/01 | F016L59315 | 4.70 | 5.69 | |
| Spacer | ||||
| 61/03 | F016L59325 | 0.83 | 1.00 | |
| Handle | ||||
| 75/01 | F016L57062 | 20.42 | 24.71 | |
| Clamping Piece | ||||
| 75/06 | F016T56180 | 4.10 | 4.96 | |
| On-Off Switch | ||||
| 75/07 | F016L59288 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 75/08 | F016L65676 | |||
| No longer available, no replacement | ||||
| 75/09 | F016T49845 | |||
| No longer available, no replacement | ||||
| 75/11 | F016T49226 | |||
| Self-Cutting Screw 4x19 MM | ||||
| 75/14 | F016T49429 | 0.83 | 1.00 | |
| Sticker | ||||
| 75/15 | F016L62122 | 2.71 | 3.28 | |
| Catcher Container | ||||
| 80 | F016L62806 | 11.88 | 14.37 | |
| Catcher Container | ||||
| 83 | F016L61773 | 11.88 | 14.37 | |
| No longer available, no replacement | ||||
| 86 | F016L62104 | |||
| Linkage part | ||||
| 91 | F016L61882 | 4.70 | 5.69 | |
| Motor Hood GREEN | ||||
| 95 | F016L59318 | 5.33 | 6.45 | |
| Battery Charger EU 230/12V WITH ADAPTER | ||||
| 97 | F016L63308 | 101.94 | 123.35 | |
| Protective Shield | ||||
| 98 | F016L61602 | 5.83 | 7.05 | |
| Spring | ||||
| 99 | F016L59327 | 2.24 | 2.71 | |
| Torsion Spring | ||||
| 100 | F016L61597 | 0.83 | 1.00 | |
| Relay Mounting | ||||
| 103/03 | F016102198 | 5.33 | 6.45 | |
| Connector Housing | ||||
| 103/05 | F016L61468 | 0.83 | 1.00 | |
| Connecting Cable | ||||
| 103/07 | F016L62049 | 9.53 | 11.53 | |
| Set ring | ||||
| 103/08 | F016L61796 | 2.24 | 2.71 | |
| Battery Cover | ||||
| 110 | F016L59377 | 7.58 | 9.17 | |
| Leaf Spring | ||||
| 111 | F016L61609 | 2.24 | 2.71 | |
| Sticker | ||||
| 450 | F016L59346 | 2.71 | 3.28 | |
| Reference Plate CAUTION | ||||
| 453 | F016L61442 | 2.71 | 3.28 | |
| Sticker | ||||
| 454 | F016L61268 | 2.71 | 3.28 | |
| Retaining Pin | ||||
| 500 | F016L61747 | 0.83 | 1.00 | |
| Spring retaining ring | ||||
| 501 | F016T46941 | 1.18 | 1.43 | |
| Plain Washer M5 | ||||
| 502 | F016T48428 | 0.83 | 1.00 | |
| Self-Cutting Screw 4x19 MM | ||||
| 503 | F016T49429 | 0.83 | 1.00 | |
| Plain Washer | ||||
| 510 | F016L57338 | 2.24 | 2.71 | |
| DC motor | ||||
| 801 | F016L59389 | 130.32 | 157.69 | |
| Wing Nut | ||||
| 839/18 | F016L66136 | 3.31 | 4.01 | |
| Charging Adapter | ||||
| 839/19 | F016102173 | 10.73 | 12.98 | |
| Miniature circuit breaker | ||||
| 839/37 | F016102176 | 2.71 | 3.28 | |
| Hex Screw | ||||
| 859 | F016102169 | 4.70 | 5.69 | |
| Lever | ||||
| 861/2 | F016102101 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 875/03 | F016102174 | |||
| Assembly Kit | ||||
| 875/04 | F016103136 | 18.19 | 22.01 | |
| Handle | ||||
| 878 | F016102263 | 7.58 | 9.17 | |
| Linkage part | ||||
| 885 | F016102106 | 3.31 | 4.01 | |
| Wheel | ||||
| 888 | F016102102 | 9.53 | 11.53 | |
| Wheel | ||||
| 889 | F016102103 | 4.70 | 5.69 | |
| Battery Set 12Ah | ||||
| 896 | F016102757 | 81.47 | 98.58 | |
| Relay | ||||
| 8103/04 | F016102286 | 5.33 | 6.45 | |
| Battery Protective Cover | ||||
| 8103/1 | F016102270 | 73.72 | 89.20 | |
| Relay Mounting | ||||
| 8107 | F016102198 | 5.33 | 6.45 | |
