Here you will find all available parts and drawings of the 'Bosch 3600H76H00 (AQUATAKGO)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

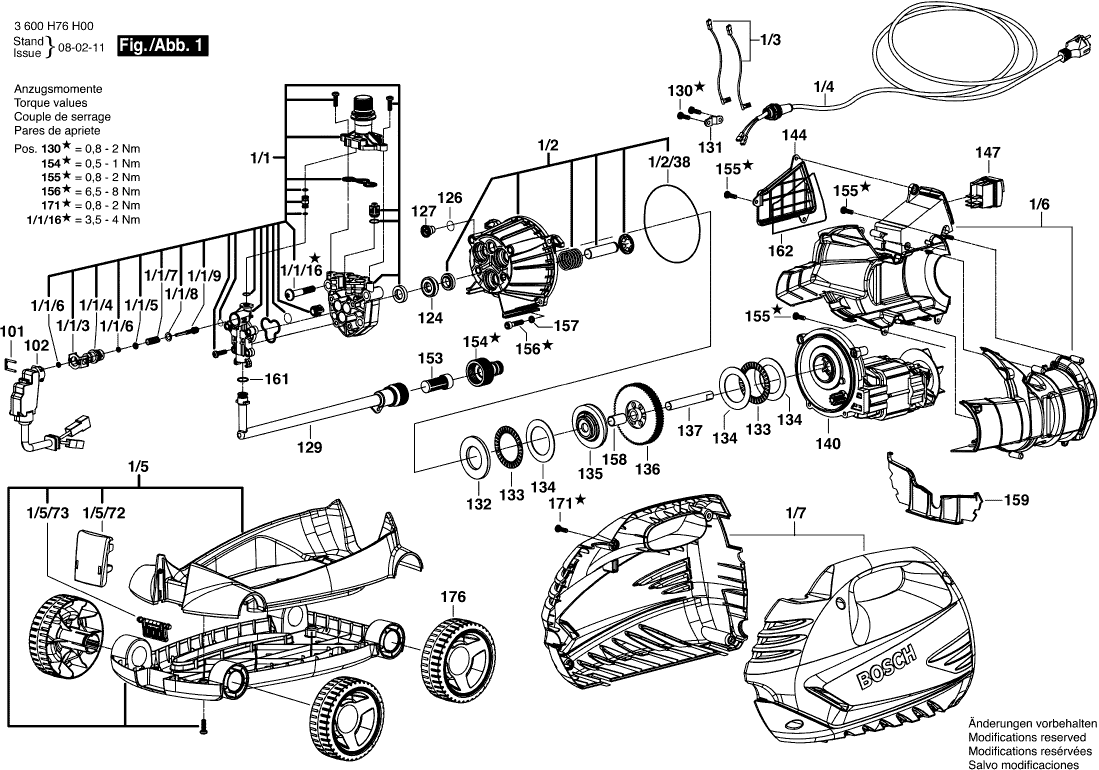

Technical drawing of model Bosch 3600H76H00 (AQUATAKGO)
Spare parts list of model Bosch 3600H76H00 (AQUATAKGO)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cylinder Head | ||||
| 1/1 | F016F03855 | 34.82 | 42.13 | |
| Screw | ||||
| 1/1/16 | F016F03900 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 1/1/3 | F016F03864 | |||
| Nipple | ||||
| 1/1/4 | F016F03865 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 1/1/5 | F016F03866 | |||
| No longer available, no replacement | ||||
| 1/1/6 | F016F03867 | |||
| No longer available, no replacement | ||||
| 1/1/7 | F016F03868 | |||
| O-Ring | ||||
| 1/1/8 | F016F03869 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 1/1/9 | F016F03870 | |||
| Pump Flange | ||||
| 1/2 | F016F03856 | 18.94 | 22.92 | |
| O-Ring | ||||
| 1/2/38 | F016F03901 | 1.00 | 1.21 | |
| Connection Cable | ||||
| 1/3 | F016F03857 | 3.44 | 4.16 | |
| Power supply cord | ||||
| 1/4 | F016F03858 | 11.37 | 13.76 | |
| Trolley | ||||
| 1/5 | F016F03859 | 13.13 | 15.89 | |
| Fastening Clamp | ||||
| 1/5/72 | F016F03902 | 1.00 | 1.21 | |
| Hinge Part | ||||
| 1/5/73 | F016F03903 | 1.00 | 1.21 | |
| Fan Housing | ||||
| 1/6 | F016F03861 | 7.46 | 9.03 | |
| Housing Set | ||||
| 1/7 | F016F03860 | 21.30 | 25.77 | |
| spray gun | ||||
| 2/1 | 2609003235 | 23.90 | 28.92 | |
| Clip | ||||
| 2/1/2 | F016F03914 | 1.00 | 1.21 | |
| Foam Spray Device | ||||
| 2/10 | F016F03893 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 2/10/4 | F016F03541 | |||
| High-Pressure Hose | ||||
| 2/3 | 2609003236 | 43.12 | 52.18 | |
| O-Ring | ||||
| 2/3/2 | F016F03509 | 1.00 | 1.21 | |
| Jet Pipe | ||||
| 2/8 | F016F03892 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 2/8/4 | F016F03541 | |||
| No longer available, no replacement | ||||
| 101 | F016F03862 | |||
| Microswitch | ||||
| 102 | F016F03863 | 9.67 | 11.70 | |
| Bushing | ||||
| 124 | F016F03871 | 2.08 | 2.52 | |
| O-Ring | ||||
| 126 | F016F03873 | 1.00 | 1.21 | |
| Oil Drain Plug | ||||
| 127 | F016F03872 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 129 | F016F03874 | |||
| Screw 4,2x13 | ||||
| 130 | F016F03006 | 1.00 | 1.21 | |
| O-Ring | ||||
| 131 | F016F03761 | 1.00 | 1.21 | |
| Washer | ||||
| 132 | F016F03875 | 2.86 | 3.46 | |
| Bearing | ||||
| 133 | F016F03876 | 2.40 | 2.90 | |
| Washer | ||||
| 134 | F016F03877 | 1.00 | 1.21 | |
| Wobble Plate | ||||
| 135 | F016F03878 | 3.44 | 4.16 | |
| Conversion Gear | ||||
| 136 | F016F03879 | 7.46 | 9.03 | |
| Pin | ||||
| 137 | F016F03880 | 1.00 | 1.21 | |
| Connecting Flange | ||||
| 140 | F016F03881 | 39.14 | 47.36 | |
| Cover | ||||
| 144 | F016F03882 | 2.40 | 2.90 | |
| On-Off Switch | ||||
| 147 | F016F03883 | 1.49 | 1.80 | |
| Filter | ||||
| 153 | F016F03884 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 154 | F016F03359 | |||
| Screw 4x16 | ||||
| 155 | F016F03079 | 1.00 | 1.21 | |
| Screw M5x20 | ||||
| 156 | F016F03022 | 1.00 | 1.21 | |
| Washer | ||||
| 157 | F016F03490 | 1.00 | 1.21 | |
| Bushing | ||||
| 158 | F016F03885 | 1.49 | 1.80 | |
| Cover | ||||
| 159 | F016F03886 | 1.00 | 1.21 | |
| O-Ring | ||||
| 161 | F016F03887 | 1.00 | 1.21 | |
| mat seal | ||||
| 162 | F016F03888 | 1.00 | 1.21 | |
| Screw | ||||
| 171 | F016F03768 | 1.00 | 1.21 | |
| Roller | ||||
| 176 | F016F03889 | 2.08 | 2.52 | |
