Here you will find all available parts and drawings of the 'Bosch 3600H77B00 (AQUATAK150PROX)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

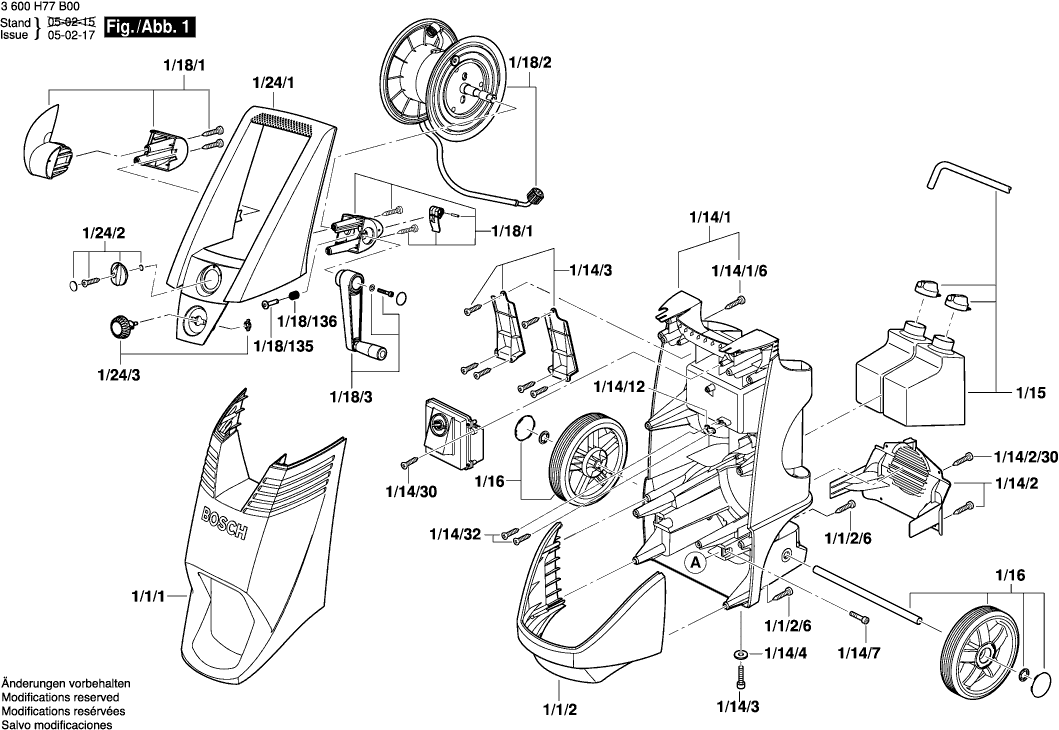

Technical drawing of model Bosch 3600H77B00 (AQUATAK150PROX)
Spare parts list of model Bosch 3600H77B00 (AQUATAK150PROX)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1/1/1 | F016F03577 | 52.45 | 63.46 | |
| Housing | ||||
| 1/1/2 | F016F03500 | 39.14 | 47.36 | |
| Screw | ||||
| 1/1/2/6 | F016F03343 | 2.08 | 2.52 | |
| Parts Set | ||||
| 1/10 | F016F03575 | 98.18 | 118.80 | |
| Seal | ||||
| 1/10/96 | F016F03457 | 23.90 | 28.92 | |
| Parts Set | ||||
| 1/11 | F016F03076 | 31.42 | 38.02 | |
| Motor | ||||
| 1/13 | F016F03477 | 446.77 | 540.59 | |
| Screw M6x20 | ||||
| 1/13/112 | F016F03009 | 1.49 | 1.80 | |
| Housing | ||||
| 1/14/1 | F016F03511 | 155.51 | 188.17 | |
| Screw | ||||
| 1/14/1/6 | F016F03343 | 2.08 | 2.52 | |
| Clamping Piece | ||||
| 1/14/12 | F016F03035 | 3.44 | 4.16 | |
| Housing | ||||
| 1/14/2 | F016F03567 | 11.37 | 13.76 | |
| Screw | ||||
| 1/14/2/30 | F016F03517 | 2.40 | 2.90 | |
| Cover | ||||
| 1/14/3 | F016F03568 | 6.73 | 8.14 | |
| Screw | ||||
| 1/14/3 | F016F03512 | 1.00 | 1.21 | |
| Screw | ||||
| 1/14/30 | F016F03517 | 2.40 | 2.90 | |
| Screw 4;8x16 ZINC | ||||
| 1/14/32 | F016F03034 | 1.00 | 1.21 | |
| Washer | ||||
| 1/14/4 | F016F03513 | 1.00 | 1.21 | |
| Screw | ||||
| 1/14/7 | F016F03512 | 1.00 | 1.21 | |
| Container | ||||
| 1/15 | F016F03581 | 43.12 | 52.18 | |
| Wheel | ||||
| 1/16 | F016F03520 | 43.12 | 52.18 | |
| Valve | ||||
| 1/17 | F016F03054 | 12.82 | 15.51 | |
| Parts Set | ||||
| 1/18/1 | F016F03578 | 14.94 | 18.08 | |
| Hose Holder | ||||
| 1/18/2 | F016F03582 | 273.59 | 331.04 | |
| Handle | ||||
| 1/18/3 | F016F03583 | 39.14 | 47.36 | |
| Parts Set | ||||
| 1/19 | F016F03576 | 110.30 | 133.46 | |
| Power supply cord | ||||
| 1/19/1 | F016F03478 | 64.67 | 78.25 | |
| Housing | ||||
| 1/19/10 | F016F03337 | 3.44 | 4.16 | |
| Screw | ||||
| 1/19/73 | F016F03343 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 1/19/74 | F016F03376 | |||
| Screw | ||||
| 1/19/79 | F016F02894 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 1/19/80 | F016F03101 | |||
| Washer | ||||
| 1/19/92 | F016F03031 | 1.00 | 1.21 | |
| Screw M4x12 | ||||
| 1/19/94 | F016F03032 | 1.00 | 1.21 | |
| Control Head | ||||
| 1/2 | F016F03574 | 98.18 | 118.80 | |
| Washer | ||||
| 1/2/12 | F016F03482 | 1.00 | 1.21 | |
| O-Ring | ||||
| 1/2/15 | F016F03484 | 1.00 | 1.21 | |
| Washer | ||||
| 1/2/16 | F016F03485 | 1.00 | 1.21 | |
| O-Ring 8,73x1,78 MM | ||||
| 1/2/23 | F016F03483 | 1.00 | 1.21 | |
| O-Ring 14,0x1,78 MM | ||||
| 1/2/28 | F016F03487 | 1.00 | 1.21 | |
| O-Ring 12,42x1,78 MM | ||||
| 1/2/29 | F016F03486 | 1.00 | 1.21 | |
| Pressure gauge | ||||
| 1/2/38 | F016F03432 | 31.42 | 38.02 | |
| O-Ring | ||||
| 1/2/43 | F016F03431 | 1.00 | 1.21 | |
| Housing | ||||
| 1/20 | F016F03409 | 10.90 | 13.19 | |
| No longer available, no replacement | ||||
| 1/21 | F016F03441 | |||
| Handle | ||||
| 1/24/1 | F016F03579 | 34.82 | 42.13 | |
| Knob | ||||
| 1/24/2 | F016F03570 | 2.40 | 2.90 | |
| Adjustment Knob | ||||
| 1/24/3 | F016F03580 | 34.82 | 42.13 | |
| Valve | ||||
| 1/5 | F016F03011 | 11.37 | 13.76 | |
| Cylinder Head | ||||
| 1/6 | F016F03435 | 98.18 | 118.80 | |
| Screw | ||||
| 1/6/1 | F016F03436 | 1.49 | 1.80 | |
| O-Ring | ||||
| 1/6/49 | F016F03437 | 1.49 | 1.80 | |
| O-Ring 14x22x6 schwarz | ||||
| 1/6/61 | F016F03438 | 6.73 | 8.14 | |
| Threaded Connection | ||||
| 1/7 | F016F03014 | 14.94 | 18.08 | |
| Housing | ||||
| 1/8 | F016F03439 | 98.18 | 118.80 | |
| O-Ring | ||||
| 1/8/53 | F016F03564 | 1.00 | 1.21 | |
| O-Ring | ||||
| 1/8/54 | F016F03565 | 1.49 | 1.80 | |
| O-Ring 80,60x2,62 | ||||
| 1/8/57 | F016F03016 | 1.49 | 1.80 | |
| Sealing cap | ||||
| 1/8/66 | F016F03070 | 9.67 | 11.70 | |
| Screw | ||||
| 1/8/67 | F016F03440 | 1.00 | 1.21 | |
| Ball Bearing | ||||
| 1/9 | F016F03017 | 31.42 | 38.02 | |
| Handle | ||||
| 2/1 | F016F03549 | 80.26 | 97.11 | |
| Jet Pipe | ||||
| 2/6 | F016F03540 | 64.67 | 78.25 | |
| No longer available, no replacement | ||||
| 2/6/1 | F016F03541 | |||
| No longer available, no replacement | ||||
| 2/8 | F016F03542 | |||
