Here you will find all available parts and drawings of the 'Bosch 3600H76F01 (AQUATAK1200PLUS)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

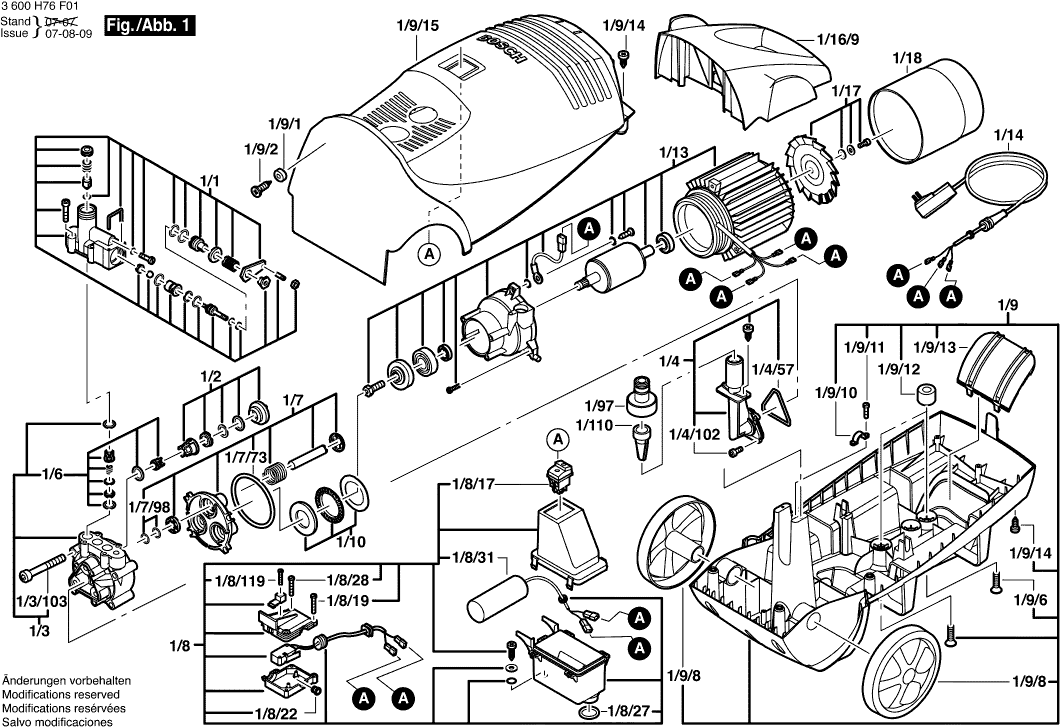

Technical drawing of model Bosch 3600H76F01 (AQUATAK1200PLUS)
Spare parts list of model Bosch 3600H76F01 (AQUATAK1200PLUS)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1/1 | F016F03624 | |||
| Ball Bearing | ||||
| 1/10 | F016F02917 | 34.82 | 42.13 | |
| Strainer | ||||
| 1/110 | F016F02905 | 3.44 | 4.16 | |
| Motor | ||||
| 1/13 | F016F03718 | 352.50 | 426.52 | |
| Power supply cord | ||||
| 1/14 | F016F03386 | 23.90 | 28.92 | |
| Handle | ||||
| 1/16/9 | F016F03387 | 23.90 | 28.92 | |
| Parts Set | ||||
| 1/17 | F016F03719 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 1/18 | F016F03721 | |||
| Seal | ||||
| 1/2 | F016F03324 | 6.73 | 8.14 | |
| Cylinder Head | ||||
| 1/3 | F016F03325 | 43.12 | 52.18 | |
| Screw M6x50 | ||||
| 1/3/103 | F016F03371 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 1/4 | F016F03372 | |||
| Screw M5x20 | ||||
| 1/4/102 | F016F03022 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 1/4/57 | F016F02901 | |||
| Valve | ||||
| 1/6 | F016F02913 | 6.73 | 8.14 | |
| Housing | ||||
| 1/7 | F016F02914 | 64.67 | 78.25 | |
| O-Ring 63,17x2,62 MM | ||||
| 1/7/73 | F016F02899 | 1.00 | 1.21 | |
| O-Ring 9,0x1,5 MM | ||||
| 1/7/98 | F016F03332 | 1.00 | 1.21 | |
| Switch | ||||
| 1/8 | F016F03389 | 71.68 | 86.73 | |
| Screw | ||||
| 1/8/119 | F016F03334 | 1.00 | 1.21 | |
| Switch | ||||
| 1/8/17 | F016F03373 | 18.94 | 22.92 | |
| Screw | ||||
| 1/8/19 | F016F03335 | 1.00 | 1.21 | |
| Housing | ||||
| 1/8/22 | F016F03337 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 1/8/27 | F016F03376 | |||
| Screw | ||||
| 1/8/28 | F016F03336 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 1/8/31 | F016F03377 | |||
| Housing | ||||
| 1/9 | F016F03380 | 71.68 | 86.73 | |
| Spacer | ||||
| 1/9/1 | F016F03378 | 1.49 | 1.80 | |
| Clamping Piece | ||||
| 1/9/10 | F016F03035 | 3.44 | 4.16 | |
| Screw 4;8x16 ZINC | ||||
| 1/9/11 | F016F03034 | 1.00 | 1.21 | |
| Spacer | ||||
| 1/9/12 | F016F03038 | 5.81 | 7.03 | |
| Sealing cap | ||||
| 1/9/13 | F016F03383 | 3.44 | 4.16 | |
| Screw | ||||
| 1/9/14 | F016F03343 | 2.08 | 2.52 | |
| Housing | ||||
| 1/9/15 | F016F03384 | 34.82 | 42.13 | |
| Screw | ||||
| 1/9/2 | F016F03379 | 1.49 | 1.80 | |
| Screw M8x35 | ||||
| 1/9/6 | F016F03042 | 1.00 | 1.21 | |
| Wheel | ||||
| 1/9/8 | F016F03381 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 1/97 | F016F03359 | |||
| Handle | ||||
| 2/1 | F016F03370 | 98.18 | 118.80 | |
| O-Ring 9,92x2,62 MM BLUE | ||||
| 2/1/2 | F016F03633 | 2.40 | 2.90 | |
| O-Ring 10,0x2,0 MM BLACK | ||||
| 2/1/3 | F016F03634 | 1.00 | 1.21 | |
| Container | ||||
| 2/5 | F016F02928 | 13.13 | 15.89 | |
| Jet Pipe | ||||
| 2/6 | F016F03391 | 43.12 | 52.18 | |
| No longer available, no replacement | ||||
| 2/8 | F016F03363 | |||
