Here you will find all available parts and drawings of the 'Bosch 3600H76E00 ( AQUATAK115PLUS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

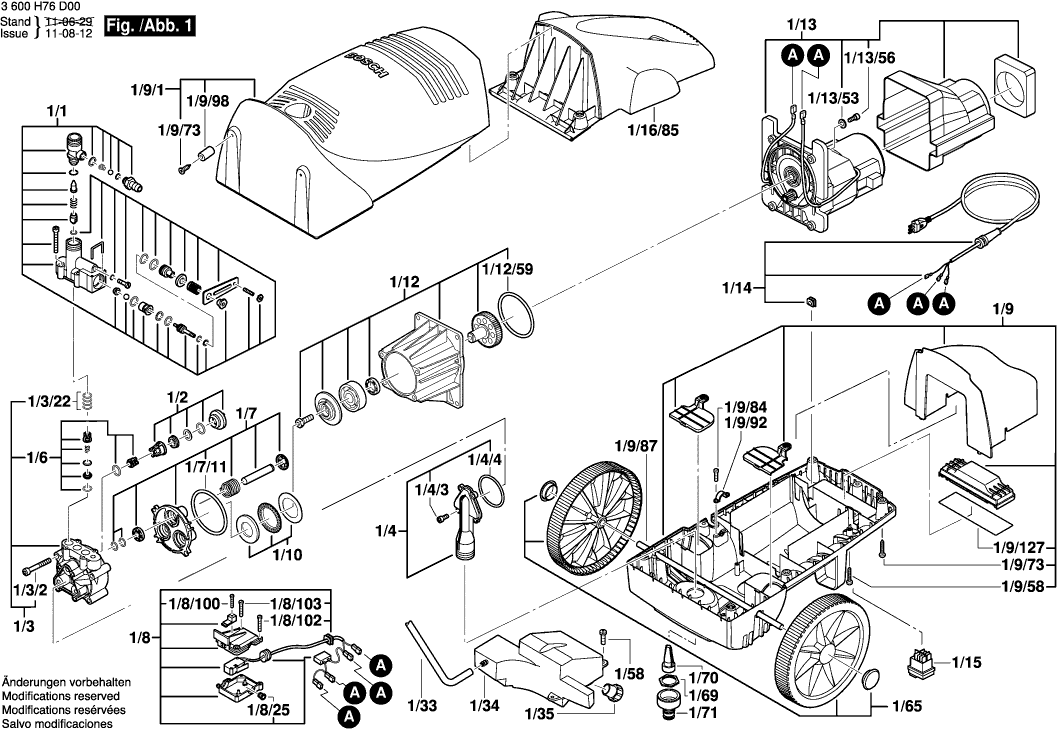

Technical drawing of model Bosch 3600H76E00 ( AQUATAK115PLUS )
Spare parts list of model Bosch 3600H76E00 ( AQUATAK115PLUS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Control Head | ||||
| 1/1 | F016F03364 | 55.25 | 66.85 | |
| Ball Bearing | ||||
| 1/10 | F016F02917 | 29.75 | 36.00 | |
| End Shield | ||||
| 1/12 | F016F02919 | 101.94 | 123.35 | |
| O-Ring | ||||
| 1/12/59 | F016F02900 | 0.83 | 1.00 | |
| Motor | ||||
| 1/13 | F016F02920 | 168.86 | 204.32 | |
| Washer | ||||
| 1/13/53 | F016F02902 | 0.83 | 1.00 | |
| Screw M5x20 | ||||
| 1/13/56 | F016F03022 | 0.83 | 1.00 | |
| Power supply cord | ||||
| 1/14 | F016F03352 | 18.19 | 22.01 | |
| Switch | ||||
| 1/15 | F016F03373 | 15.71 | 19.01 | |
| Handle | ||||
| 1/16/85 | F016F03369 | 36.85 | 44.59 | |
| Seal | ||||
| 1/2 | F016F03324 | 5.33 | 6.45 | |
| Cylinder Head | ||||
| 1/3 | F016F03325 | 36.85 | 44.59 | |
| Screw | ||||
| 1/3/2 | F016F03326 | 0.83 | 1.00 | |
| O-Ring | ||||
| 1/3/22 | F016F03327 | 0.83 | 1.00 | |
| Pipe | ||||
| 1/33 | F016F03003 | 5.33 | 6.45 | |
| Container | ||||
| 1/34 | F016F03365 | 15.71 | 19.01 | |
| Cover | ||||
| 1/35 | F016F03366 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 1/4 | F016F02911 | |||
| Screw M5x20 | ||||
| 1/4/3 | F016F03022 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 1/4/4 | F016F02901 | |||
| Screw 4x16 | ||||
| 1/58 | F016F03079 | 0.83 | 1.00 | |
| Valve | ||||
| 1/6 | F016F02913 | 5.33 | 6.45 | |
| Wheel | ||||
| 1/65 | F016F03347 | 13.93 | 16.86 | |
| Nut 3/4 FLANG.NYL | ||||
| 1/69 | F016F03087 | 1.94 | 2.35 | |
| Housing | ||||
| 1/7 | F016F02914 | 55.25 | 66.85 | |
| O-Ring 63,17x2,62 MM | ||||
| 1/7/11 | F016F02899 | 0.83 | 1.00 | |
| Strainer | ||||
| 1/70 | F016F02905 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 1/71 | F016F03359 | |||
| Switch | ||||
| 1/8 | F016F03333 | 36.85 | 44.59 | |
| Screw | ||||
| 1/8/100 | F016F03334 | 0.83 | 1.00 | |
| Screw | ||||
| 1/8/102 | F016F03335 | 0.83 | 1.00 | |
| Screw | ||||
| 1/8/103 | F016F03336 | 0.83 | 1.00 | |
| Housing | ||||
| 1/8/25 | F016F03337 | 2.71 | 3.28 | |
| Housing | ||||
| 1/9 | F016F03342 | 60.65 | 73.39 | |
| Housing 115 Plus | ||||
| 1/9/1 | F016F03368 | 36.85 | 44.59 | |
| Seal | ||||
| 1/9/127 | F016F03340 | 3.31 | 4.01 | |
| Screw 4x16 | ||||
| 1/9/58 | F016F03079 | 0.83 | 1.00 | |
| Screw | ||||
| 1/9/73 | F016F03343 | 1.70 | 2.06 | |
| Screw 4;8x16 ZINC | ||||
| 1/9/84 | F016F03034 | 0.83 | 1.00 | |
| Axle | ||||
| 1/9/87 | F016F03344 | 7.58 | 9.17 | |
| Clamping Piece | ||||
| 1/9/92 | F016F03035 | 2.71 | 3.28 | |
| O-Ring | ||||
| 1/9/98 | F016F03349 | 0.83 | 1.00 | |
| Handle | ||||
| 2/1 | F016F03370 | 81.47 | 98.58 | |
| Jet Pipe | ||||
| 2/6 | F016F03362 | 36.85 | 44.59 | |
| No longer available, no replacement | ||||
| 2/8 | F016F03363 | |||
