Here you will find all available parts and drawings of the 'Bosch 3600H76C01 ( AQUATAK110 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

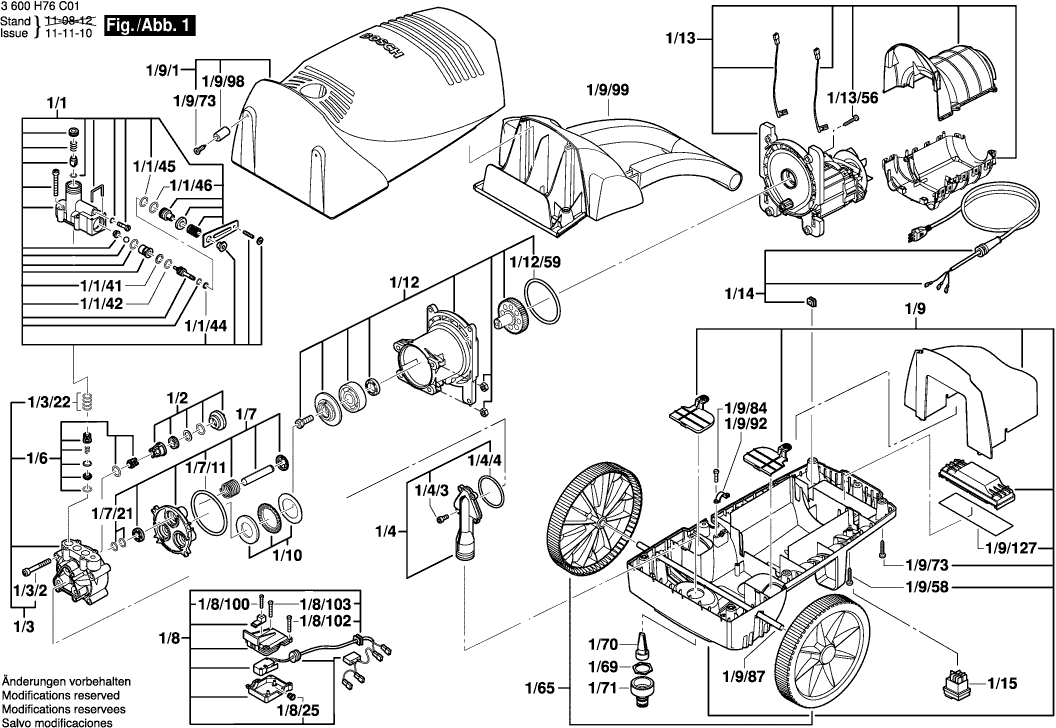

Technical drawing of model Bosch 3600H76C01 ( AQUATAK110 )

Spare parts list of model Bosch 3600H76C01 ( AQUATAK110 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Control Head
1/1 F016F03743 36.85 44.59
O-Ring
1/1/41 F016F03766 0.83 1.00
O-Ring
1/1/42 F016F03767 0.83 1.00
Washer
1/1/44 F016F03482 0.83 1.00
O-Ring 12,42x1,78 MM
1/1/45 F016F03486 0.83 1.00
O-Ring 14,0x1,78 MM
1/1/46 F016F03487 0.83 1.00
Ball Bearing
1/10 F016F02917 29.75 36.00
End Shield
1/12 F016F03745 113.29 137.08
O-Ring
1/12/59 F016F03753 1.70 2.06
Motor
1/13 F016F02920 168.86 204.32
Screw
1/13/56 F016F03768 0.83 1.00
Power supply cord
1/14 F016F03352 18.19 22.01
Switch
1/15 F016F03373 15.71 19.01
Seal
1/2 F016F03324 5.33 6.45
Cylinder Head
1/3 F016F03325 36.85 44.59
Screw
1/3/2 F016F03326 0.83 1.00
O-Ring
1/3/22 F016F03327 0.83 1.00
No longer available, no replacement
1/4 F016F02911
Screw M5x20
1/4/3 F016F03022 0.83 1.00
No longer available, no replacement
1/4/4 F016F02901
Valve
1/6 F016F02913 5.33 6.45
Wheel
1/65 F016F03347 13.93 16.86
Nut 3/4 FLANG.NYL
1/69 F016F03087 1.94 2.35
Housing
1/7 F016F02914 55.25 66.85
O-Ring 63,17x2,62 MM
1/7/11 F016F02899 0.83 1.00
O-Ring 9,0x1,5 MM
1/7/21 F016F03332 0.83 1.00
Strainer
1/70 F016F02905 2.71 3.28
No longer available, no replacement
1/71 F016F03359
Switch
1/8 F016F03333 36.85 44.59
Screw
1/8/100 F016F03334 0.83 1.00
Screw
1/8/102 F016F03335 0.83 1.00
Screw
1/8/103 F016F03336 0.83 1.00
Housing
1/8/25 F016F03337 2.71 3.28
Housing
1/9 F016F03342 60.65 73.39
Housing
1/9/1 F016F03341 36.85 44.59
Seal
1/9/127 F016F03340 3.31 4.01
Screw 4x16
1/9/58 F016F03079 0.83 1.00
Screw
1/9/73 F016F03343 1.70 2.06
Screw 4;8x16 ZINC
1/9/84 F016F03034 0.83 1.00
Axle
1/9/87 F016F03344 7.58 9.17
Clamping Piece
1/9/92 F016F03750 1.18 1.43
O-Ring
1/9/98 F016F03349 0.83 1.00
Handle
1/9/99 F016F03762 23.75 28.74
No longer available, no replacement
2/1 F016F02927
O-Ring 9,92x2,62 MM BLUE
2/1/2 F016F03633 1.94 2.35
O-Ring 10,0x2,0 MM BLACK
2/1/3 F016F03634 0.83 1.00
Container
2/5 F016F02928 11.88 14.37
Jet Pipe
2/6 F016F03362 36.85 44.59
No longer available, no replacement
2/8 F016F03363
