Here you will find all available parts and drawings of the 'Bosch 3600HA7500 (AQT40-13)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

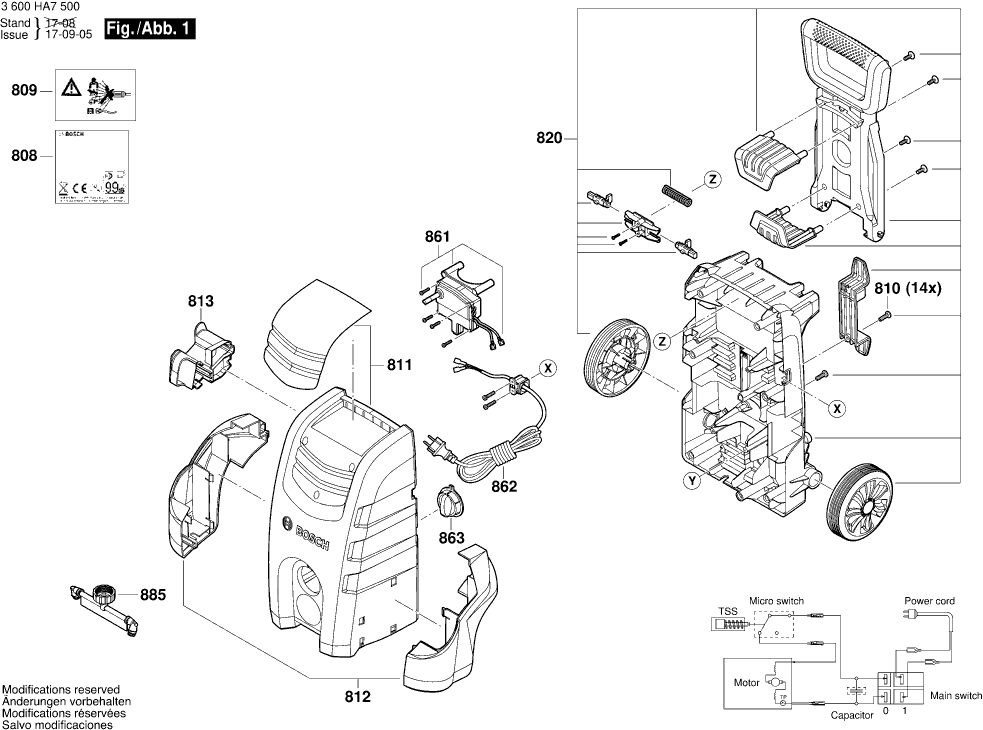

Technical drawing of model Bosch 3600HA7500 (AQT40-13)
Spare parts list of model Bosch 3600HA7500 (AQT40-13)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor | ||||
| 801 | F016F04574 | 122.80 | 148.59 | |
| Nameplate | ||||
| 808 | F016F05092 | 2.40 | 2.90 | |
| Warning Label | ||||
| 809 | F016F05583 | 2.40 | 2.90 | |
| Torx SH cap screw | ||||
| 810 | F016F04810 | 1.00 | 1.21 | |
| front cover | ||||
| 811 | F016F04572 | 34.82 | 42.13 | |
| front cover | ||||
| 812 | F016F04451 | 8.35 | 10.10 | |
| Front cover | ||||
| 813 | F016F04452 | 4.94 | 5.98 | |
| Cover | ||||
| 820 | F016F04573 | 39.14 | 47.36 | |
| O-Ring Ø 63 x 2,65 mm | ||||
| 842 | F016F05637 | 1.49 | 1.80 | |
| O-Ring | ||||
| 843 | F016F05402 | 1.49 | 1.80 | |
| O-Ring | ||||
| 850 | F016F04459 | 7.46 | 9.03 | |
| Pump head | ||||
| 851 | F016F04570 | 23.90 | 28.92 | |
| Piston Guide | ||||
| 852 | F016F04441 | 8.35 | 10.10 | |
| Pump unit | ||||
| 853 | F016F04440 | 13.13 | 15.89 | |
| Thrust Bearing | ||||
| 854 | F016F05023 | 12.82 | 15.51 | |
| Gear Box | ||||
| 855 | F016F04571 | 39.14 | 47.36 | |
| Non-Return Valve | ||||
| 856 | F016F04460 | 6.73 | 8.14 | |
| Clip | ||||
| 857 | F016F04681 | 1.00 | 1.21 | |
| Motor cover | ||||
| 860 | F016F04614 | 6.53 | 7.90 | |
| Motor cover | ||||
| 860 | F016F06678 | 5.81 | 7.03 | |
| Switch Box | ||||
| 861 | F016F04439 | 34.82 | 42.13 | |
| Power supply cord EU | ||||
| 862 | F016F04484 | 18.94 | 22.92 | |
| Switch Actuator | ||||
| 863 | F016F04613 | 27.81 | 33.65 | |
| Seal Kit 2 x (5.3 x 1.6), 2 x (8x2), 2 x (7.x1.6) | ||||
| 870 | F016F04458 | 6.73 | 8.14 | |
| Trigger | ||||
| 871 | F016F05280 | 27.81 | 33.65 | |
| Lance | ||||
| 872 | F016F05135 | 10.90 | 13.19 | |
| Fixed fan jet nozzle 20° WHITE | ||||
| 873 | F016F05554 | 6.73 | 8.14 | |
| Water filter | ||||
| 882 | F016F05052 | 3.44 | 4.16 | |
| High-Pressure Hose 6m 150 bar | ||||
| 883 | F016F05025 | 21.30 | 25.77 | |
| No longer available, no replacement | ||||
| 885 | F016F04672 | |||
| Water filter | ||||
| 888 | F016F05661 | 1.49 | 1.80 | |
| Water filter | ||||
| 889 | F016F06182 | 2.40 | 2.90 | |
