Here you will find all available parts and drawings of the 'Bosch 0602490652 ( ANGLEEXACT6 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

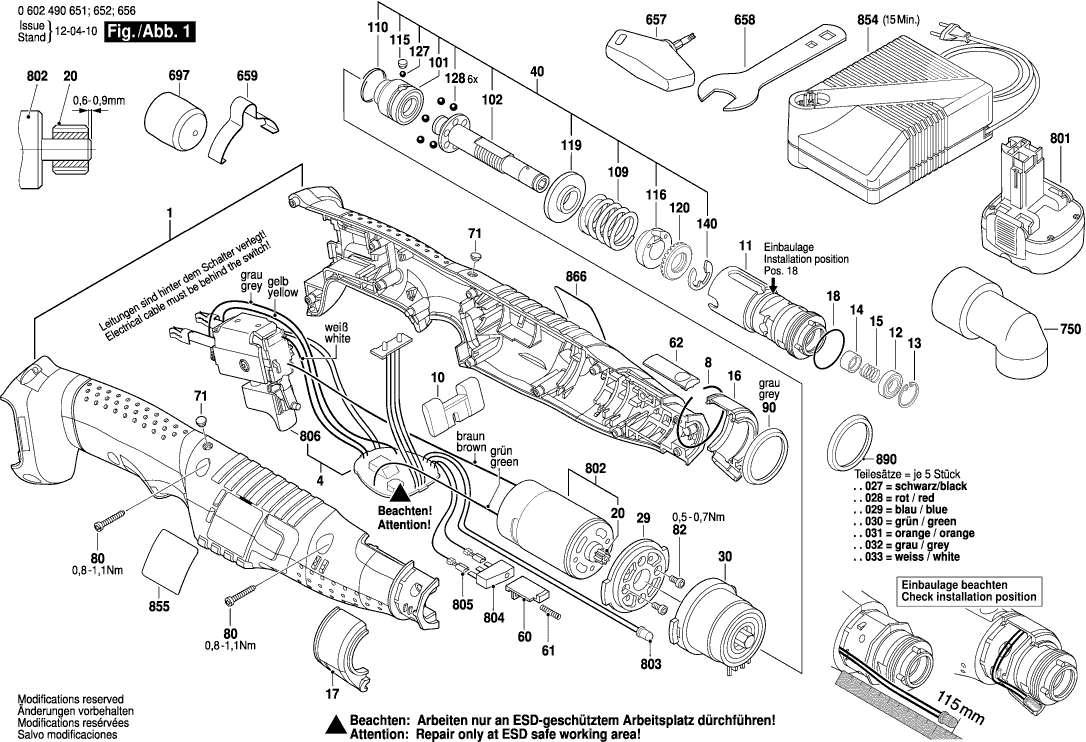

Technical drawing of model Bosch 0602490652 ( ANGLEEXACT6 )
Spare parts list of model Bosch 0602490652 ( ANGLEEXACT6 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 3605105017 | 73.72 | 89.20 | |
| Electronic Assembly | ||||
| 4 | 3607200108 | 388.20 | 469.72 | |
| Retaining ring Ø36,6xØ1,5 | ||||
| 8 | 1614601016 | 2.24 | 2.71 | |
| Switch Slide | ||||
| 10 | 3601099003 | 2.24 | 2.71 | |
| Angle Flange | ||||
| 11 | 3605700165 | 55.25 | 66.85 | |
| groove ball bearing | ||||
| 12 | 1280905004 | 26.84 | 32.48 | |
| Spring retaining ring 16x1 MM, DIN 472 | ||||
| 13 | 2916660003 | 1.18 | 1.43 | |
| Sleeve | ||||
| 14 | 3600423004 | 4.70 | 5.69 | |
| Compression Spring | ||||
| 15 | 3604611037 | 4.10 | 4.96 | |
| Led-Holder | ||||
| 16 | 3605105019 | 8.45 | 10.22 | |
| Led-Holder | ||||
| 17 | 3605105020 | 8.45 | 10.22 | |
| O-Ring 20,0x1,0 MM | ||||
| 18 | 3600210012 | 2.24 | 2.71 | |
| Pinion | ||||
| 20 | 3606309060 | 44.82 | 54.23 | |
| Intermediate Flange | ||||
| 29 | 2605719011 | 2.71 | 3.28 | |
| Planetary Gear Train | ||||
| 30 | 3607030469 | 73.72 | 89.20 | |
| Assembly kit | ||||
| 40 | 3607031568 | 187.62 | 227.02 | |
| Switching Element | ||||
| 60 | 3601923022 | 4.10 | 4.96 | |
| Compression Spring | ||||
| 61 | 3604611022 | 2.71 | 3.28 | |
| Pusher | ||||
| 62 | 3601923029 | 4.10 | 4.96 | |
| Light Conductor | ||||
| 71 | 3604460132 | 2.24 | 2.71 | |
| Torx Oval-Head Screw 3x18 | ||||
| 80 | 2603490018 | 0.83 | 1.00 | |
| Torx SH cap screw M3x5-8.8-Z | ||||
| 82 | 2603414048 | 0.83 | 1.00 | |
| Ring BLACK | ||||
| 90 | 3600106022 | 3.31 | 4.01 | |
| Clutch Element | ||||
| 101 | 3606445043 | 101.94 | 123.35 | |
| Output Shaft | ||||
| 102 | 3603124023 | 67.25 | 81.37 | |
| Compression Spring | ||||
| 109 | 3604619003 | 4.70 | 5.69 | |
| Retaining ring | ||||
| 110 | 3600224053 | 1.18 | 1.43 | |
| Sealing plate | ||||
| 115 | 3601023011 | 1.94 | 2.35 | |
| Setting Ring | ||||
| 116 | 3600134014 | 26.84 | 32.48 | |
| Support Disc | ||||
| 119 | 3600190036 | 6.54 | 7.91 | |
| Catch Disk | ||||
| 120 | 3603344047 | 20.42 | 24.71 | |
| Ball DIN 5401-3,5 MM-III-ST | ||||
| 127 | 1903230006 | 1.70 | 2.06 | |
| Ball 4,5 MM III DIN 5401-ST | ||||
| 128 | 1903230008 | 0.83 | 1.00 | |
| Locking Washer DIN 6799-9-FSt | ||||
| 140 | 2916080012 | 1.18 | 1.43 | |
| Screwdriver | ||||
| 657 | 3607950027 | 11.88 | 14.37 | |
| Single-Head Eng. Wrench | ||||
| 658 | 3601376007 | 7.58 | 9.17 | |
| Suspension Loop | ||||
| 659 | 3601923024 | 8.45 | 10.22 | |
| Protective Cap | ||||
| 750 | 3605500171 | 10.73 | 12.98 | |
| Protective Cap 25,4x25,4 MM LONG | ||||
| 750 | 3608872557 | 2.24 | 2.71 | |
| Slide-In Accu Package 9,6V,2,6Ah,NiMh | ||||
| 801 | 2607335681 | 168.86 | 204.32 | |
| DC motor 9,6V | ||||
| 802 | 3607031553 | 91.56 | 110.79 | |
| Light-Emitting-Diode | ||||
| 803 | 3609202979 | 20.42 | 24.71 | |
| Microswitch | ||||
| 804 | 3609202762 | 23.75 | 28.74 | |
| Plug Set | ||||
| 805 | 3609202766 | 5.33 | 6.45 | |
| Switch | ||||
| 806 | 3607200083 | 55.25 | 66.85 | |
| Fast Charger J 100/7,2-24V, 1h | ||||
| 854 | 2607224435 | 113.29 | 137.08 | |
| Fast Charger EU 230/7,2-24V, 30 MIN. | ||||
| 854 | 2607225027 | 113.29 | 137.08 | |
| Fast Charger GB 230/7,2-24V, 30 MIN. | ||||
| 854 | 2607225029 | 101.94 | 123.35 | |
| Fast Charger AUS 240/7,2-24V, 30 MIN. | ||||
| 854 | 2607225031 | 101.94 | 123.35 | |
| Fast Charger USA 120/7,2-24V, 30 MIN. | ||||
| 854 | 2607225033 | 101.94 | 123.35 | |
| Fast Charger ROK 220/7,2-24V, 30 MIN. | ||||
| 854 | 2607225039 | 91.56 | 110.79 | |
| Nameplate | ||||
| 855 | 16070312AG | 5.33 | 6.45 | |
| Manufacturer's nameplate | ||||
| 866 | 3601119311 | 6.54 | 7.91 | |
| Parts Set 5 PCE., ORANGE | ||||
| 890 | 3600106031 | 20.42 | 24.71 | |
| Parts Set 5 PCE,. GREY | ||||
| 890 | 3600106032 | 18.19 | 22.01 | |
| Parts Set 5 PCE,. LIGHT BLUE | ||||
| 890 | 3600106029 | 18.19 | 22.01 | |
| Parts Set 5 PCE,. LIGHT GREEN | ||||
| 890 | 3600106030 | 18.19 | 22.01 | |
| Parts Set 5 PCE., BLACK | ||||
| 890 | 3600106027 | 18.19 | 22.01 | |
| Parts Set 5 PCE., RED | ||||
| 890 | 3600106028 | 15.71 | 19.01 | |
| Parts Set 5 PCE,. WHITE | ||||
| 890 | 3600106033 | 15.71 | 19.01 | |
