Here you will find all available parts and drawings of the 'Bosch 0602492615 (ANGLEEXACT25-200)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

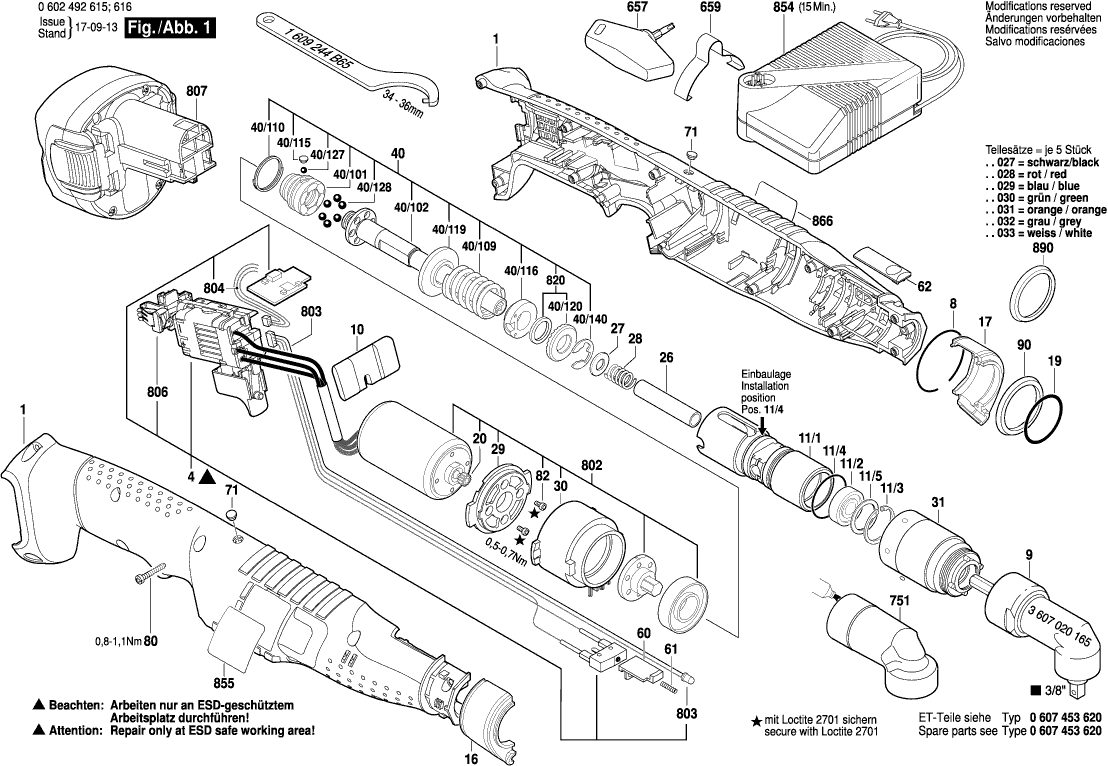

Technical drawing of model Bosch 0602492615 (ANGLEEXACT25-200)
Spare parts list of model Bosch 0602492615 (ANGLEEXACT25-200)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 3609202A45 | 61.93 | 74.94 | |
| Electronic Assembly | ||||
| 4 | 3607200120 | 553.26 | 669.44 | |
| Retaining ring Ø36,6xØ1,5 | ||||
| 8 | 1614601016 | 2.52 | 3.05 | |
| Angle Screwdriver Head 3/8" | ||||
| 9 | 3607020165 | 876.44 | 1060.49 | |
| Switch Slide | ||||
| 10 | 3601099003 | 2.52 | 3.05 | |
| Angle Flange | ||||
| 11/1 | 3609202A33 | 114.26 | 138.25 | |
| groove ball bearing | ||||
| 11/2 | 3600905026 | 20.39 | 24.67 | |
| Spring retaining ring | ||||
| 11/3 | 2600119000 | 1.49 | 1.80 | |
| O-Ring | ||||
| 11/4 | 3600210012 | 2.86 | 3.46 | |
| Shim ring | ||||
| 11/5 | 1610101015 | 1.49 | 1.80 | |
| Led-Holder | ||||
| 16 | 3605105019 | 9.47 | 11.46 | |
| Led-Holder | ||||
| 17 | 3605105020 | 9.47 | 11.46 | |
| O-Ring 25x2,5 MM | ||||
| 19 | 1900210125 | 7.46 | 9.03 | |
| Pinion | ||||
| 20 | 3606309061 | 50.23 | 60.78 | |
| Compression Spring | ||||
| 28 | 1604616017 | 2.52 | 3.05 | |
| Intermediate Flange | ||||
| 29 | 2605719011 | 3.44 | 4.16 | |
| Planetary Gear Train | ||||
| 30 | 3607030472 | 71.68 | 86.73 | |
| Planetary Gear Train | ||||
| 31 | 3607030458 | 553.26 | 669.44 | |
| Assembly kit | ||||
| 40 | 3607031643 | 271.34 | 328.32 | |
| Clutch Element | ||||
| 40/101 | 3606445043 | 122.80 | 148.59 | |
| Drive Shaft | ||||
| 40/102 | 3603124035 | 126.98 | 153.65 | |
| Compression Spring | ||||
| 40/109 | 3604619003 | 5.81 | 7.03 | |
| Retaining ring | ||||
| 40/110 | 3600224053 | 1.49 | 1.80 | |
| Sealing plate | ||||
| 40/115 | 3601023011 | 2.40 | 2.90 | |
| Setting Ring | ||||
| 40/116 | 3600134014 | 31.42 | 38.02 | |
| Support Disc | ||||
| 40/119 | 3600190036 | 6.54 | 7.91 | |
| Catch Disk | ||||
| 40/120 | 3603344047 | 23.90 | 28.92 | |
| Ball | ||||
| 40/127 | 1903230006 | 2.08 | 2.52 | |
| Ball 4,5 MM III DIN 5401-ST | ||||
| 40/128 | 1903230008 | 1.00 | 1.21 | |
| Locking washer | ||||
| 40/140 | 2916080012 | 1.49 | 1.80 | |
| Switching Element | ||||
| 60 | 3601923022 | 4.58 | 5.54 | |
| Compression Spring | ||||
| 61 | 3604611022 | 3.04 | 3.68 | |
| Pusher | ||||
| 62 | 3601923029 | 4.58 | 5.54 | |
| Light Conductor | ||||
| 71 | 3604460132 | 2.52 | 3.05 | |
| Torx Oval-Head Screw | ||||
| 80 | 2603490018 | 1.00 | 1.21 | |
| Torx SH cap screw | ||||
| 82 | 2603414048 | 1.00 | 1.21 | |
| Ring GRAY | ||||
| 90 | 3600106025 | 3.04 | 3.68 | |
| Screwdriver | ||||
| 657 | 3607950027 | 14.94 | 18.08 | |
| Suspension Loop | ||||
| 659 | 3601923024 | 10.90 | 13.19 | |
| Protective Cap | ||||
| 751 | 3609202A29 | 11.02 | 13.33 | |
| DC motor | ||||
| 802 | 3607031633 | 234.56 | 283.82 | |
| Wiring Harness | ||||
| 803 | 3609202B02 | 82.63 | 99.98 | |
| Wiring Harness | ||||
| 804 | 3609202B03 | 15.61 | 18.89 | |
| Contact retainer | ||||
| 806 | 1609280416 | 8.48 | 10.26 | |
| Battery Pack | ||||
| 807 | 2607335681 | 189.28 | 229.03 | |
| Fast Charger | ||||
| 854 | 2607224435 | 136.48 | 165.14 | |
| Fast Charger | ||||
| 854 | 2607225027 | 136.48 | 165.14 | |
| Fast Charger | ||||
| 854 | 2607225029 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 854 | 2607225031 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 854 | 2607225033 | 122.80 | 148.59 | |
| Fast Charger | ||||
| 854 | 2607225039 | 110.30 | 133.46 | |
| Manufacturer's nameplate | ||||
| 855 | 3601110532 | 8.48 | 10.26 | |
| Nameplate | ||||
| 866 | 16070312BV | 3.04 | 3.68 | |
| Parts Set 5 PCE., ORANGE | ||||
| 890 | 3600106031 | 23.90 | 28.92 | |
| Parts Set 5 PCE,. GREY | ||||
| 890 | 3600106032 | 21.30 | 25.77 | |
| Parts Set 5 PCE,. LIGHT BLUE | ||||
| 890 | 3600106029 | 21.30 | 25.77 | |
| Parts Set 5 PCE,. LIGHT GREEN | ||||
| 890 | 3600106030 | 21.30 | 25.77 | |
| Parts Set 5 PCE., BLACK | ||||
| 890 | 3600106027 | 21.30 | 25.77 | |
| Parts Set 5 PCE., RED | ||||
| 890 | 3600106028 | 18.94 | 22.92 | |
| Parts Set 5 PCE,. WHITE | ||||
| 890 | 3600106033 | 18.94 | 22.92 | |
