Here you will find all available parts and drawings of the 'Bosch 0602490674 ( ANGLEEXACT23 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

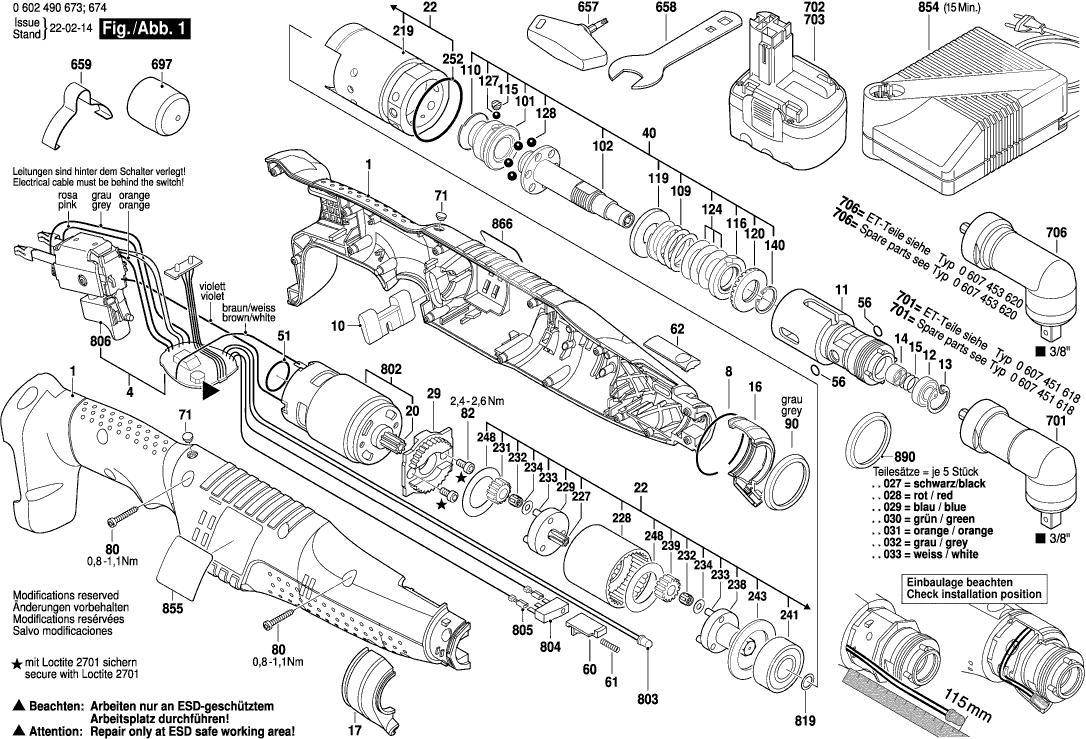

Technical drawing of model Bosch 0602490674 ( ANGLEEXACT23 )
Spare parts list of model Bosch 0602490674 ( ANGLEEXACT23 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 3605105025 | 101.94 | 123.35 | |
| Electronic Assembly | ||||
| 4 | 3607200109 | 388.20 | 469.72 | |
| Retaining ring | ||||
| 8 | 3600224064 | 3.31 | 4.01 | |
| Switch Slide | ||||
| 10 | 3601099003 | 2.24 | 2.71 | |
| Angle Flange | ||||
| 11 | 3605700170 | 81.47 | 98.58 | |
| groove ball bearing | ||||
| 12 | 1280905004 | 26.84 | 32.48 | |
| Spring retaining ring 16x1 MM, DIN 472 | ||||
| 13 | 2916660003 | 1.18 | 1.43 | |
| Sleeve | ||||
| 14 | 3600423004 | 4.70 | 5.69 | |
| Compression Spring | ||||
| 15 | 3604611037 | 4.10 | 4.96 | |
| Led-Holder | ||||
| 16 | 3605105023 | 7.58 | 9.17 | |
| Led-Holder | ||||
| 17 | 3605105024 | 7.58 | 9.17 | |
| Pinion | ||||
| 20 | 3606300137 | 44.82 | 54.23 | |
| Planetary Gear Train | ||||
| 22 | 3607030427 | 342.01 | 413.83 | |
| Intermediate Flange | ||||
| 29 | 3605805038 | 10.73 | 12.98 | |
| Assembly kit | ||||
| 40 | 3607031585 | 271.34 | 328.32 | |
| O-Ring 15x3 MM | ||||
| 51 | 1900210114 | 1.94 | 2.35 | |
| O-Ring 6,0x1,5 MM | ||||
| 56 | 3600210130 | 1.94 | 2.35 | |
| Switching Element | ||||
| 60 | 3601923022 | 4.10 | 4.96 | |
| Compression Spring | ||||
| 61 | 3604611022 | 2.71 | 3.28 | |
| Pusher | ||||
| 62 | 3601923029 | 4.10 | 4.96 | |
| Light Conductor | ||||
| 71 | 3604460132 | 2.24 | 2.71 | |
| Torx Oval-Head Screw 3x18 | ||||
| 80 | 2603490018 | 0.83 | 1.00 | |
| Microencapsulated Screw DIN 912 M 4x8-8.8 | ||||
| 82 | 2914555131 | 1.70 | 2.06 | |
| Ring ORANGE | ||||
| 90 | 3600106021 | 2.24 | 2.71 | |
| Clutch Element | ||||
| 101 | 3606445044 | 130.32 | 157.69 | |
| Output Shaft | ||||
| 102 | 3603124025 | 113.29 | 137.08 | |
| Compression Spring | ||||
| 109 | 3604619004 | 5.33 | 6.45 | |
| Retaining ring | ||||
| 110 | 3604601001 | 1.70 | 2.06 | |
| Sealing plate | ||||
| 115 | 3600001000 | 2.24 | 2.71 | |
| Setting Ring | ||||
| 116 | 3600134015 | 26.84 | 32.48 | |
| Support Disc | ||||
| 119 | 3600190039 | 18.19 | 22.01 | |
| Catch Disk | ||||
| 120 | 3603344052 | 26.84 | 32.48 | |
| Support Disc | ||||
| 124 | 3600101002 | 1.70 | 2.06 | |
| Ball DIN 5401-5 G28 | ||||
| 127 | 1903230009 | 0.83 | 1.00 | |
| Ball DIN 5401-6 G28 | ||||
| 128 | 1903230011 | 1.94 | 2.35 | |
| Spring retaining ring DIN471-15x1-FST | ||||
| 140 | 2916659006 | 1.18 | 1.43 | |
| Gear Housing | ||||
| 219 | 3605806216 | 67.25 | 81.37 | |
| Pinion Z=9 | ||||
| 227 | 3606300072 | 44.82 | 54.23 | |
| Ring Gear Z=42 | ||||
| 228 | 3606334054 | 7.58 | 9.17 | |
| Carrier | ||||
| 229 | 3606337115 | 26.84 | 32.48 | |
| Needle-Roller Cage | ||||
| 232 | 3600913006 | 5.83 | 7.05 | |
| Needle Roller | ||||
| 233 | 3603201047 | 1.18 | 1.43 | |
| Shim 0,20 MM | ||||
| 234 | 2600100586 | 1.18 | 1.43 | |
| Planetary-Gear Carrier | ||||
| 238 | 3606337213 | 26.84 | 32.48 | |
| Cylindrical Gear | ||||
| 239 | 3606316110 | 13.93 | 16.86 | |
| groove ball bearing | ||||
| 241 | 3600905045 | 12.41 | 15.02 | |
| Stop Disc | ||||
| 243 | 3600102021 | 2.71 | 3.28 | |
| Stop Disc | ||||
| 248 | 3600101040 | 1.70 | 2.06 | |
| O-Ring 37,69x3,53 MM | ||||
| 252 | 3600210128 | 4.10 | 4.96 | |
| Screwdriver | ||||
| 657 | 3607950027 | 11.88 | 14.37 | |
| Single-Head Eng. Wrench | ||||
| 658 | 3601376007 | 7.58 | 9.17 | |
| Suspension Loop | ||||
| 659 | 3601923017 | 18.19 | 22.01 | |
| Protective Cap 25,4x25,4 MM LONG | ||||
| 697 | 3608872557 | 2.24 | 2.71 | |
| Angle Screwdriver Head | ||||
| 701 | 3607020041 | 922.18 | 1115.84 | |
| Slide-In Accu Package | ||||
| 702 | 2607335881 | 168.86 | 204.32 | |
| Slide-In Accu Package 14,4V,2,4Ah | ||||
| 703 | 2607335655 | 209.26 | 253.20 | |
| Angle Screwdriver Head 3/8" | ||||
| 706 | 3607020165 | 756.34 | 915.17 | |
| DC motor 14,4V | ||||
| 802 | 3607031579 | 113.29 | 137.08 | |
| Light-Emitting-Diode | ||||
| 803 | 3609202980 | 18.19 | 22.01 | |
| Microswitch | ||||
| 804 | 3609202762 | 23.75 | 28.74 | |
| Plug Set | ||||
| 805 | 3609202766 | 5.33 | 6.45 | |
| Switch | ||||
| 806 | 3607200083 | 55.25 | 66.85 | |
| Shim 0,3 MM THICK | ||||
| 819 | 1600101618 | 1.18 | 1.43 | |
| Fast Charger J 100/7,2-24V, 1h | ||||
| 854 | 2607224435 | 113.29 | 137.08 | |
| Fast Charger EU 230/7,2-24V, 30 MIN. | ||||
| 854 | 2607225027 | 113.29 | 137.08 | |
| Fast Charger GB 230/7,2-24V, 30 MIN. | ||||
| 854 | 2607225029 | 101.94 | 123.35 | |
| Fast Charger AUS 240/7,2-24V, 30 MIN. | ||||
| 854 | 2607225031 | 101.94 | 123.35 | |
| Fast Charger USA 120/7,2-24V, 30 MIN. | ||||
| 854 | 2607225033 | 101.94 | 123.35 | |
| Fast Charger ROK 220/7,2-24V, 30 MIN. | ||||
| 854 | 2607225039 | 91.56 | 110.79 | |
| Nameplate | ||||
| 855 | 16070312AL | 5.33 | 6.45 | |
| Manufacturer's nameplate | ||||
| 866 | 3601119333 | 5.33 | 6.45 | |
| Parts Set 5 PCE., ORANGE | ||||
| 890 | 3600106031 | 20.42 | 24.71 | |
| Parts Set 5 PCE,. GREY | ||||
| 890 | 3600106032 | 18.19 | 22.01 | |
| Parts Set 5 PCE., BLACK | ||||
| 890 | 3600106027 | 18.19 | 22.01 | |
| Parts Set 5 PCE,. LIGHT BLUE | ||||
| 890 | 3600106029 | 18.19 | 22.01 | |
| Parts Set 5 PCE,. LIGHT GREEN | ||||
| 890 | 3600106030 | 18.19 | 22.01 | |
| Parts Set 5 PCE., RED | ||||
| 890 | 3600106028 | 15.71 | 19.01 | |
| Parts Set 5 PCE,. WHITE | ||||
| 890 | 3600106033 | 15.71 | 19.01 | |
