Here you will find all available parts and drawings of the 'Bosch 3600HA3E00 ( AMW10FS )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

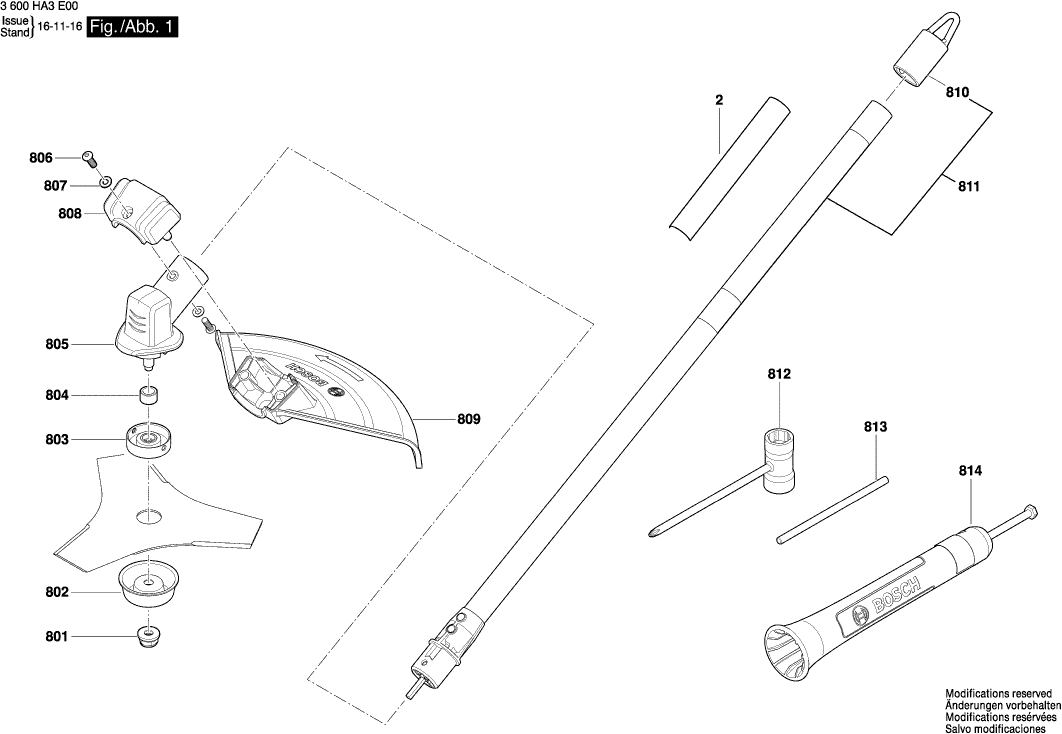

Technical drawing of model Bosch 3600HA3E00 ( AMW10FS )
Spare parts list of model Bosch 3600HA3E00 ( AMW10FS )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Warning Label | ||||
| 2 | F016L73223 | 2.24 | 2.71 | |
| Lock Nut | ||||
| 801 | F016F04551 | 1.18 | 1.43 | |
| Locking Plate | ||||
| 802 | F016F04550 | 3.95 | 4.78 | |
| Holding Fixture | ||||
| 803 | F016F04549 | 5.33 | 6.45 | |
| Metal Ring | ||||
| 804 | F016F04790 | 1.18 | 1.43 | |
| Gear Housing | ||||
| 805 | F016F04547 | 44.82 | 54.23 | |
| Screw | ||||
| 806 | F016F04543 | 0.83 | 1.00 | |
| Washer | ||||
| 807 | F016F04823 | 0.83 | 1.00 | |
| Guard Plate | ||||
| 808 | F016F04546 | 1.94 | 2.35 | |
| Protective Cover | ||||
| 809 | F016F04552 | 5.83 | 7.05 | |
| Cap | ||||
| 810 | F016F04482 | 1.70 | 2.06 | |
| No longer available, no replacement | ||||
| 811 | F016F04538 | |||
| Combi Set Of Spanners | ||||
| 812 | F016F04539 | 5.83 | 7.05 | |
| Bar | ||||
| 813 | F016F04540 | 1.70 | 2.06 | |
| Safety Guard | ||||
| 814 | F016F04820 | 5.33 | 6.45 | |
