Here you will find all available parts and drawings of the 'Bosch 0600836703 ( AKE35-19 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

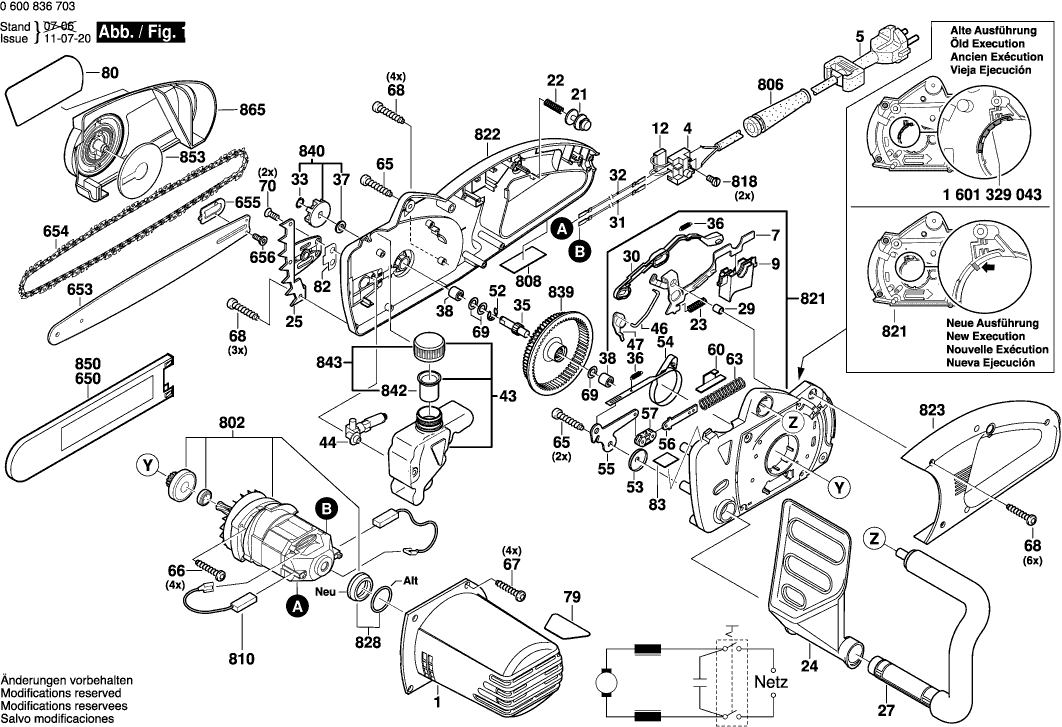

Technical drawing of model Bosch 0600836703 ( AKE35-19 )

Spare parts list of model Bosch 0600836703 ( AKE35-19 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing
1 1605190228 5.33 6.45
Switch
4 1607200193 9.53 11.53
Power supply cord EU 230V 0,55m 2 x 1,0mm H07 RN-
5 1604460242 6.54 7.91
Lever
7 1602002008 5.33 6.45
No longer available, no replacement
9 1603231020
Suppression Capacitor
12 2609004863 2.71 3.28
Locking Bolt
21 1600390019 1.18 1.43
Compression Spring
22 1604617008 0.83 1.00
Compression Spring
23 1604617015 0.83 1.00
Protective Shield
24 1605510315 7.58 9.17
Spiked bumper
25 1601098008 4.70 5.69
Handle
27 1605133045 11.88 14.37
Bushing
29 1600300096 1.18 1.43
Pusher
30 1602319019 2.24 2.71
Connecting Cable
31 1604431003 1.70 2.06
Connecting Cable
32 1604431004 1.94 2.35
Spring retaining ring DIN 471-10x1MM-FSt
33 2916650001 1.94 2.35
Shaft
35 1606100039 11.88 14.37
Extension Spring
36 1604650016 0.83 1.00
Felt Washer
37 1600205037 0.83 1.00
Needle bearing
38 2600917006 2.71 3.28
Oil Reservoir
43 1605405004 12.41 15.02
Oil Pump
44 1605437003 12.41 15.02
Rod
46 1603023003 4.10 4.96
Swivelling Lever
47 1600590014 4.70 5.69
Locking Washer DIN 6799-9-FSt
52 2916080012 1.18 1.43
Collar Disc
53 1600328030 1.18 1.43
Brake Band
54 1604652020 4.10 4.96
Lever Arm
55 1600590019 2.24 2.71
Spring Guide
56 1600590016 1.70 2.06
Lever Carrier
57 1600390018 2.24 2.71
Pressure Plate
60 1600590012 1.18 1.43
Compression Spring
63 1604617017 0.83 1.00
Oval-Head Screw 5x22
65 2914211528 0.83 1.00
Oval-Head Screw 5x22
66 2914211528 0.83 1.00
Oval-Head Screw 4x18 MM,TORX T20
67 2914201506 0.83 1.00
Oval-Head Screw 4x18 MM,TORX T20
68 2914201506 0.83 1.00
Friction Washer
69 1600100038 1.18 1.43
Tapping Screw 4,2x13
70 2910601325 0.83 1.00
Reference Plate
79 1601118A25 1.94 2.35
Manufacturer's nameplate
80 1601118K00 2.71 3.28
Seal Strip
82 1601010009 1.70 2.06
Sticker
83 1601118A64 2.71 3.28
Guide Rail 350 MM
653 1602317011 33.45 40.47
Saw Chain 350 MM
654 2609006250 26.84 32.48
Adjusting Plate
655 1601015035 4.70 5.69
Countersunk-Head Screw
656 1603421003 0.83 1.00
Alternating-Current Motor 1900 W
802 1607000A37 113.29 137.08
Grommet
806 2609005766 2.24 2.71
Nameplate
808 160111A3H3 1.94 2.35
Carbon-Brush Set
810 1607014170 13.93 16.86
Socket head cap screw M3x6,5-4.8
818 2603410001 1.18 1.43
Housing Section
821 1607000A88 18.19 22.01
Housing Section
822 1607000884 44.82 54.23
Handle
823 1605133046 23.75 28.74
Intermediate Ring
828 1607000A77 0.83 1.00
Ring Gear
839 1607000A06 15.71 19.01
Sprocket wheel
840 1607000885 4.70 5.69
Strainer
842 1607431000 4.10 4.96
Reservoir Cap
843 1607000A47 5.33 6.45
Chain Guard
850 1605510392 8.45 10.22
Dust-Protection Cover
853 1605190190 2.24 2.71
No longer available, no replacement
865 1607000A58
