Here you will find all available parts and drawings of the 'Bosch 3600H34002 ( AKE35 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

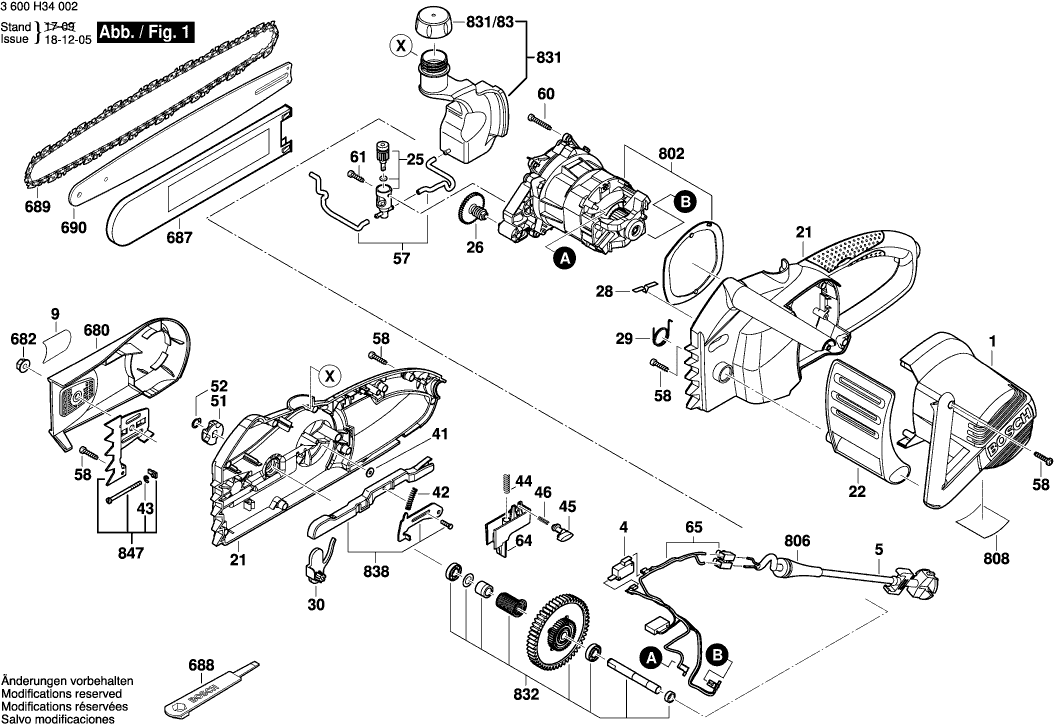

Technical drawing of model Bosch 3600H34002 ( AKE35 )
Spare parts list of model Bosch 3600H34002 ( AKE35 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing GREEN | ||||
| 1 | 2609001023 | 11.88 | 14.37 | |
| Switch | ||||
| 4 | 2609001096 | 5.83 | 7.05 | |
| Power supply cord EU 0,4m 2 x 1,0mm H07 RN-F | ||||
| 5 | 2604460183 | 6.54 | 7.91 | |
| Manufacturer's nameplate AKE 35, 1600W | ||||
| 9 | 2609002668 | 1.94 | 2.35 | |
| Housing | ||||
| 21 | 2609001110 | 55.25 | 66.85 | |
| Protective Shield | ||||
| 22 | 2609001024 | 7.58 | 9.17 | |
| Oil Pump | ||||
| 25 | 1600A01A55 | 11.88 | 14.37 | |
| Worm-Gear Pair | ||||
| 26 | 2609001043 | 6.54 | 7.91 | |
| Spring | ||||
| 28 | 2609001047 | 0.83 | 1.00 | |
| Torsion Spring | ||||
| 29 | 2609006397 | 1.18 | 1.43 | |
| Lever | ||||
| 30 | 2609001032 | 1.94 | 2.35 | |
| Plain Washer DIN 9021-B 4,3-ST | ||||
| 41 | 2916011892 | 0.83 | 1.00 | |
| Spring | ||||
| 42 | 2609001093 | 0.83 | 1.00 | |
| Locking Washer DIN 6799-3,2 | ||||
| 43 | 2916080906 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 44 | 2609001048 | 0.83 | 1.00 | |
| Safety Switch | ||||
| 45 | 2609001031 | 2.24 | 2.71 | |
| Compression Spring | ||||
| 46 | 2609001090 | 0.83 | 1.00 | |
| Sprocket wheel | ||||
| 51 | 2609001036 | 5.33 | 6.45 | |
| Spring retaining ring DIN 471-10x1MM-FSt | ||||
| 52 | 2916650001 | 1.94 | 2.35 | |
| Pipe | ||||
| 57 | 2609001086 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 4x20 | ||||
| 58 | 2603490023 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 4x25 | ||||
| 60 | 2603490024 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 4x12 | ||||
| 61 | 2603490021 | 0.83 | 1.00 | |
| Switch Segment | ||||
| 64 | 2609001029 | 1.70 | 2.06 | |
| Suppression Filter | ||||
| 65 | 2609004394 | 5.83 | 7.05 | |
| Protective Cover BLACK | ||||
| 680 | 2609001045 | 12.41 | 15.02 | |
| Hex Nut | ||||
| 682 | 2609001307 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 687 | 1605510329 | |||
| Offset Screwdriver | ||||
| 688 | 2609001095 | 3.31 | 4.01 | |
| Saw Chain AKE 35 | ||||
| 689 | 2609007364 | 20.42 | 24.71 | |
| Guide Rail 350 mm | ||||
| 690 | 1600A015H6 | 20.42 | 24.71 | |
| Motor | ||||
| 802 | 2609002728 | 73.72 | 89.20 | |
| Grommet | ||||
| 806 | 2609005766 | 2.24 | 2.71 | |
| Nameplate | ||||
| 808 | 160111A3V0 | 1.94 | 2.35 | |
| Oil Reservoir | ||||
| 831 | 2609001599 | 13.93 | 16.86 | |
| Reservoir Cap | ||||
| 831/83 | 2609001040 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 832 | 2609001100 | |||
| Linkage | ||||
| 838 | 2609001597 | 12.41 | 15.02 | |
| Mounting Plate | ||||
| 847 | 1600A00318 | 5.83 | 7.05 | |
