Here you will find all available parts and drawings of the 'Bosch 3600H48B00 (AHS7000PRO-T)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

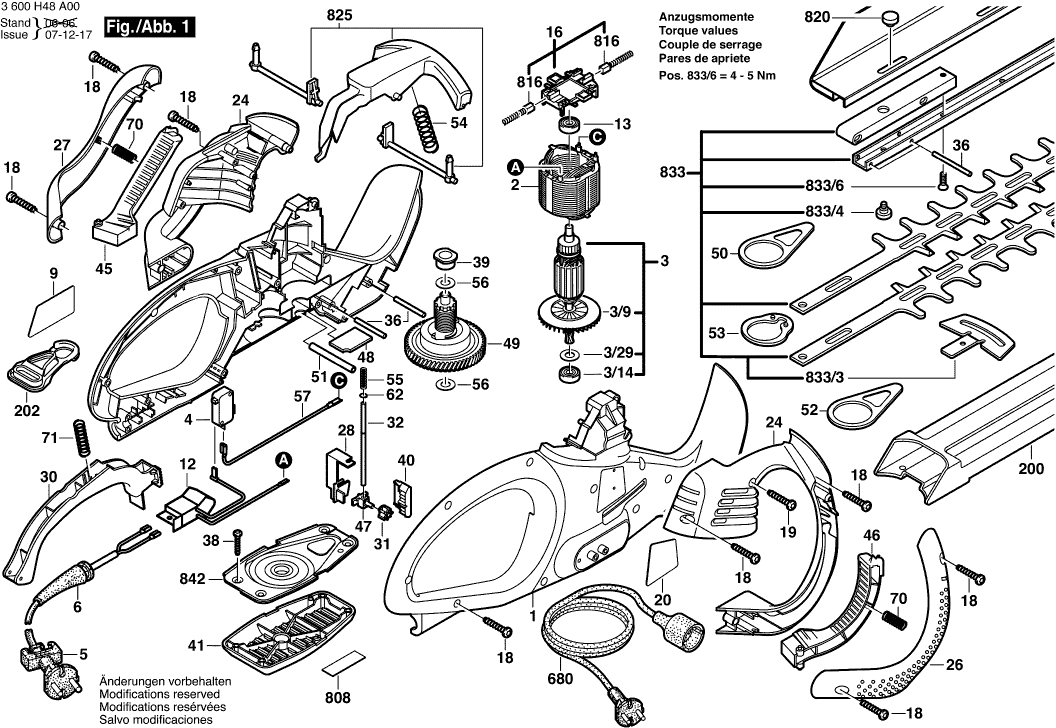

Technical drawing of model Bosch 3600H48B00 (AHS7000PRO-T)
Spare parts list of model Bosch 3600H48B00 (AHS7000PRO-T)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section TURQUOISE | ||||
| 1 | 2609002758 | 27.81 | 33.65 | |
| Field 220-240V | ||||
| 2 | 2609001193 | 16.79 | 20.32 | |
| Armature 220-240V | ||||
| 3 | 2609001195 | 47.53 | 57.51 | |
| groove ball bearing | ||||
| 3/14 | 2600905021 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 3/29 | 2600209003 | |||
| Fan | ||||
| 3/9 | 2609001188 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 4 | 2607200446 | |||
| No longer available, no replacement | ||||
| 5 | 2604460255 | |||
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| Manufacturer's nameplate AHS 7000 PRO-T | ||||
| 9 | 2609001445 | 3.44 | 4.16 | |
| Interference Suppr.Choke | ||||
| 12 | 2609003984 | 8.35 | 10.10 | |
| Flanged Bearing | ||||
| 13 | 2605805004 | 8.35 | 10.10 | |
| Brush Plate | ||||
| 16 | 1600A012AZ | 10.90 | 13.19 | |
| Torx Oval-Head Screw | ||||
| 18 | 2603490023 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 18 | 2609001403 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 19 | 2603490024 | 1.49 | 1.80 | |
| Reference Plate | ||||
| 20 | 2609001437 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 24 | 2609002910 | |||
| Fixing Element | ||||
| 26 | 2609005342 | 4.18 | 5.06 | |
| Fixing Element | ||||
| 27 | 2609005343 | 5.81 | 7.03 | |
| Support | ||||
| 28 | 2608040167 | 4.18 | 5.06 | |
| Switch Segment | ||||
| 30 | 2609003055 | 2.86 | 3.46 | |
| Switch Wheel | ||||
| 31 | 2606319105 | 1.00 | 1.21 | |
| Coupling | ||||
| 32 | 2609004249 | 2.08 | 2.52 | |
| Straight Pin | ||||
| 36 | 2609002714 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 38 | 2603490020 | 1.00 | 1.21 | |
| Bushing | ||||
| 39 | 2600301073 | 3.44 | 4.16 | |
| Shifter Rod | ||||
| 40 | 2608040163 | 1.49 | 1.80 | |
| Cover | ||||
| 41 | 2605808938 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 45 | 2608001901 | |||
| Switch Segment | ||||
| 46 | 2608001902 | 11.37 | 13.76 | |
| Control Element | ||||
| 47 | 2606314102 | 2.40 | 2.90 | |
| Support | ||||
| 48 | 2608005081 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 49 | 2606440026 | |||
| Connecting Rod BLACK | ||||
| 50 | 2602001013 | 12.82 | 15.51 | |
| Straight Pin | ||||
| 51 | 2603101053 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 52 | 2602001012 | |||
| Spacer | ||||
| 53 | 2606440043 | 9.67 | 11.70 | |
| Compression Spring | ||||
| 54 | 2604610045 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 55 | 2604610073 | |||
| Shim | ||||
| 56 | 2600101617 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 57 | 2604448234 | 2.08 | 2.52 | |
| Locking washer | ||||
| 62 | 2916080905 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 70 | 2604610090 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 71 | 2604610074 | 1.00 | 1.21 | |
| Knife Guard | ||||
| 200 | 2605411152 | 12.82 | 15.51 | |
| No longer available, no replacement | ||||
| 680 | F016L65235 | |||
| Marking Plate | ||||
| 808 | 2601116587 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 816 | 2604321925 | 8.35 | 10.10 | |
| No longer available, no replacement | ||||
| 820 | 2603345021 | |||
| No longer available, no replacement | ||||
| 825 | 2608001903 | |||
| No longer available, no replacement | ||||
| 833 | 2607009915 | |||
| No longer available, no replacement | ||||
| 833/3 | 2601020016 | |||
| Thread-forming tap. Screw | ||||
| 833/4 | 2603413040 | 2.08 | 2.52 | |
| Torx Oval-Head Screw | ||||
| 833/6 | 2603421011 | 6.73 | 8.14 | |
| Pivot Plate | ||||
| 842 | 2609001601 | 8.35 | 10.10 | |
