Here you will find all available parts and drawings of the 'Bosch 0600840603 (AHS700-34)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

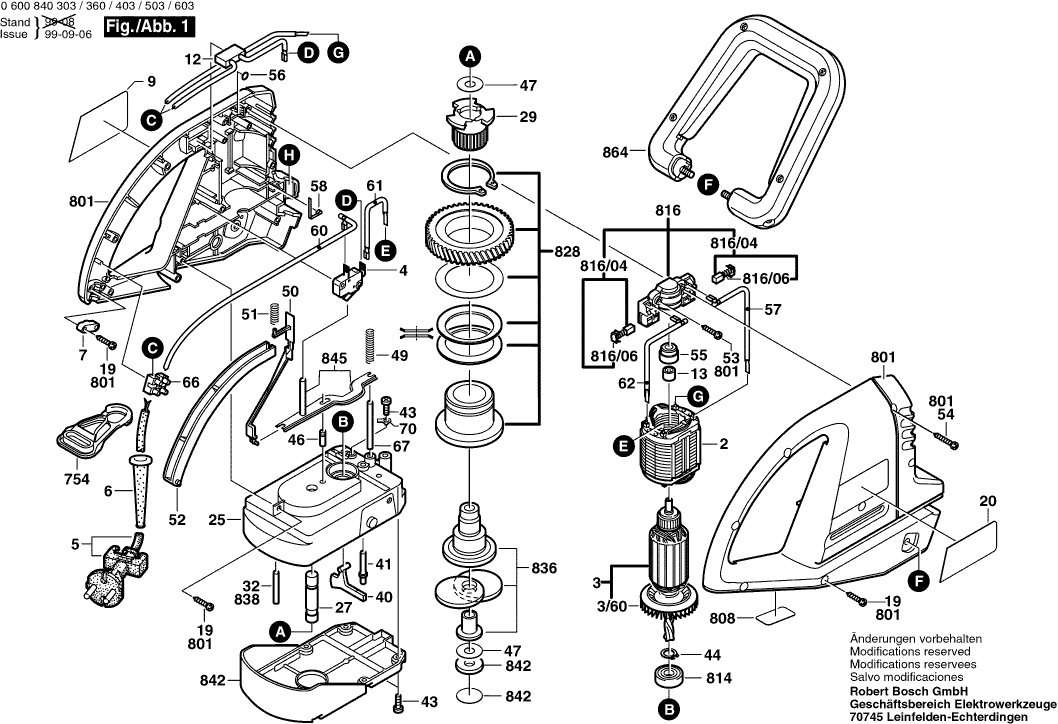

Technical drawing of model Bosch 0600840603 (AHS700-34)
Spare parts list of model Bosch 0600840603 (AHS700-34)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 2604220429 | 23.90 | 28.92 | |
| Armature 230V | ||||
| 3 | 2604010870 | 52.45 | 63.46 | |
| Fan | ||||
| 3/60 | 2606610068 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 4 | 2607200291 | |||
| No longer available, no replacement | ||||
| 5 | 2604460255 | |||
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601117073 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 12 | 2607329133 | |||
| Flanged Bearing | ||||
| 13 | 2605805004 | 8.35 | 10.10 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Sticker SHADOW SIDE | ||||
| 20 | 2601118184 | 2.08 | 2.52 | |
| Gear Housing | ||||
| 25 | 2605806407 | 27.81 | 33.65 | |
| Axle | ||||
| 27 | 2603120041 | 4.94 | 5.98 | |
| No longer available, no replacement | ||||
| 29 | 2606490054 | |||
| Brake Spring | ||||
| 32 | 2603001005 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 38/40 | 2603413031 | |||
| No longer available, no replacement | ||||
| 38/50 | 2603413032 | |||
| No longer available, no replacement | ||||
| 38/60 | 2600200036 | |||
| Countersunk-Head Screw TORX T25 | ||||
| 39 | 2603421223 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 40 | 2603239020 | |||
| Switch Slide | ||||
| 41 | 2603123020 | 1.49 | 1.80 | |
| Thread-forming tap. Screw | ||||
| 43 | 2603410049 | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 44 | 2916640006 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 46 | 2603123021 | |||
| Shim | ||||
| 47 | 2600101654 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 49 | 2604610029 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 50 | 2608040060 | |||
| No longer available, no replacement | ||||
| 51 | 2604610027 | |||
| No longer available, no replacement | ||||
| 52 | 2608001011 | |||
| Torx Oval-Head Screw | ||||
| 53 | 2603490023 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 54 | 2603490024 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 55 | 2600222002 | |||
| O-Ring | ||||
| 56 | 1900210000 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 57 | 2604448190 | 3.44 | 4.16 | |
| Contact Spring | ||||
| 58 | 2601329057 | 2.40 | 2.90 | |
| Spring Washer DIN 137-A 5-FST | ||||
| 59 | 2916061006 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 60 | 2604448162 | |||
| Connecting Cable | ||||
| 61 | 2604448034 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 62 | 2604448123 | |||
| Oval-Head Screw DIN 7985-M5x10-4.8 | ||||
| 63 | 2910641152 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 65 | 2607001151 | |||
| Clamping Strip | ||||
| 66 | 2604490012 | 2.40 | 2.90 | |
| Straight Pin | ||||
| 67 | 2609002714 | 1.49 | 1.80 | |
| Tab Washer | ||||
| 70 | 2601098019 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 701 | 1609200399 | |||
| Protective Glove | ||||
| 702 | 2607000134 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 753 | 2605411040 | |||
| No longer available, no replacement | ||||
| 754 | 2601398012 | |||
| No longer available, no replacement | ||||
| 765 | 2607001151 | |||
| No longer available, no replacement | ||||
| 801 | 2605104836 | |||
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| groove ball bearing | ||||
| 814 | 2600905039 | 11.37 | 13.76 | |
| No longer available, no replacement | ||||
| 816 | 2609992604 | |||
| No longer available, no replacement | ||||
| 816/04 | 2607014001 | |||
| Ratchet Cap | ||||
| 816/06 | 2601322013 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 828 | 2606490916 | |||
| Eccentric | ||||
| 836 | 2602210908 | 47.53 | 57.51 | |
| Set of knives 700 MM BLACK | ||||
| 838 | 2607001232 | 98.18 | 118.80 | |
| No longer available, no replacement | ||||
| 842 | 2605500132 | |||
| No longer available, no replacement | ||||
| 845 | 2601901003 | |||
| No longer available, no replacement | ||||
| 864 | 2602025107 | |||
