Here you will find all available parts and drawings of the 'Bosch 3600H47H04 (AHS63-26)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

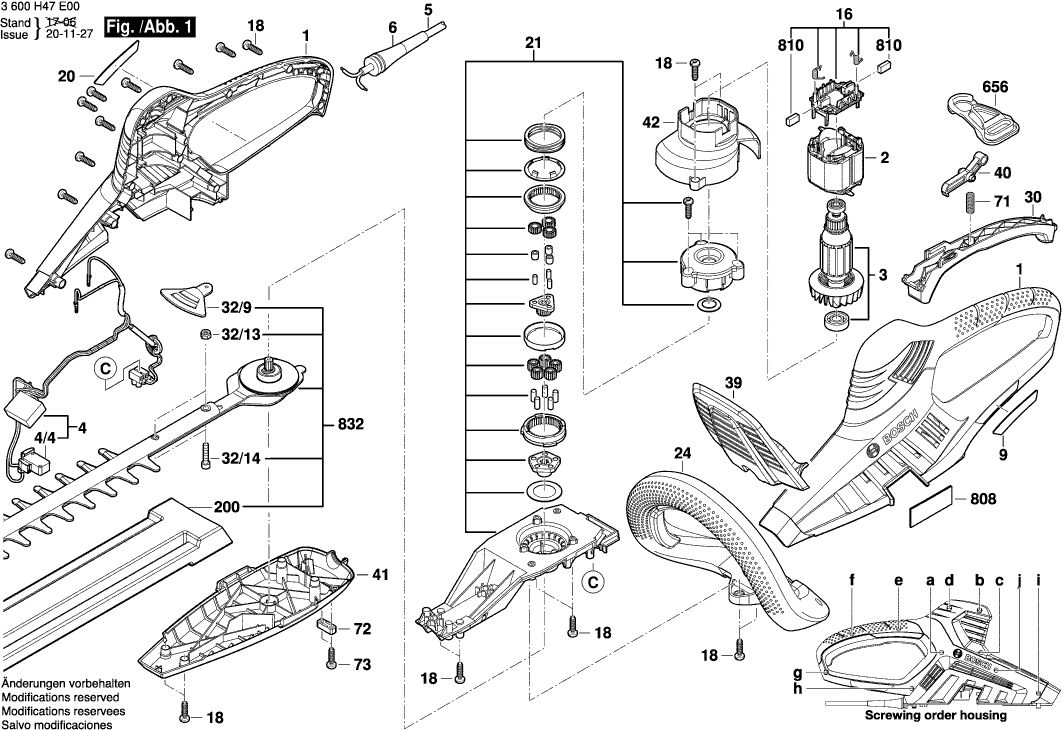

Technical drawing of model Bosch 3600H47H04 (AHS63-26)
Spare parts list of model Bosch 3600H47H04 (AHS63-26)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section TURQUOISE | ||||
| 1 | 2609004993 | 27.81 | 33.65 | |
| Field 220-240V | ||||
| 2 | 2609005073 | 16.79 | 20.32 | |
| Armature 220-240V | ||||
| 3 | 2609005074 | 39.14 | 47.36 | |
| No longer available, no replacement | ||||
| 4 | 2609005076 | |||
| No longer available, no replacement | ||||
| 4/4 | 2609006801 | |||
| Power supply cord EU 0,46m 2 x 1,0mm H05 VV-F | ||||
| 5 | 2604460182 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| Manufacturer's nameplate AHS 63-26 | ||||
| 9 | 161111C03F | 2.40 | 2.90 | |
| Manufacturer's nameplate AHS 60-26 | ||||
| 9 | 2609005909 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 16 | 2609005884 | |||
| Screw | ||||
| 18 | 2603490022 | 1.00 | 1.21 | |
| Warning Label | ||||
| 20 | 2609005882 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 21 | 2609005008 | |||
| Shim | ||||
| 21/10 | 2609005021 | 1.00 | 1.21 | |
| Shim | ||||
| 21/2 | 2609005018 | 1.00 | 1.21 | |
| Planetary-Gear Carrier | ||||
| 21/3 | 2609005019 | 3.71 | 4.49 | |
| Bolt | ||||
| 21/4 | 2609005020 | 1.00 | 1.21 | |
| Cylindrical Gear | ||||
| 21/5 | 2609005012 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 21/6 | 2609005016 | |||
| No longer available, no replacement | ||||
| 21/7 | 2609005017 | |||
| Needle-Roller Bearing | ||||
| 21/8 | 2609005318 | 1.32 | 1.60 | |
| No longer available, no replacement | ||||
| 21/9 | 2609005011 | |||
| No longer available, no replacement | ||||
| 24 | 2609005132 | |||
| Switch Segment | ||||
| 30 | 2609005006 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 32/13 | 160030010C | |||
| Torx Oval-Head Screw | ||||
| 32/14 | 2609005695 | 1.00 | 1.21 | |
| Protector | ||||
| 32/9 | 2609005045 | 2.86 | 3.46 | |
| Guard Segment | ||||
| 39 | 2609005047 | 4.94 | 5.98 | |
| Lever | ||||
| 40 | 2609005007 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 41 | 2609004994 | |||
| Fan Housing | ||||
| 42 | 2609004996 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 71 | 2604610028 | 1.49 | 1.80 | |
| Cable Clip | ||||
| 72 | 2601035001 | 1.49 | 1.80 | |
| Screw | ||||
| 73 | 2603490022 | 1.00 | 1.21 | |
| Knife Guard | ||||
| 200 | 2609005514 | 13.13 | 15.89 | |
| Nameplate | ||||
| 808 | 160111A4DK | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 810 | 1607000CE3 | |||
| Blade 60 cm | ||||
| 832 | 1600A0071P | 88.83 | 107.48 | |
